Features:
1. Reliable optical cable fixing device.
2. Standard 19 inch installation.
3. The splice tray can be flexibly expanded to meet the splicing of multi-core fiber optic cables.
4. Rotating structure, saving space and convenient operation.
5. Adapters are installed in angle to avoid direct laser beam.
6. High density ODF.
7. Clear fiber marking on the tray cover and adapter panel.
Specifications:
|
Model |
FSP-S5-96A |
|
Size |

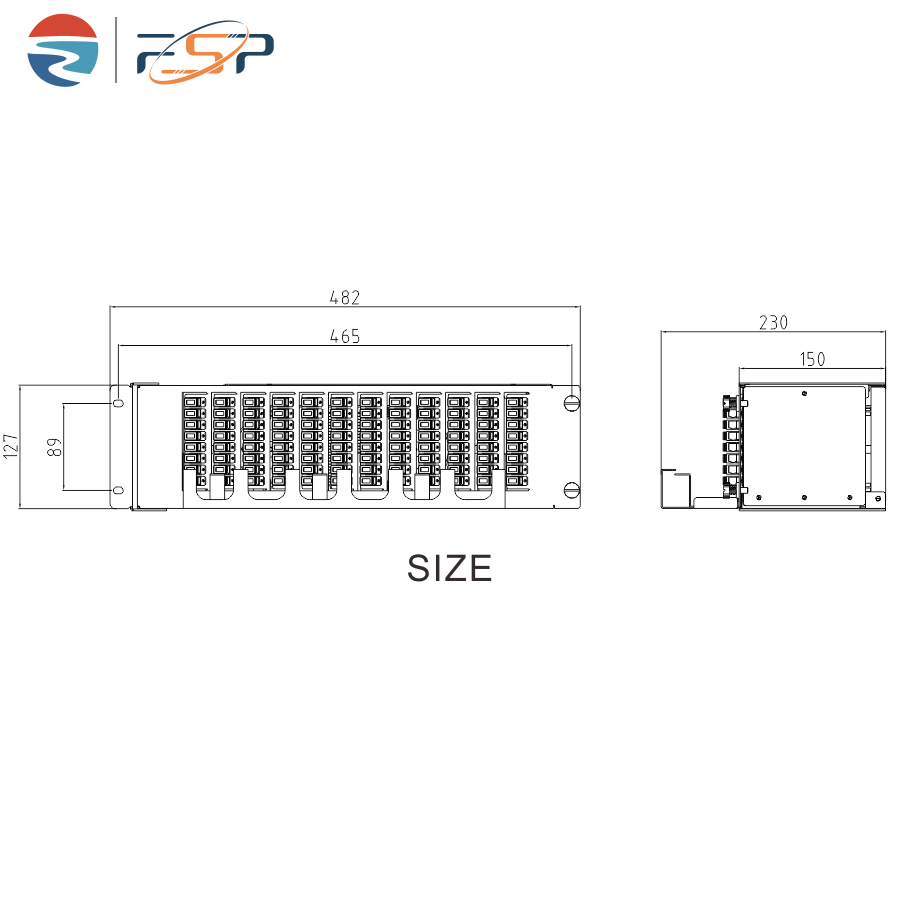

H×W×D = 127×482×230 (MM) |
|
Material |
Cold Rolled Steel |
|
Color |
Gray (Default RAL 7035) / Black / White |
|
Splice Capacity |
96 Cores |
|
Adapter Type |
SC |
|
Adaptor Capacity |
96 Ports |
|
Installation Method |
Standard 19" Rack Mount |
