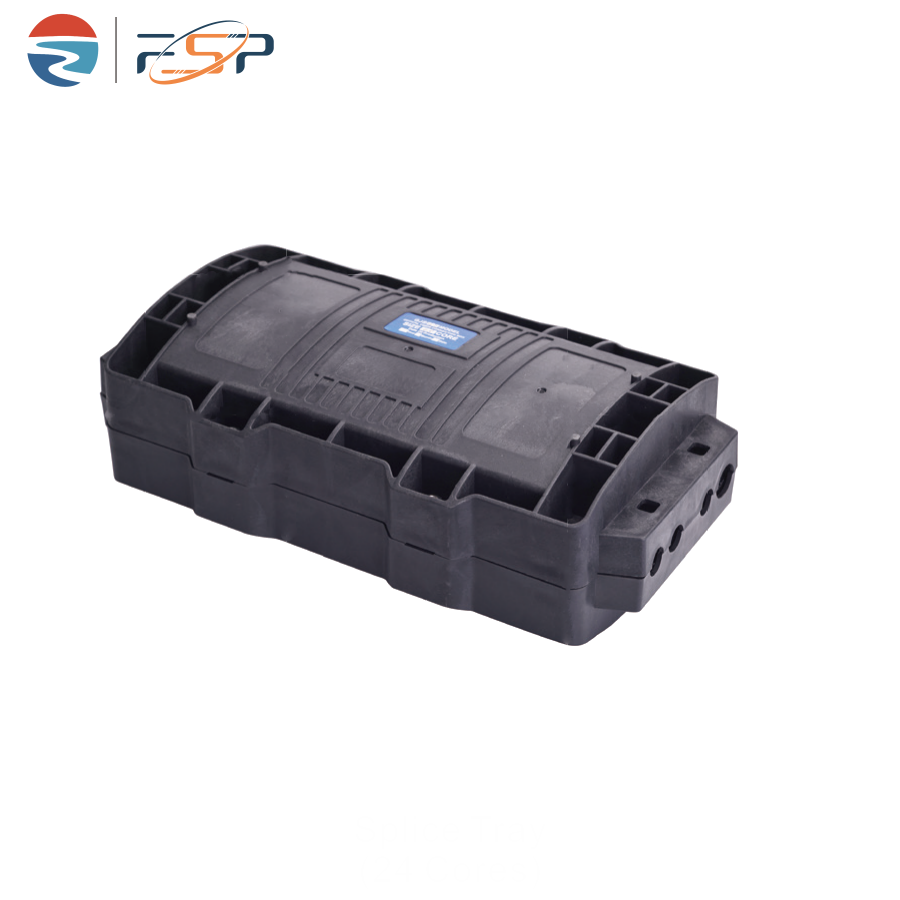

1. Description:
FSP-CH-11 Half Type Fiber Optic Splice Closure (FOSC) is is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
2. Specification:
|
Model |
FSP-CH-11 |
|
Type |
Half type |
|
Outside dimension (LxWxH) |
340mm×180mm×110mm |
|
Weight (excluding outside box) |
1900-2300g |
|
Number of inlet/outlet ports |
4 (pieces) on each side (total 8 pieces) |
|
Diameter of fiber cable |
6 for φ6-8mm cables, 2 for φ9-12mm cables |
|
Capacity of FOSC |
Bunchy:12-48 cores Ribbon:up to 144(cores) |
|
Assembling method |
Aerial, direct buried, pipelined, manhole |
|
IP Grade |
IP68 |
|
Temperature |
-40℃~65℃ |
3. The process of installing FOSC
3.1 Tools for Installation
|
1 |
Pipe cutter |
|
2 |
Crossing/Paralleling screwdriver |
|
3 |
Wrench |
|
4 |
Band tape |
|
5 |
Electrical cutter |
|
6 |
Stripper |
3.2 The operation of cable stripping：
3.2.1 Mark the stripping point on the cable according to different length.
3.2.2 Use the special tools (such as the cable stripper) to strip the outer cable and fiber loose-tube.
3.2.3 The stripping requirement of split cable ：（ 1 ） the length of the stripping cable should not less than 1000mm；（2）strip the fiber loose-tube at the distance about 30mm of stripping point ；（3） cut the steel core at the distance about 50mm of stripping point；
Precaution：① please operate carefully so as not to damage the fiber optic.② do not use the damaged fiber optic.
3.3 The operation of opening the box：loosen the screw, take the box cover；remove the box and press bucket：
3.4 The operation of branch fiber cable：
3.4.1 put the fiber cable (cut cable) on the press button of the holder to fix the steel core；
3.4.2 tighten the hose clamp to fix the cable；Precaution：when the cable diameter is less than 9mm, let the cable go through the small hose clamp and tighten it.When the cable diameter is more than≥9mm，let the cable go through the large hose clamp and tighten it.
3.5.1 put the holder to the bottom of the box；
3.5.2 put the part which twined with vulcanizing adhesive tape to the cable chock of the sealing ring；
3.5.3 put the hook to the groove of the bottom , tighten the screw when overhead aerial mounting；
3.6.when repacking to the box, make sure that the cable core of the sealing trip is approximately to the cable axis；
3.7.When fasten box, should tighten screws successively and balanced.

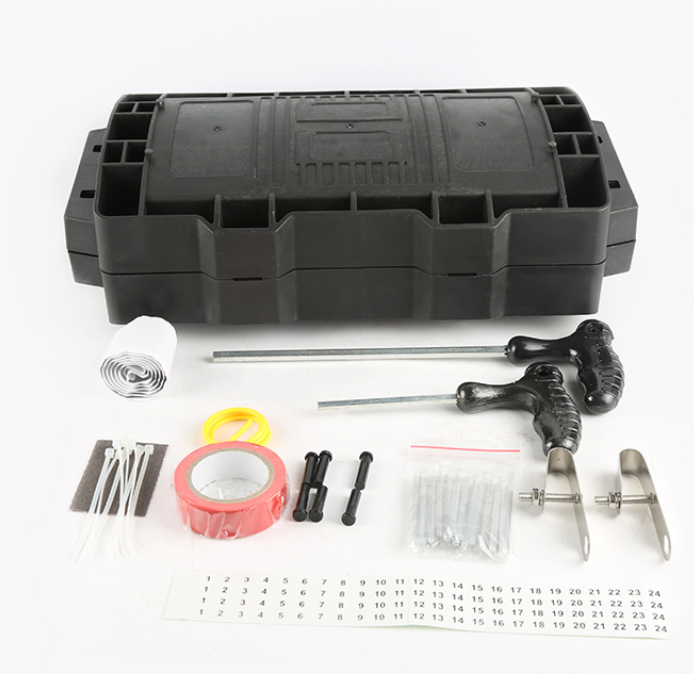

4. Accessories map:
