1、Description：

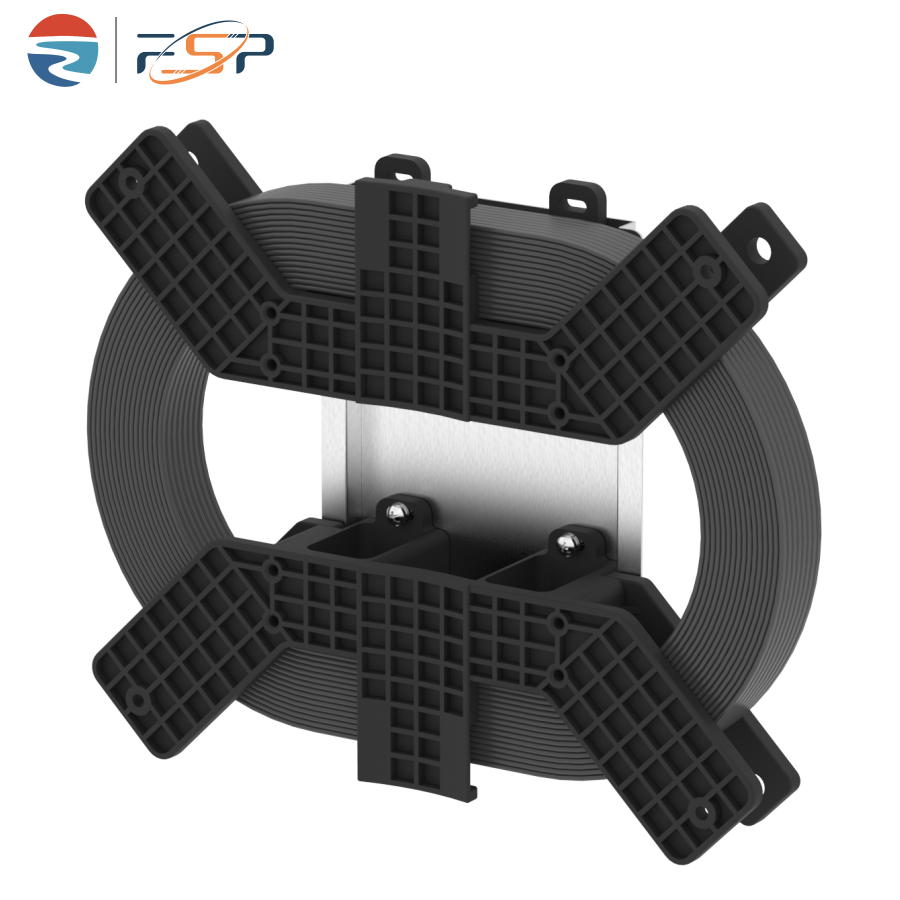

FSP-P-CS-1 Cable Storage is used for transmission along the telecommunication network system. The drop cable is stored in this fixture and provides protection for the FTTx network building.
2、Specification：
1) Anti-UV (Ultraviolet).
2) Suitable for storing various types of optical cables.
3) Adjustable storage capacity.
4) Wall-mounted & Pole-mounted.
3、Applications:
1) FTTH Access Network
2) Telecommunication Network
3) CATV Networks
4) Local Area Networks
4、Configuration Table：
|
Model |
FSP-P-CS-1 |
|
Material |
HDPE + Stainless Steel |
|
Color |
Black(Default) |
|
Installation Method |
Wall /Pole-mounted |
|

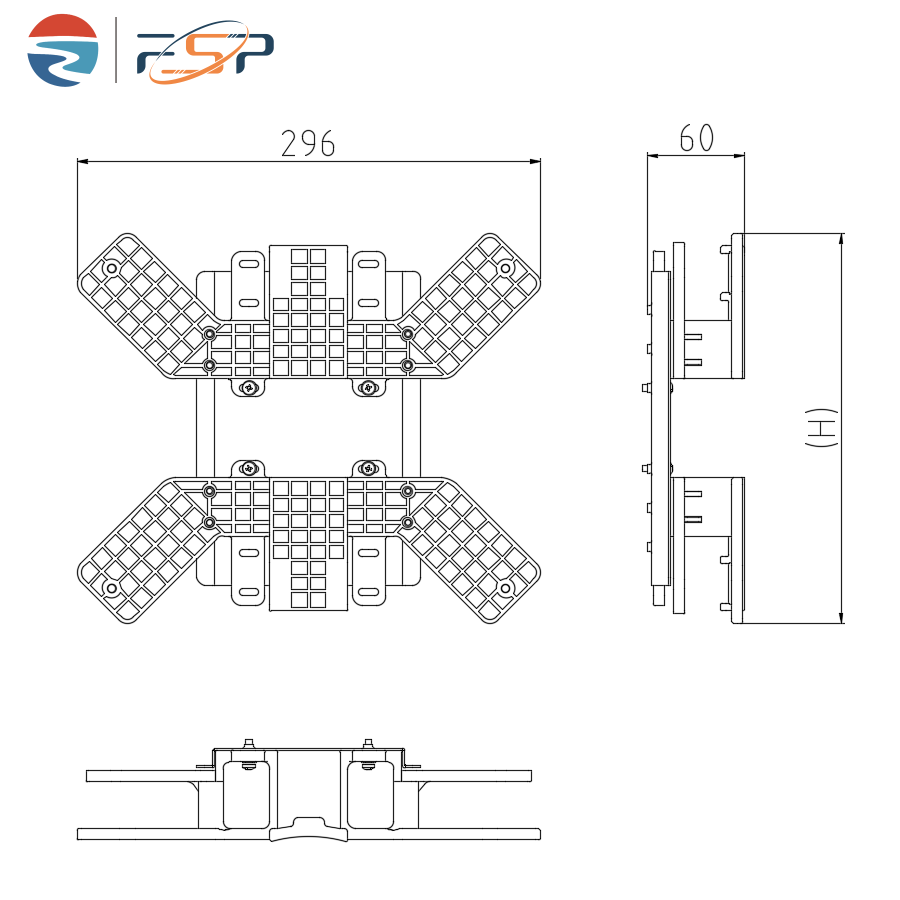

Size (Pic1) |
H×W×D =H×296×60 (MM) |
|

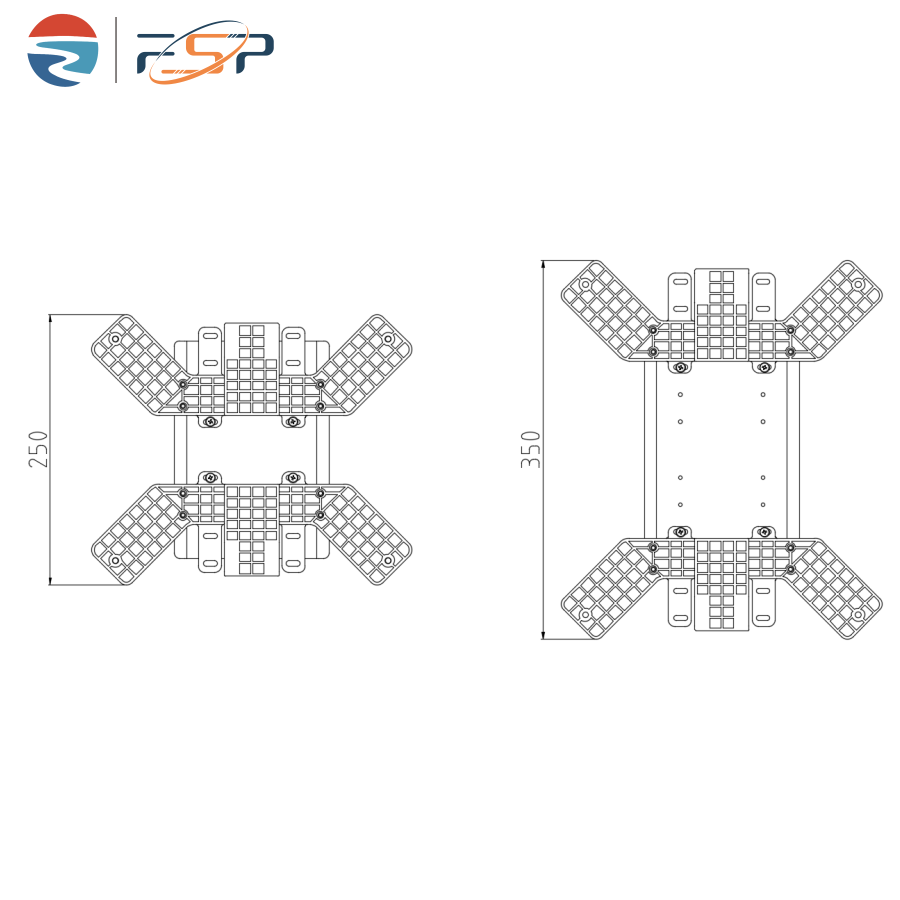

Height adjustable range |
H =250 ~350 (MM) |
5、Installation：

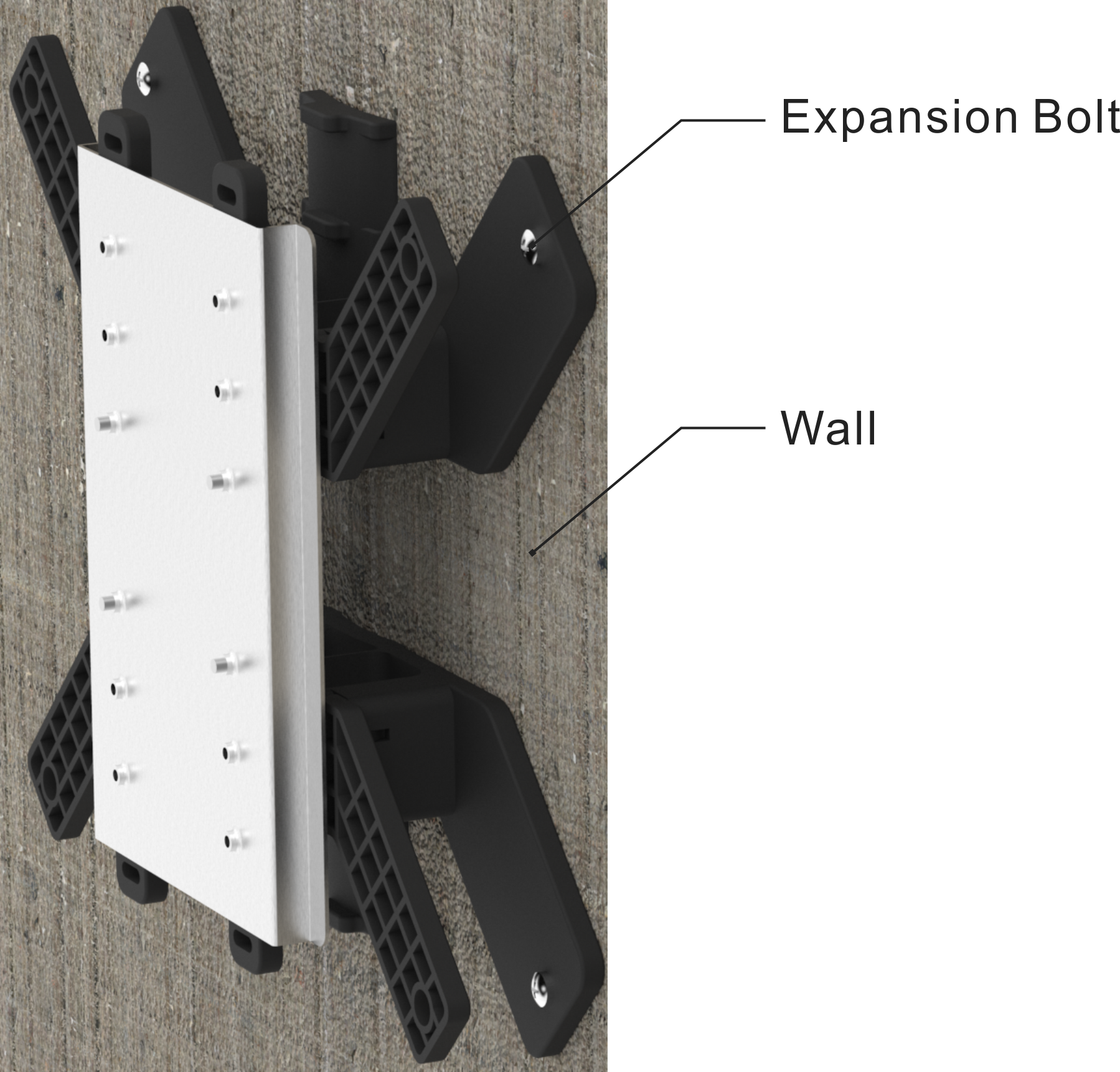

5.1 Wall-mounted installation
Drill 4 holes in the wall according to the installation size，place the expansion bolt，place the box to match up the holes and use bolt to fasten (Pic 3) .
5.2 Pole-mounted installation
Fix 1 set of the hose clamps to the telecom pole . (Pic 4)
