Description:

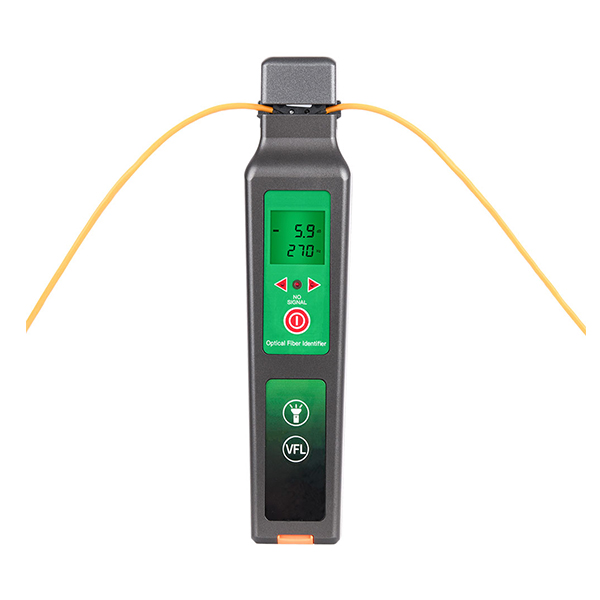

MAY42 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative power without any damages to the bending fiber. When the traffic is present, the intermittently audible tone is activated.
MAY42 Optical Fiber Identifier can also recognize the modulation of 270Hz,1kHz and 2kHz. When they are used to detect the frequency, the continuously audible tone is activated.
The housing of MAY42 Optical Fiber Identifier is made of ABS plastics.
Features:
l VFL included
l Lower power indication
l Displays the optical power
l Suitable for both SM and MM fibers

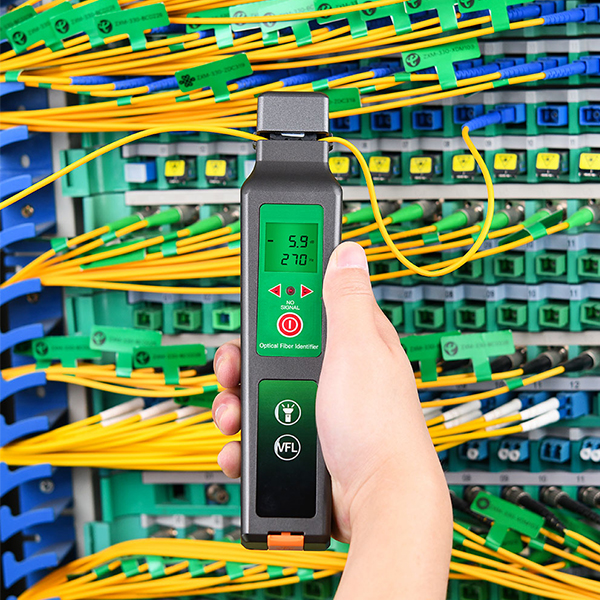

l Online testing without interruption of service
l Easy-to-use with “ONE KEY” operation.
l No need to replace adapters when testing 250um bare fiber, 900um, 2MM and 3MM cables
l Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
Specification:
|
Recognizable Wavelength Range |
800 to 1700nm |
|
Recognizable Signal Type |
CW, 2kHz, 1kHz, 270Hz±5% |
|
Detector Type |
Ø1mm InGaAs 2pcs |
|
Clamp Type |
Universal adapter for 250um bare fiber, 900um cable, 2.0mm cable, and 3.0mm cable |
|
Signal Direction |
Left & right LED |
|
Signal Direction Test Range |
-40~10dBm |
|
Signal Frequency Display |
270Hz, 1kHz, 2kHz |
|
Alkaline Battery |
2pcs*AA dry batteries |
|
Operating Temperature |
-10 to +60℃ |
|
Storage Temperature |
-25 to +70℃ |
|
Dimension |
218*42*52mm (including the trigger), 218*42*29mm (trigger not included) |
|
Net Weight |
138g (battery not included) |
|
Packing for Inner Box |
300g, 25*10*6cm |

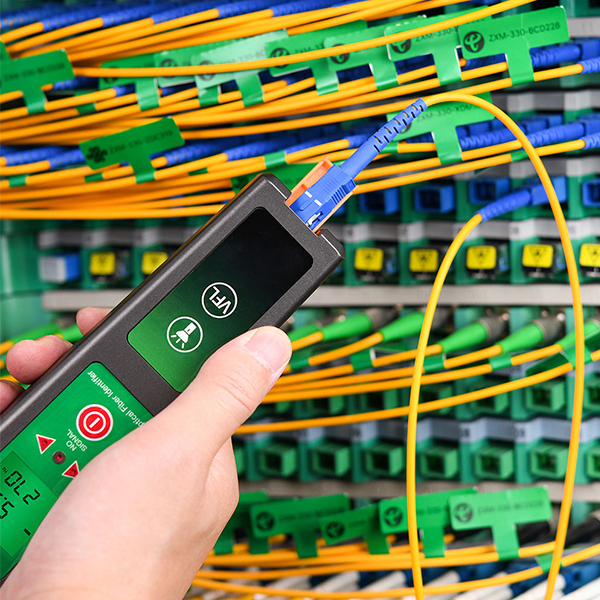

Visual Fault Locator:
|
Wavelength |
650nm |
|
Power |
≥1mW |
|
Testing Distance |
3~5km |
|
Laser Type |
LD |
|
LED Light |
support |
|
Connector |

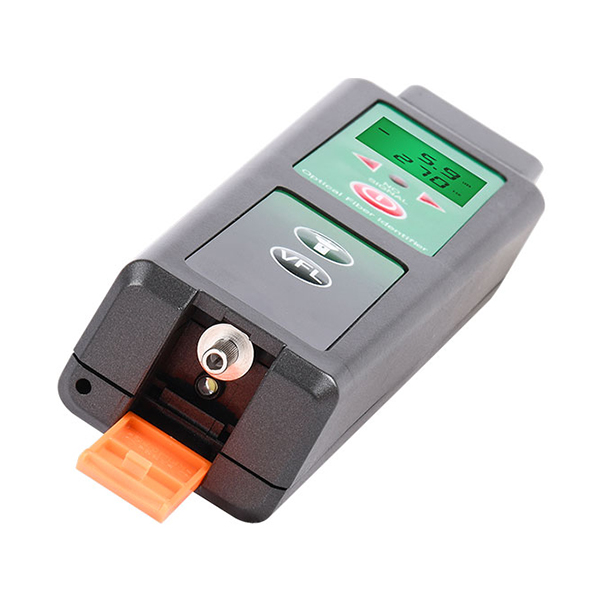

Universal 2.5mm (FC/SC/ST) |

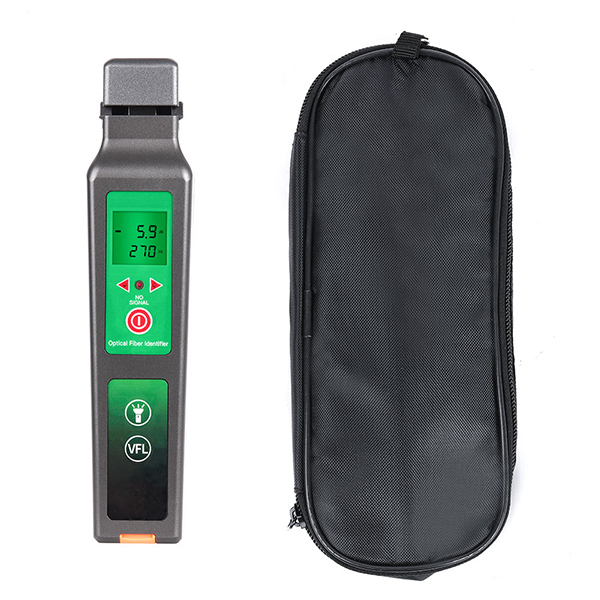

Standard Accessory:
|
Item |
Name |
Quantity |
|
1 |
MAY42 Optical Fiber Identifier with Universal Adapter |
1pc |
|
2 |
AA alkaline battery |
2pcs |
|
3 |
Soft Bag |
1pc |
|
4 |
Warranty Card |
1pc |
|
5 |
User Manual |
1pc |
