The High Precision OTDR is a Professtional Equipment For FTTx & Metro Optical network Systems.
As fiber optics plays more and more important role in modern telecommunication and CATV networks, the requirements to the construction, test and maintenance of fiber optics links also become more prominent. MAY402 OTDR is a unique product mainly designed for construction and maintenance of telecommunication and CATV networks. MAY402 OTDR can be widely used in engineering construction, maintenance test and emergency repair of all fiber optics related systems. Comparing with a regular OTDR, MAY402 OTDR is more compact in size and easier for field use.
MAY402 OTDR handheld design, compact and lightweight, easy to carry. Event information through IPS color dispaly and data storage capabilities. Through the USB interface, the test data can be uploaded to the PC, to facilitate the post-processing, archiving and printing.
Features:
l High precision
l Integrated design, smart and rugged
l Shockproof, outdoor enhanced
l FC/ST/SC/LC Connectors exchangeable
l Automatic and manual test function
l OTDR Viewer software for data analysis
Applications:
l CATV network testing
l Access network testing
l LAN network testing
l Lab and Factory testing
l Live fiber troubleshooting
l FTTA troubleshooting

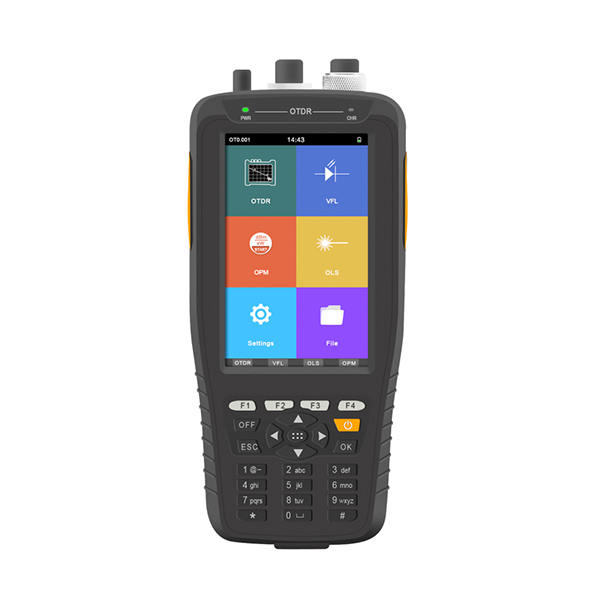

Multi-functions:

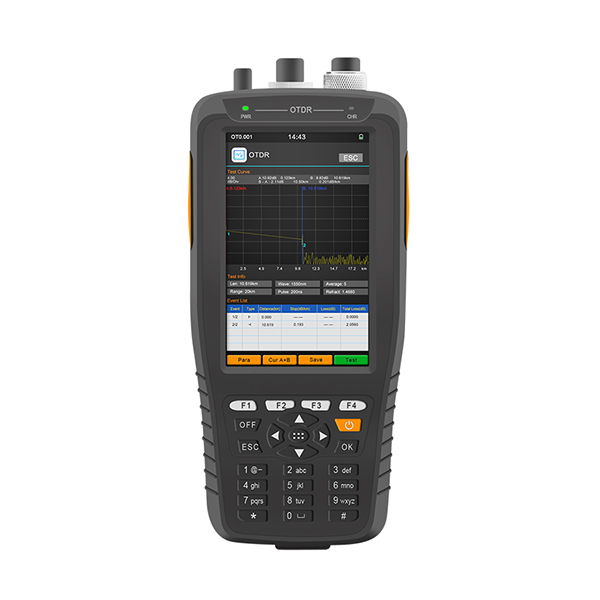

1. OTDR
2. Optical Power Meter (OPM)
3. Optical Light Source (OLS)
4. Visual Fault Locator (VFL)

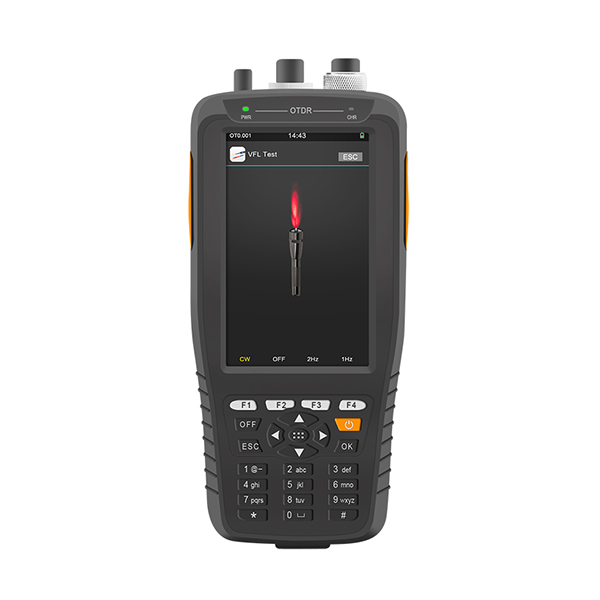

Visual Fault Locator uses red laser of 650nm to locate broken fiber point and test fiber continuity.
5. Report Print
PC software helps print out OTDR test reports.
Specification:
1. OTDR
|
Model |
MAY402-D22 |
MAY402-D24 |
|
Wavelength |
1310/1550nm |
|
|
Dynamic Range |
22/20dB |
24/22dB |
|
Distance Range |
3m to 60km |
|
|
Fiber Type |
SMF |
|
|
Samping Points |
Maximum 65K |
|
|
Linearity |
≤0.05dB/dB |
|
|
Averaging Time |
5s, 15s, 30s, 1min, 2min, 3min |
|
|
Auto Off |
Off/on |
|
|
Ranging Accuracy |
±(1m+measuring distance×2×10-4+sampling resolution) (excluding IOR uncertainty) |
|
|
Screen Backlight |
≤99 |
|
|
IOR Setting |
1.0000~2.0000 |
|
|
Units |
Meter, Feet, Mile |
|
|
OTDR Trace Format |
Telcordia universal, SOR, issue 2 (SR-4731) OTDR: User selectable automatic or manual |
|
|
Laser Peak |
≥30mW |
|
|
Event Dead Zone |
2m |
|
|
Attenuation Dead Zone |
12m |
|
|
Adapter |
FC/UPC (Interchangeable SC, ST adapter) |
|
|
Language |
English |
|

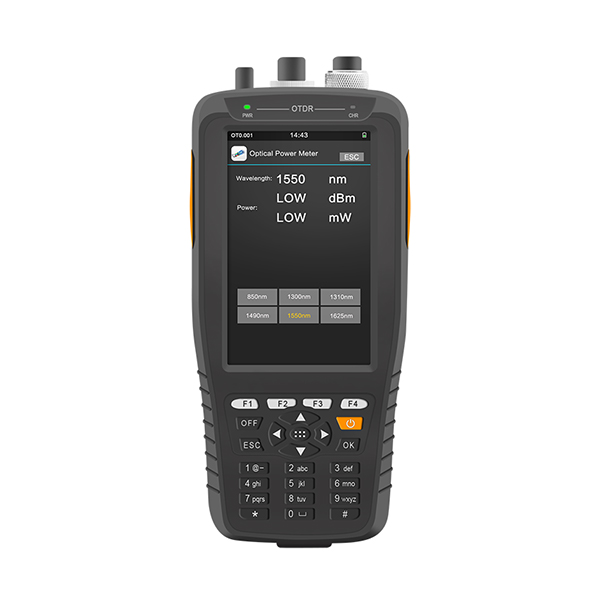

2. Optical Power Meter
|
Wavelength Range (±20nm) |
800~1650nm |
|
Calibrated Wavelength |
850/1300/1310/1490/1550/1625nm |
|
Detector |
InGaAs |
|
Test Range |
-70~+10dBm |
|
Accuracy |
<±3% (-10dBm, 22°C) |
|
Resolution |
Linearity: 0.1%, Non-linearity: 0.01dBm |
|
Connector |
FC (Interchangeable SC, ST adapter) |
3. Optical Light Source
|
Emitter Type |
FP-LD |
|
Working Wavelength |
1310/1550nm±20nm |
|
Output Power |
≥-5dBm |
|
Modulation Frequency |
CW/270/1k/2kHz |
|
Accuracy |
±0.04 @ 20°C @15min |
|
Fiber Type |
SMF |
|
Connector |
FC/UPC (Interchangeable SC, ST adapter) |
Note:
3.1. The wavelength of Optical Light Source is the same as OTDR wavelength.
3.2. Optical Light Source shares the same fiber port as OTDR port.
4. Visual Fault Locator
|
Wavelength (±20nm) |
650nm |
|
Power |
10mW CLASS IIB (15km) |
|
Mode |
CW/1Hz/2Hz |
|
Fiber Type |
SM/MM |
|
Connector |
Universal 2.5mm (FC/SC/ST) |
Other Specification:
|
Display |
IPS Touch Screen, 800×400px, 4 inch |
|
Power Supply |
7.4V/4400mAH(dc), 100V(ac) to 240V(ac), 50~60Hz; Lithium battery: 8.4V 4400mAh |
|
Battery Working Hours |
≥8h, Telcordia GR-196-Core |
|
Interface |

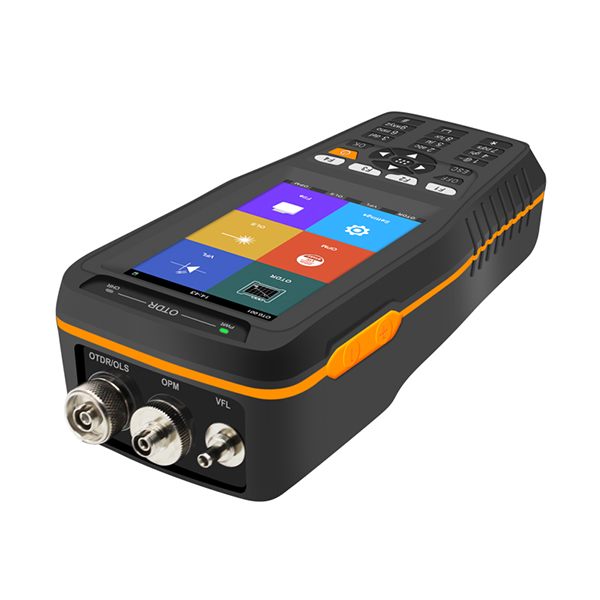

1×USB, 1×OTDR port, 1×VFL port, 1×Power Meter Port, 1×Charging Port |
|
Power Saving |
Backlight off, Auto shutdown |
|
Data Storage |
Internal: 100 curves |
|
Weight |
0.3kg |
|
Size |
190*84*52mm |
|
Operating Temperature |
-10 ~ +50°C |
|
Storage Temperature |
-20 ~ +70°C |
|
Relative Humidity |
< 95% Non-condensation |
|
Packing |
Gross weight: about 0.95kg, size: 23*16*8cm |
Standard Accessories:
|
Item |
Name |
Quantity |
|
1 |
OTDR with FC Adapters |
1pc |
|
2 |
AC/DC power adapter |
1pc |
|
3 |
CD (including simulation analysis software) |
1pc |
|
4 |
SC adapter for OTDR port |
1pc |
|
5 |
SC adapter for OPM port |
1pc |
|
6 |
User manual |
1pc |
|
7 |
Test Report |
1pc |
|
8 |
Soft bag |
1pc |
Optional Accessories:
|
Item |
Name |
Quantity |
|
1 |
ST Adapter for OTDR port |
1pc |
|
2 |
ST Adapter for OPM port |
1pc |
Ordering Information:
|
Model |
MAY402 |
|
Wavelength and Dynamic Range |
D22: 1310/1550nm, 22/20dB D24: 1310/1550nm, 24/22dB |
|
Connector |
None: FC/UPC and SC/UPC (default) A: FC/APC and SC/APC |
