1、Description：
FSP-PD-7 Pedestal is used to protect and install the terminal point in telecommunication network system. The fiber splicing, splitting, distribution can be done in the terminal point, and meanwhile it provides protection and management for the FTTx network building.
2、Specification：
1) Anti-UV (Ultraviolet)
High resistance to sunlight degradation, suitable for harsh outdoor environments.

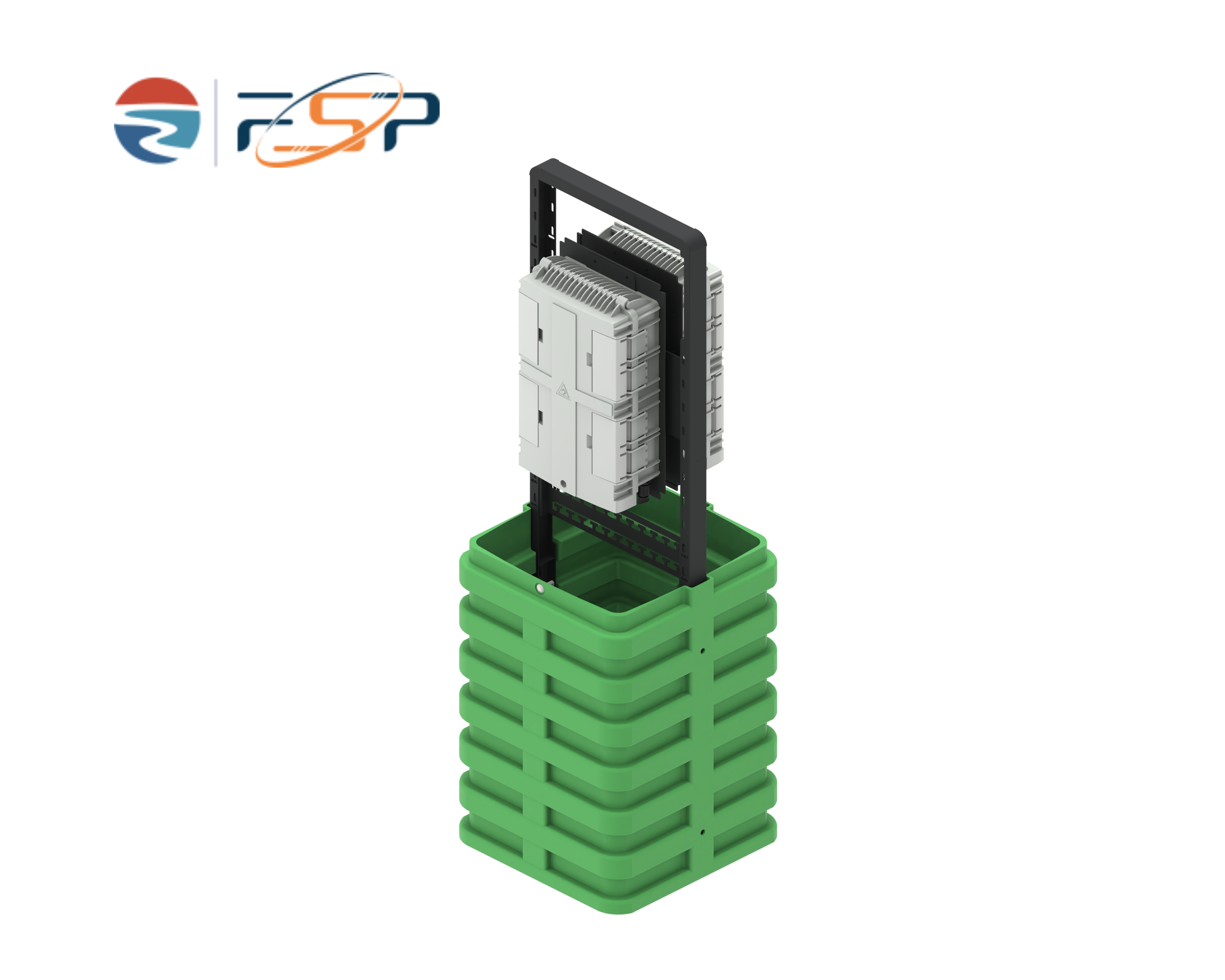

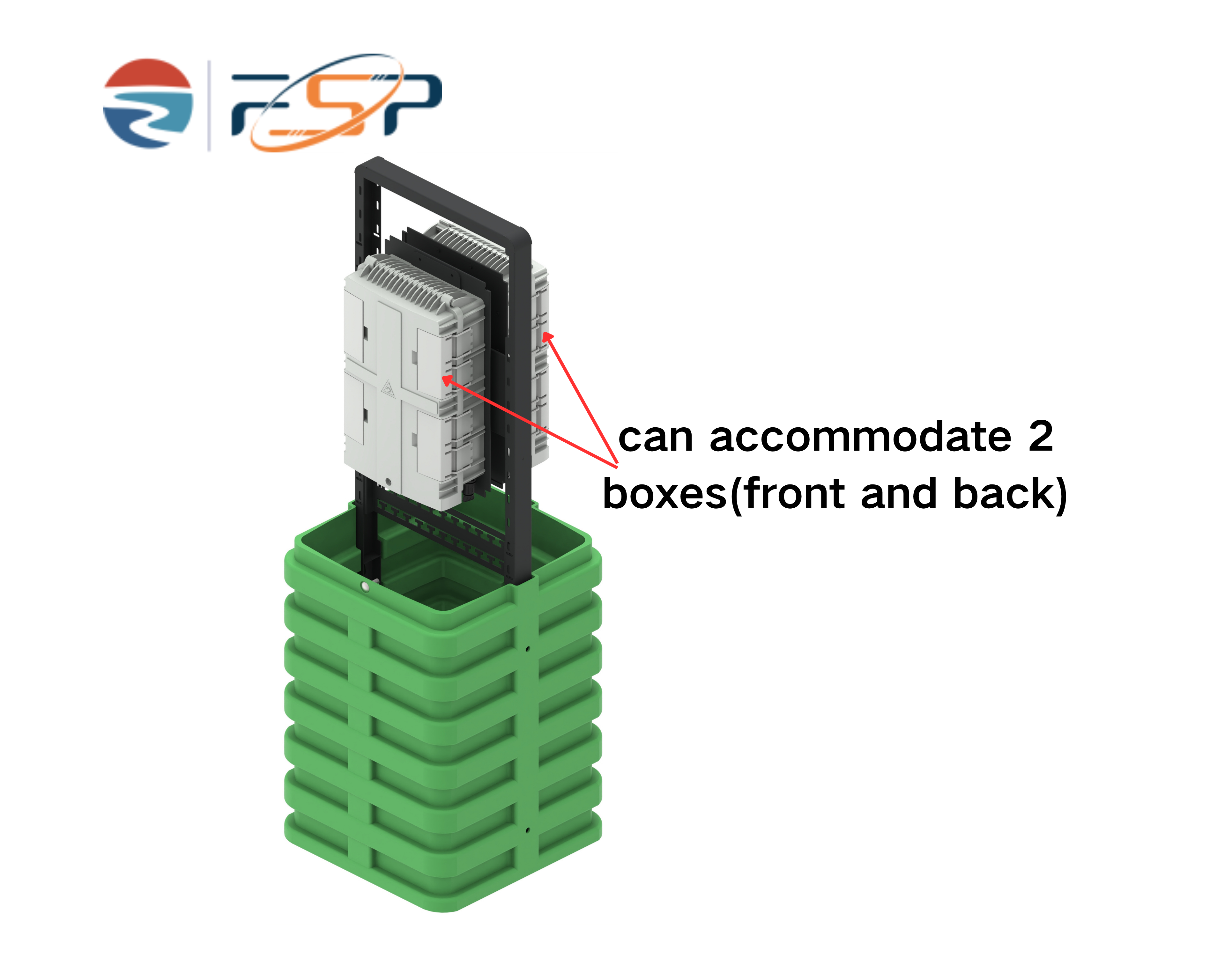

2) Accommodate 2 Optical Distribution Boxes
One pedestal can accommodate 2 optical distribution boxes.

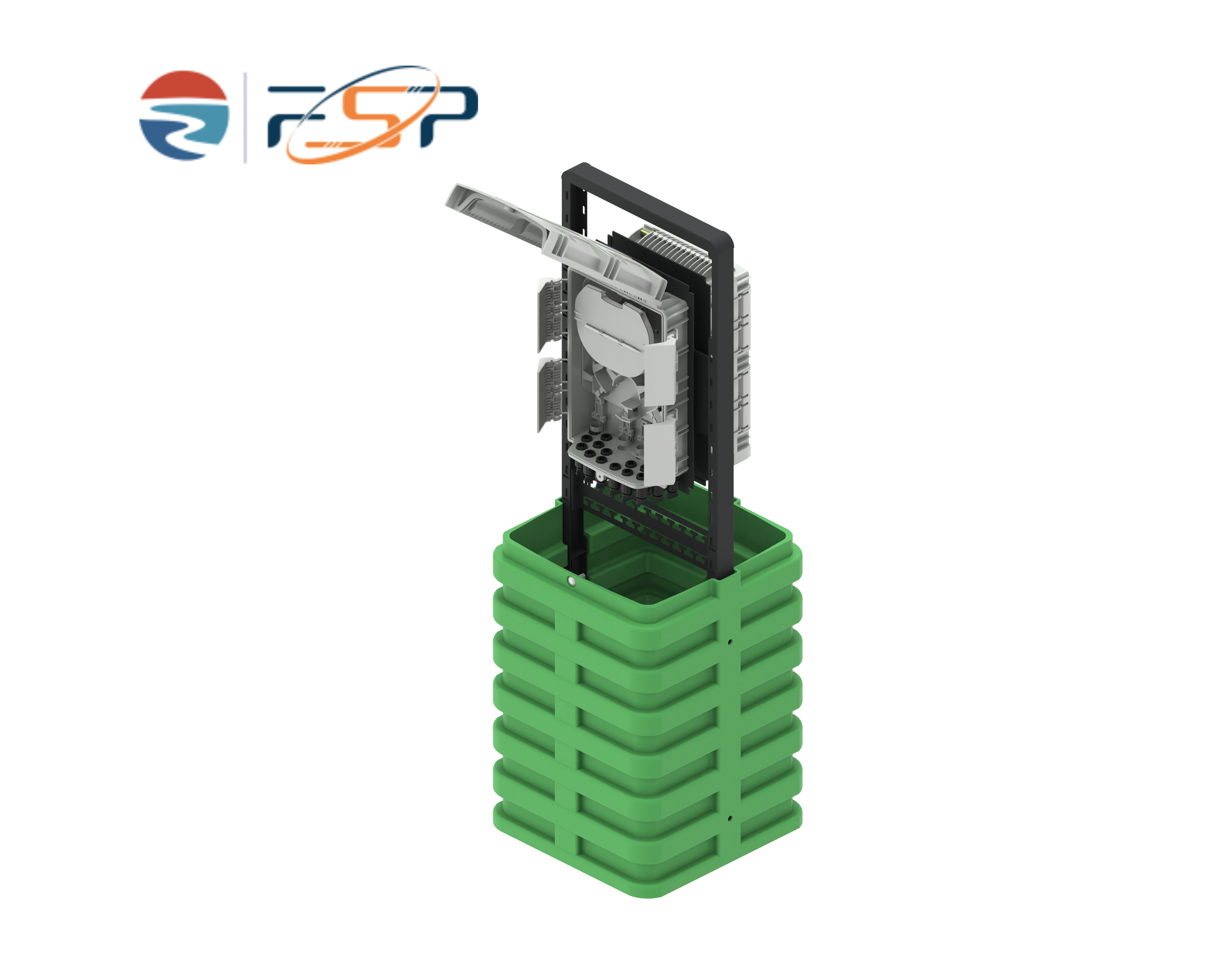

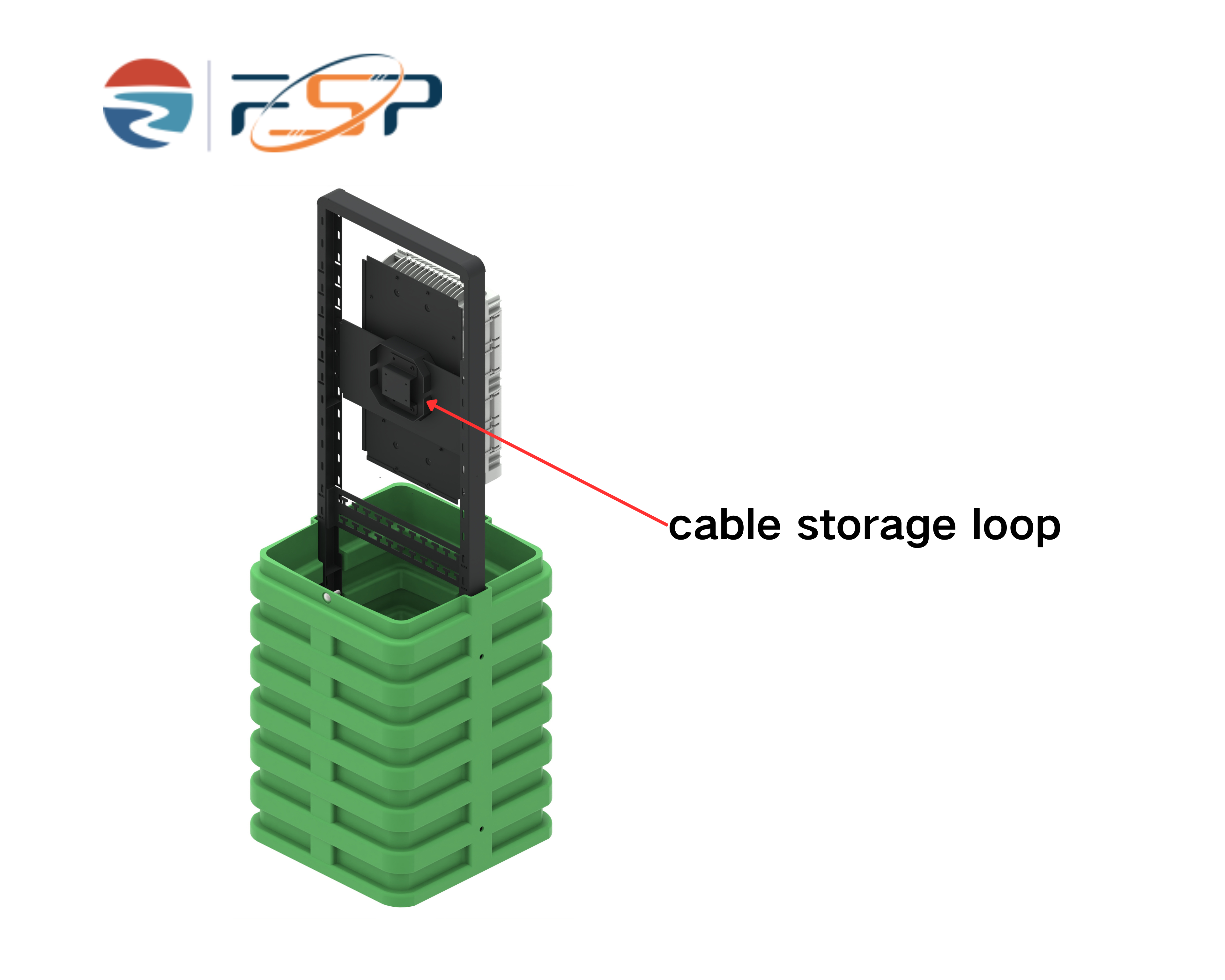

3) Integrated Cable Management
Equipped with a splice cassette and an advanced cable routing system for organized fiber management.

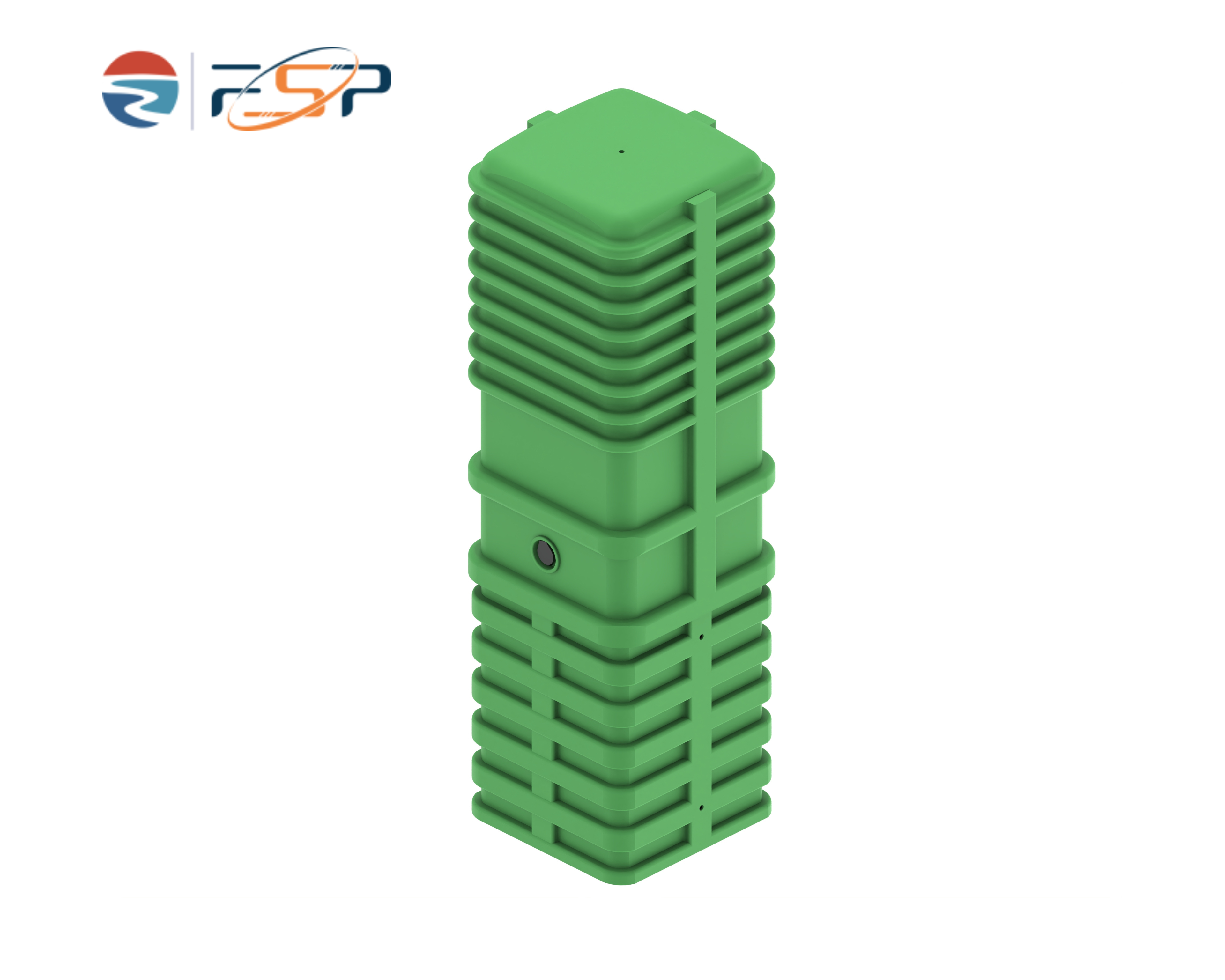

4) Durable PE Dome Housing
Offers excellent mechanical protection and a long lifespan .
5) Stainless Steel Internal Rack
The heavy-duty stainless steel mounting bracket provides perfect anti-rust, anti-corrosion performance and superior structural
support.
6) Ground-Mounted Design
Specifically designed for outdoor ground-level installation (Direct burial/Stake mounting).
7) Protection Grade
IP55 rated, ensuring excellent dust and water resistance.
3、Applications
1) FTTH Access Network
2) Telecommunication Network
3) CATV Networks
4) Data Communications Network
5) Local Area Networks
6) Ground-mounted
4、Configuration Table：
Model | FSP-PD-7 |
Size (H×D <mm>) Pic 1 | 1192×374 |
Material | PE |
Color | Green |
Table 1 Model and configuration

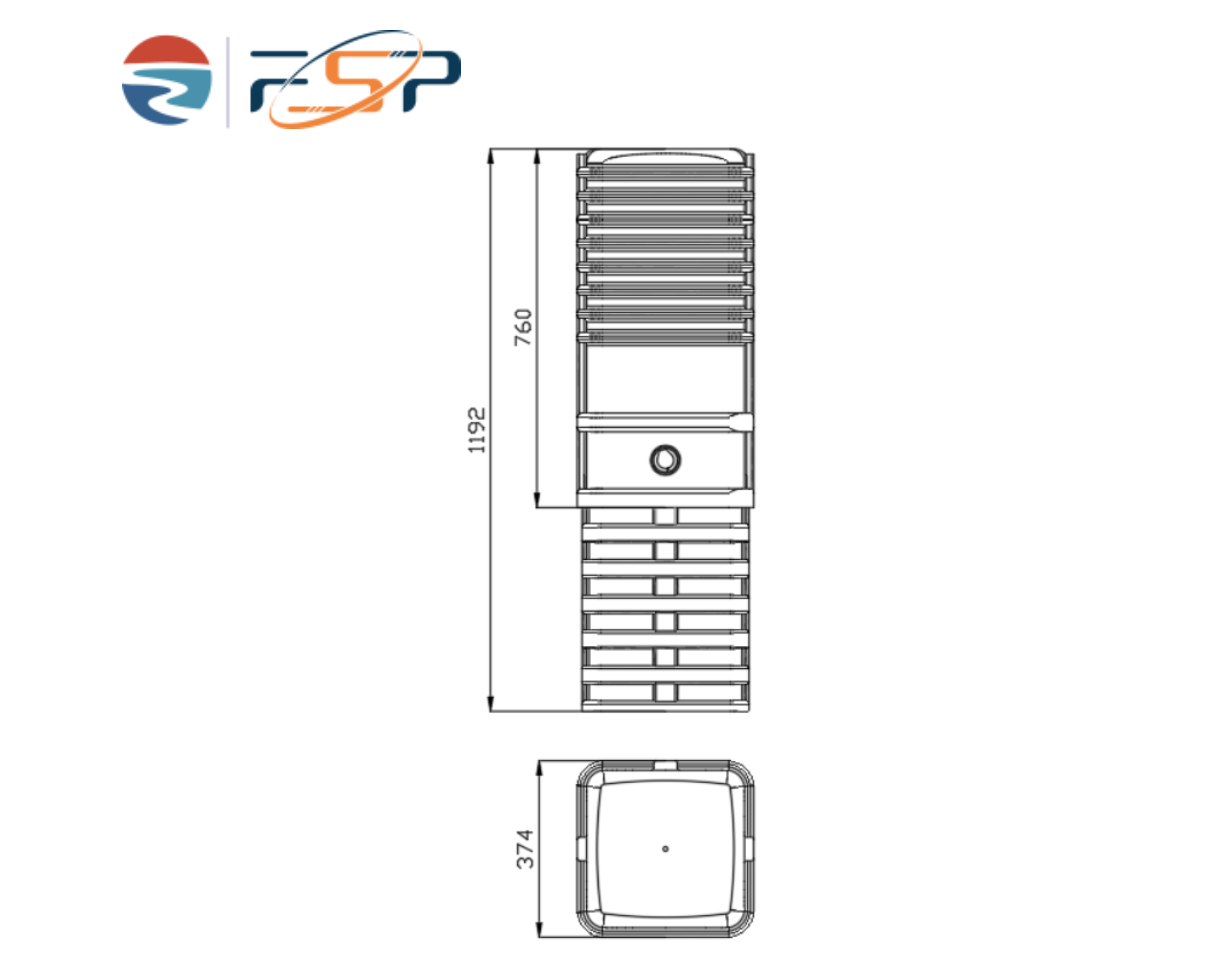

Pic 1 (Unit mm)
5、Installation：

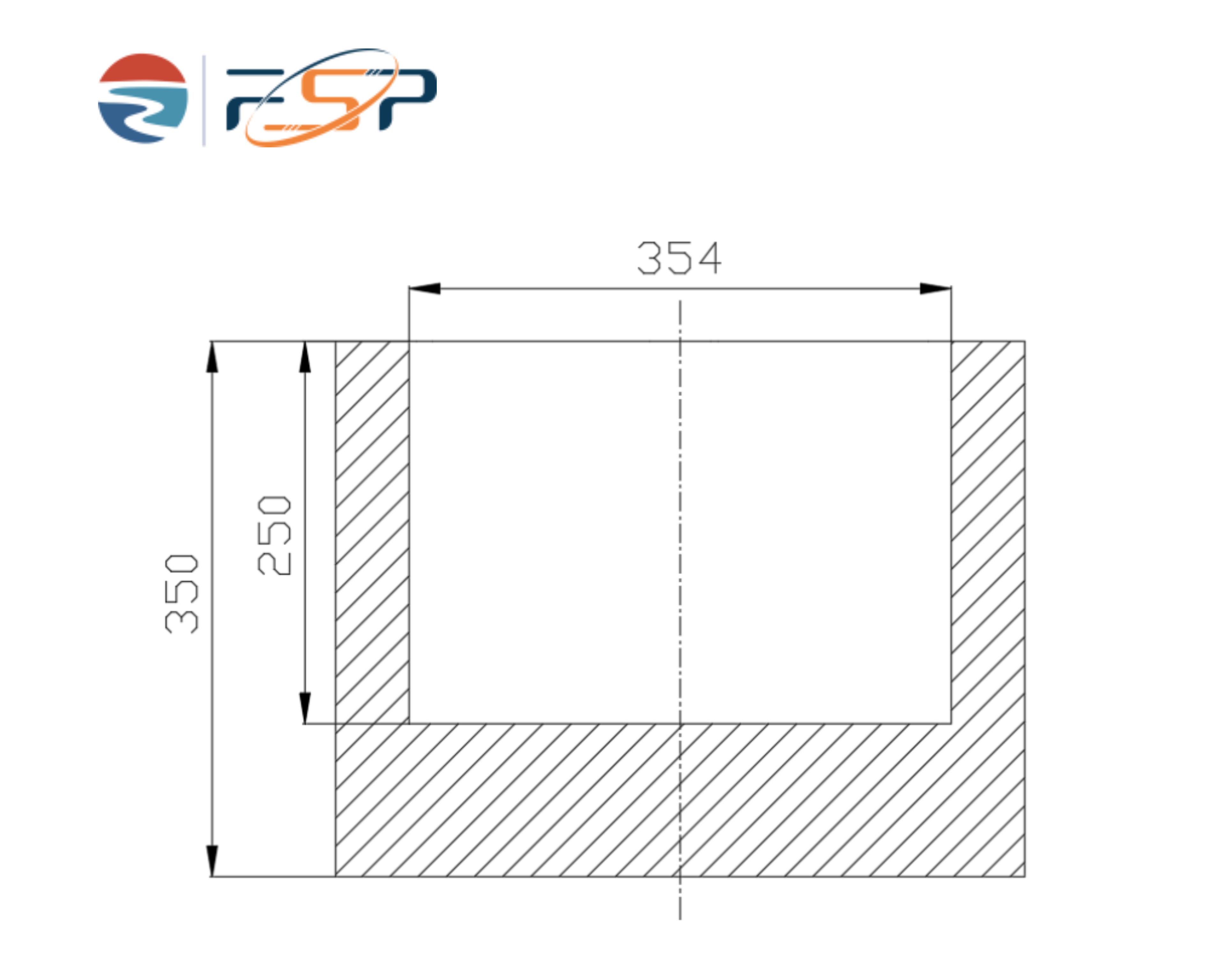

1) Make foundation holes on the ground concrete according to the size of the below picture(Pic 2)
Pic 2 (Unit mm)

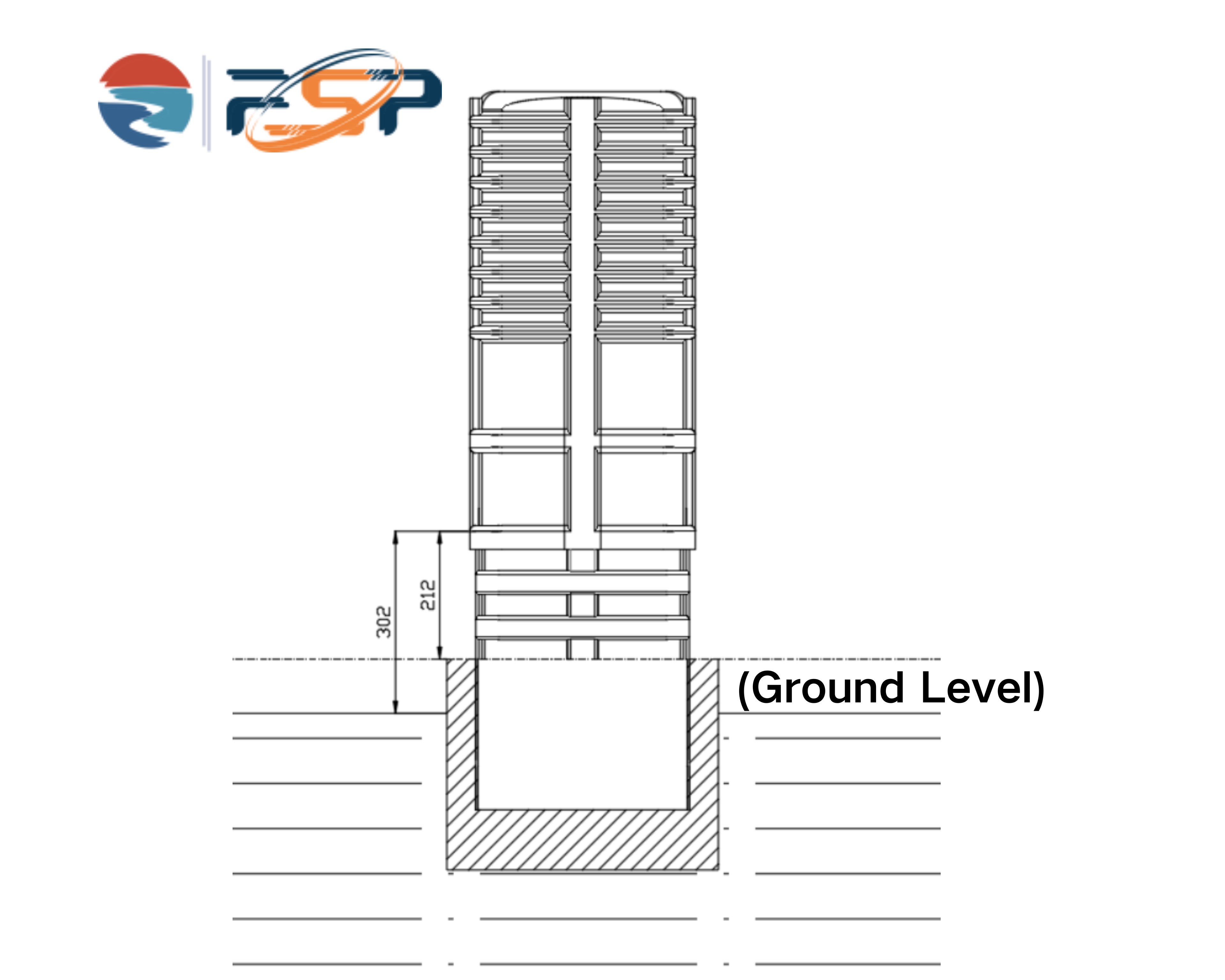

2) Pour the bucket with concrete on the ground（Pic 3）
Pic 3 (Unit mm)
