FSP-MCA-1 12F MPO/MTP CASSETTE details
FSP-MCA-1 12F MPO/MTP CASSETTE
1、Description：
The FSP-MCA-1 module cassettes are mainly used to divide the 12 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cords, the output of the modules can be directly connected with the equipment, frame or the client end.
2、Features：
1) Adopts high quality engineering plastics.
2) Quick and easy installed,flexible in configuration and easy to management.
3、Specifications：
| MTP/MPO Cassette | |
| MODEL | FSP-MCA-1 |
| Fiber Count | 12 Fibers |

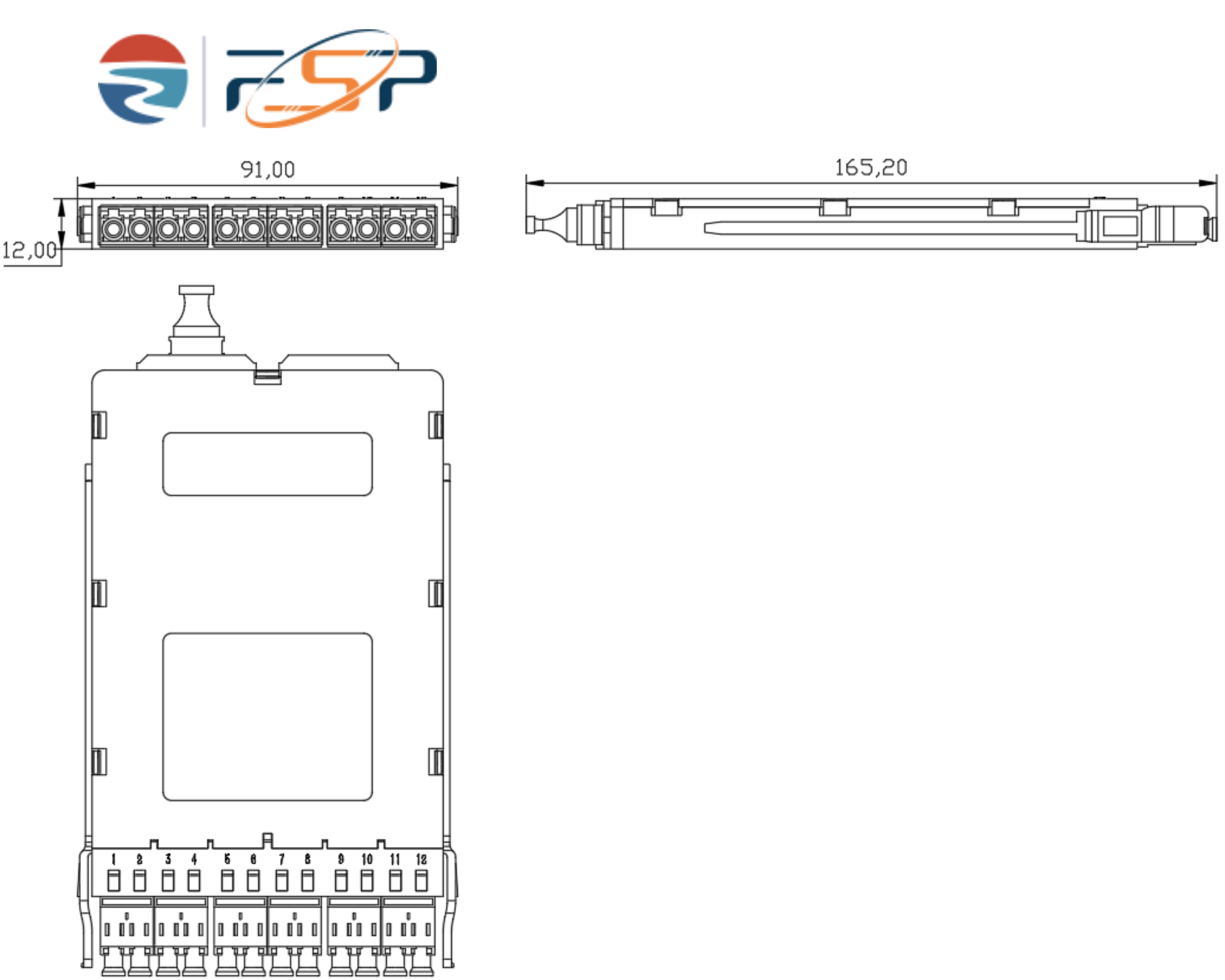

| Size: H×W×D (mm) | 12x91x165.2 |
| Front Ports | 6x Duplex LC |
| Rear Ports | 1x MTP/MPO (12F) |
| Types of Adapter | Duplex LC Connector |
| Material | Flame Retardant PC+ABS (UL94 V-0 rated) |
| Color | Grey RAL 7035/Jet Black RAL 9005 |
| Operating Temperature（°C） | -20~+70 |
| LC Connector | ||
| Fiber Mode | Single Mode | Multimode |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 500 times mating | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |

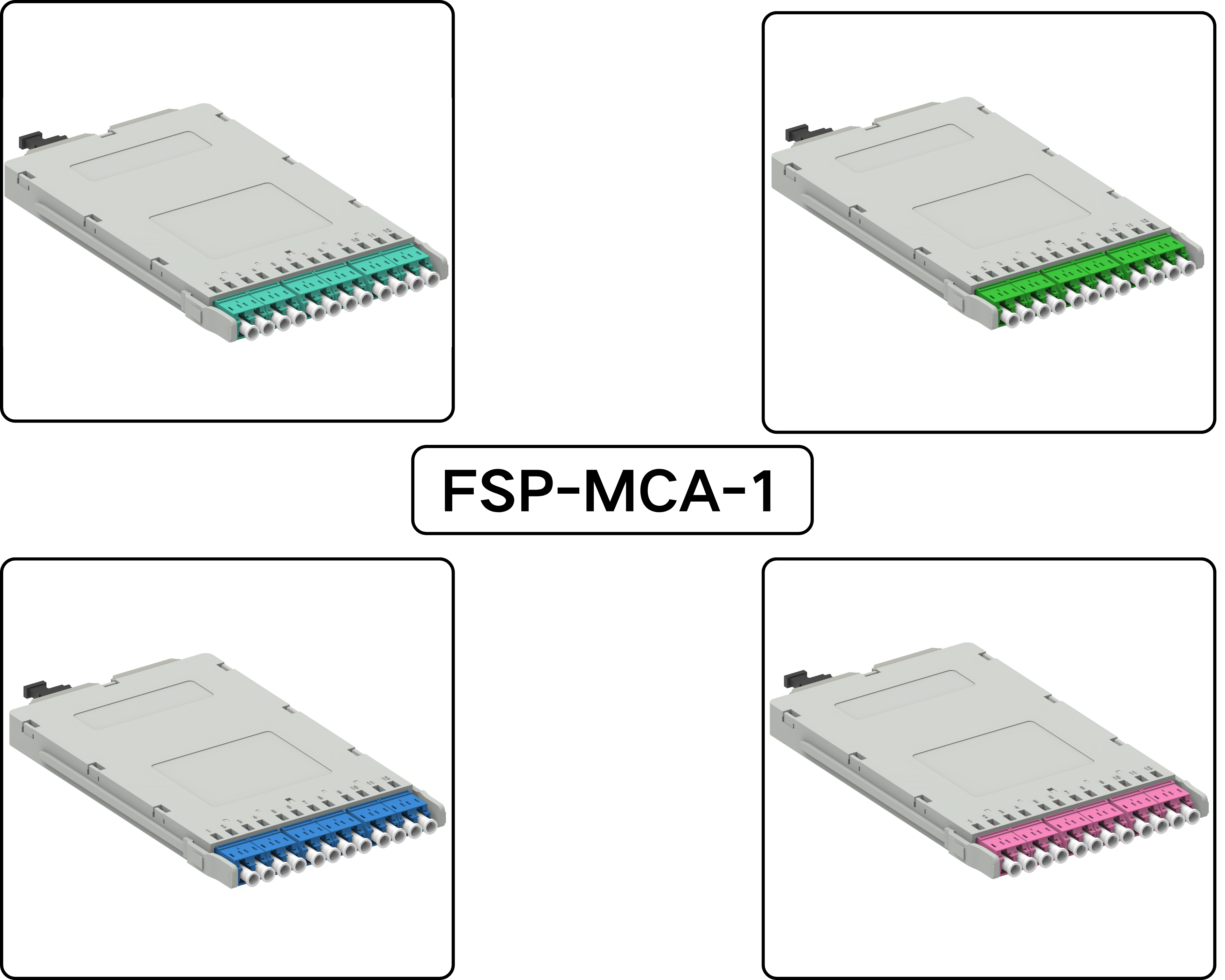

Pic 1
4、Ordering Information
| Part No | Name / Description | Standard Color |
| FSP-MCA-1 | 12F MPO Cassette, with 1 piece of 12-core MPO male connector to 12 LC connector Hydra Cable, 6 pieces of duplex LC adaptors. | Grey RAL 7035 |
| FSP-MCA-1 | 12F MPO Cassette, with 1 piece of 12-core MPO male connector to 12 LC connector Hydra Cable, 6 pieces of duplex LC adaptors. | Jet Black RAL 9005 |
