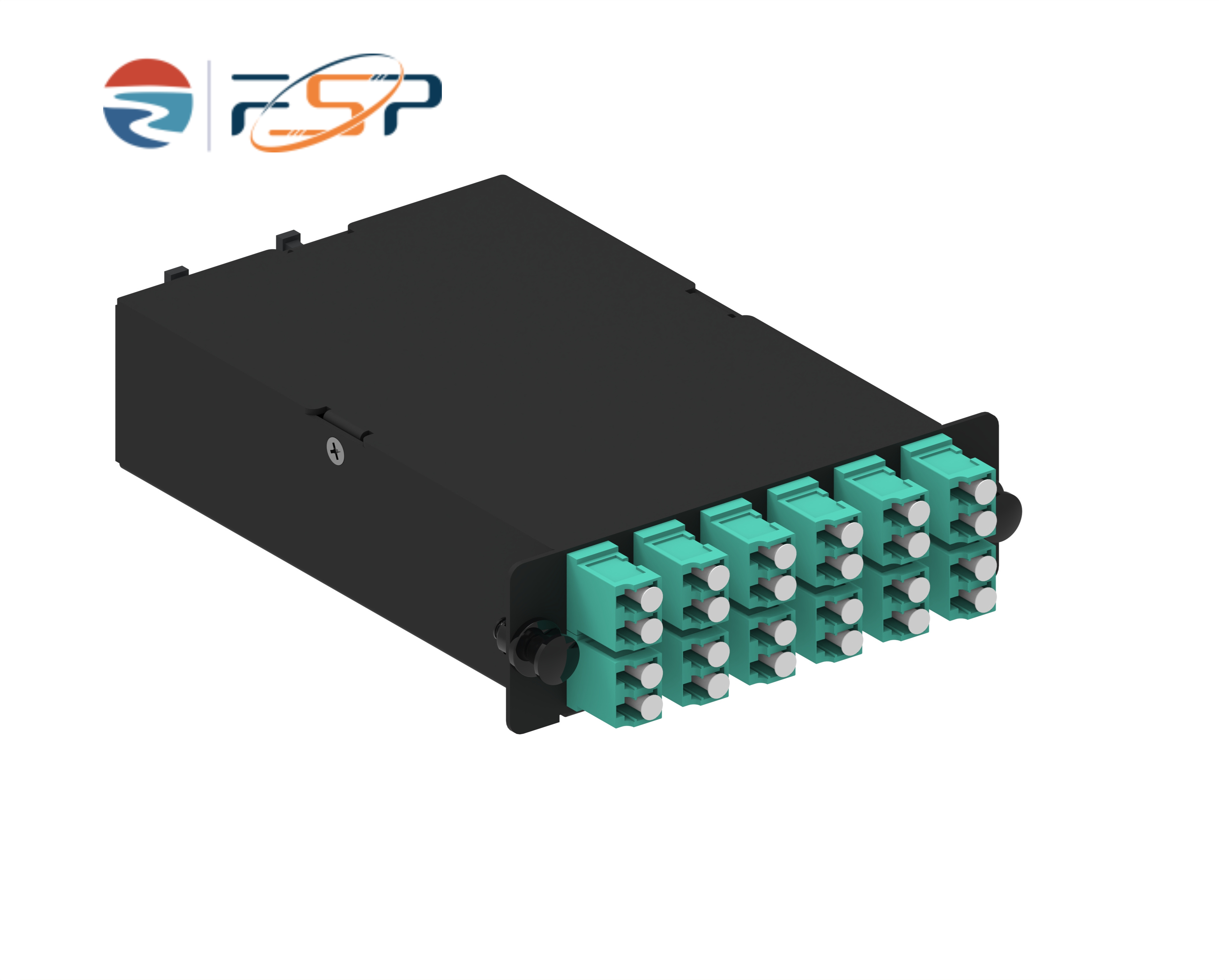

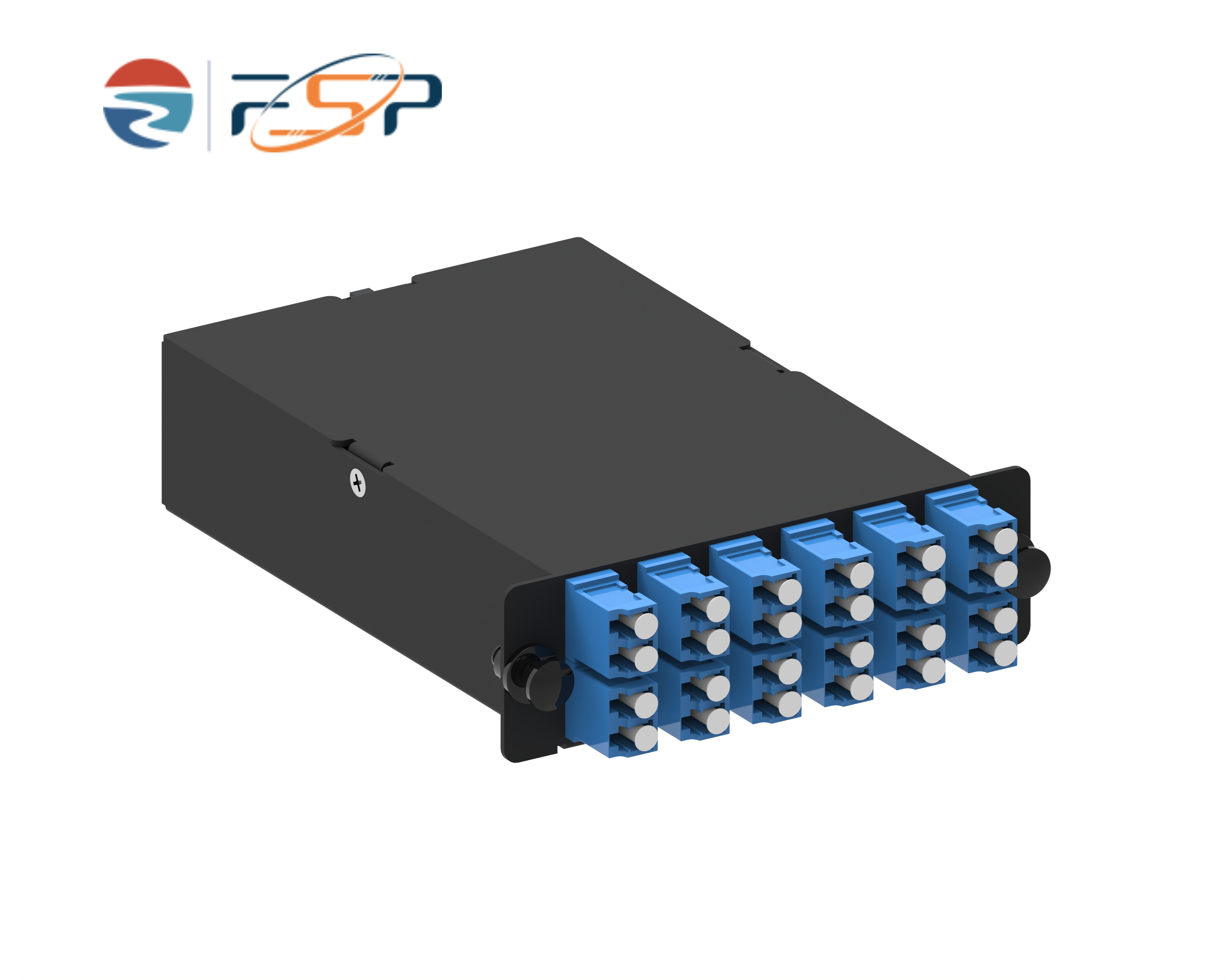

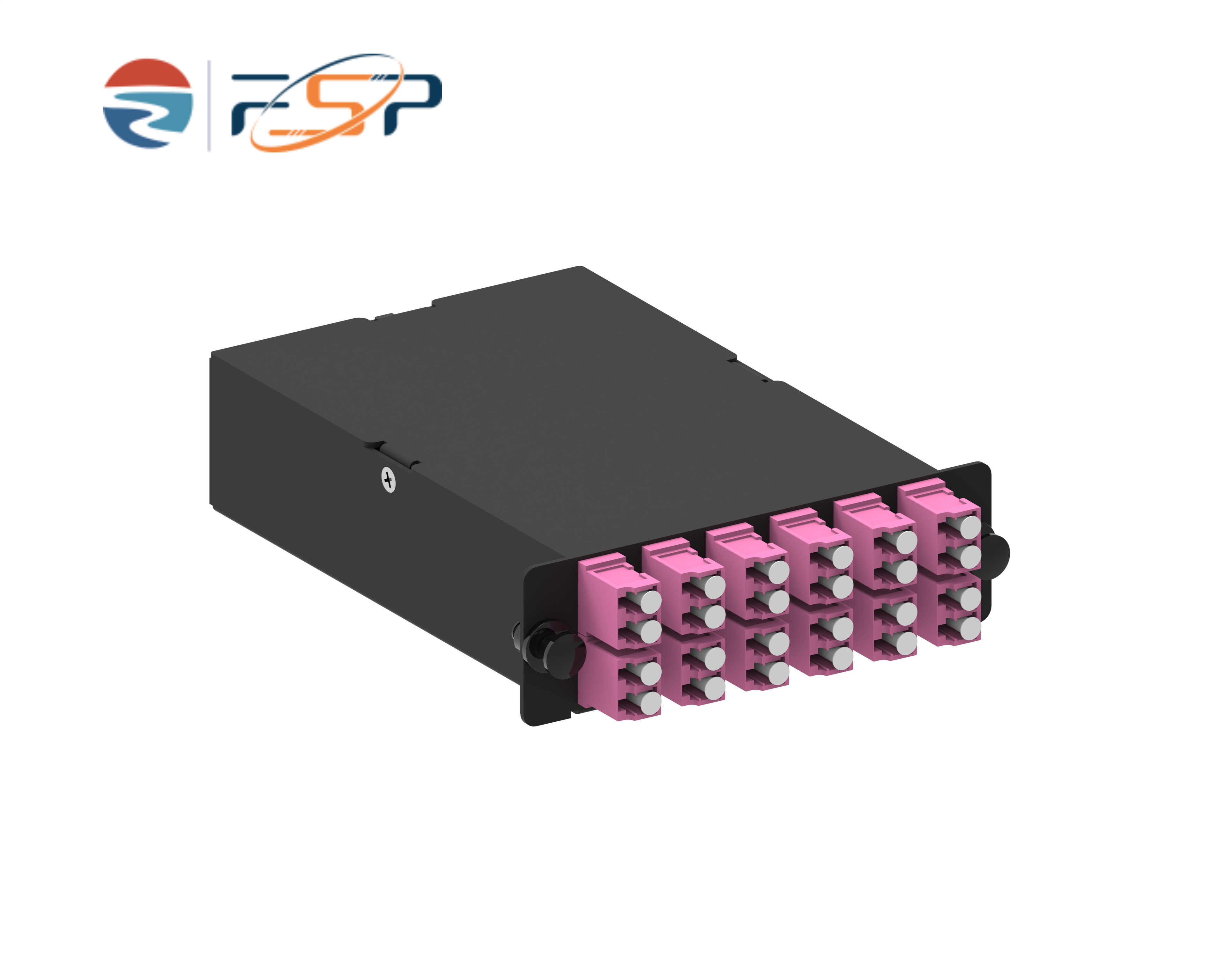

FSP-MCA-3 24F MPO/MTP CASSETTE
1、Description：
The FSP-MCA-3 module cassettes are mainly used to divide the 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cords, the output of the modules can be directly connected with the equipment, frame or the client end.
2、Features：
1) Adopts high quality engineering plastics.
2) Quick and easy installed,flexible in configuration and easy to management.
3、Specifications：
| MTP/MPO Cassette | |
| MODEL | FSP-MCA-3 |
| Fiber Count | 24 Fibers |

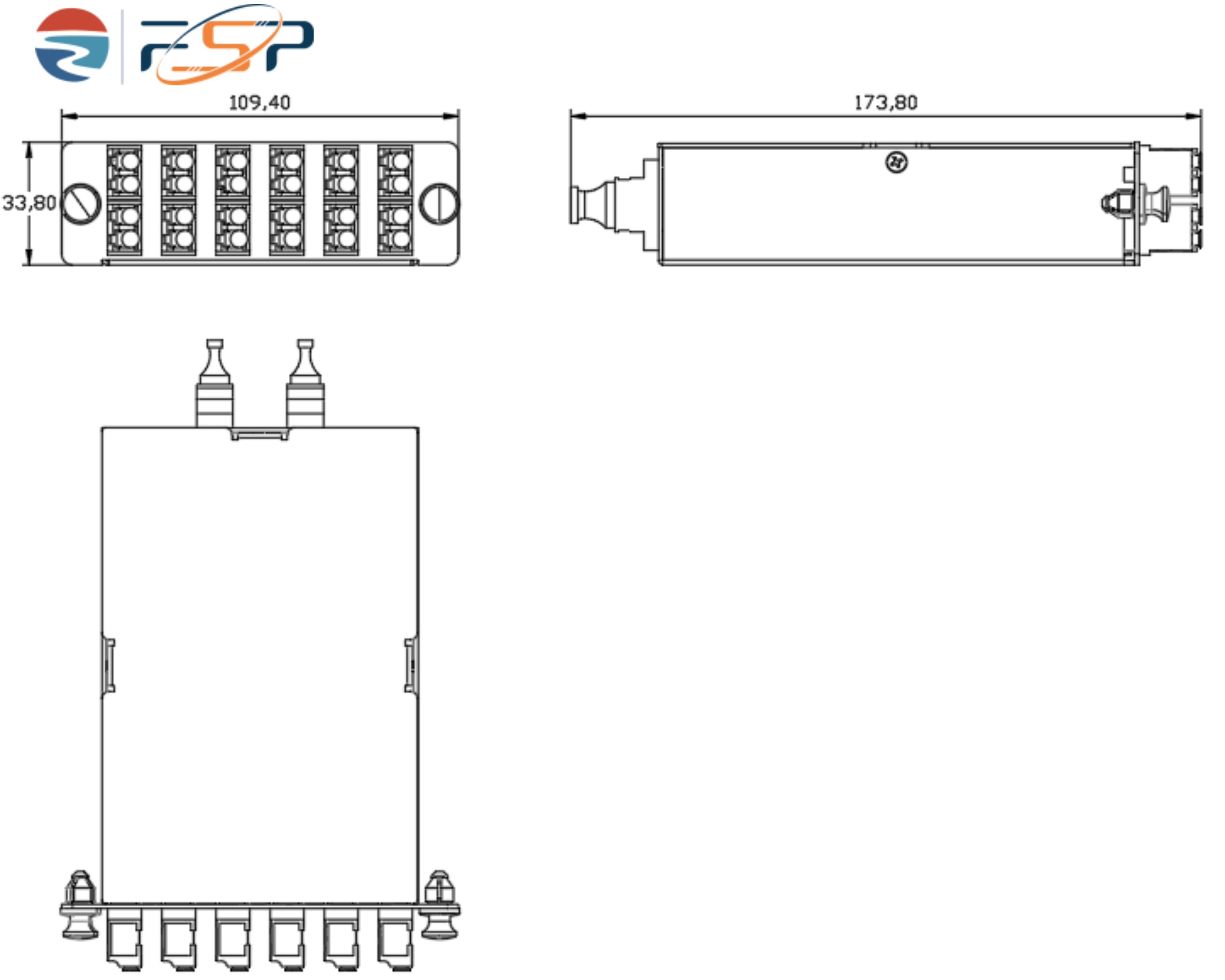

| Size: H×W×D (mm) | 33.8x109.4x173.8 |
| Front Ports | 12x Duplex LC |
| Rear Ports | 2x MTP/MPO (12F) |
| Types of Adapter | Duplex LC Connector |
| Material | Cold Rolled Steel (high-quality, oven-baked gray epoxy powder coated) |
| Color | Jet Black RAL 9005/Gray RAL 7035 |
| Operating Temperature（°C） | -20~+70 |
| LC Connector | ||
| Fiber Mode | Single Mode | Multimode |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 500 times mating | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |
Pic 1
4、Ordering Information
| Part No | Name / Description | Standard Color |
| FSP-MCA-3 | 24F MPO Cassette, with 1 piece of 24-core MPO male connector to 24 LC connector Hydra Cable, 12 pieces of duplex LC adaptors, 2 pieces of MPO Adaptor. | Jet Black RAL 9005 |
| FSP-MCA-3 | 24F MPO Cassette, with 1 piece of 24-core MPO male connector to 24 LC connector Hydra Cable, 12 pieces of duplex LC adaptors, 2 pieces of MPO Adaptor. | Gray RAL 7035 |
