FSP-MCA-4 MPO/MTP CASSETTE
1、Description：
The FSP-MCA-4 module cassettes are mainly used to divide the 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cords, the output of the modules can be directly connected with the equipment, frame or the client end.
2、Features：
1) Adopts high quality engineering plastics.
2) Quick and easy installed,flexible in configuration and easy to management.
3、Specifications：

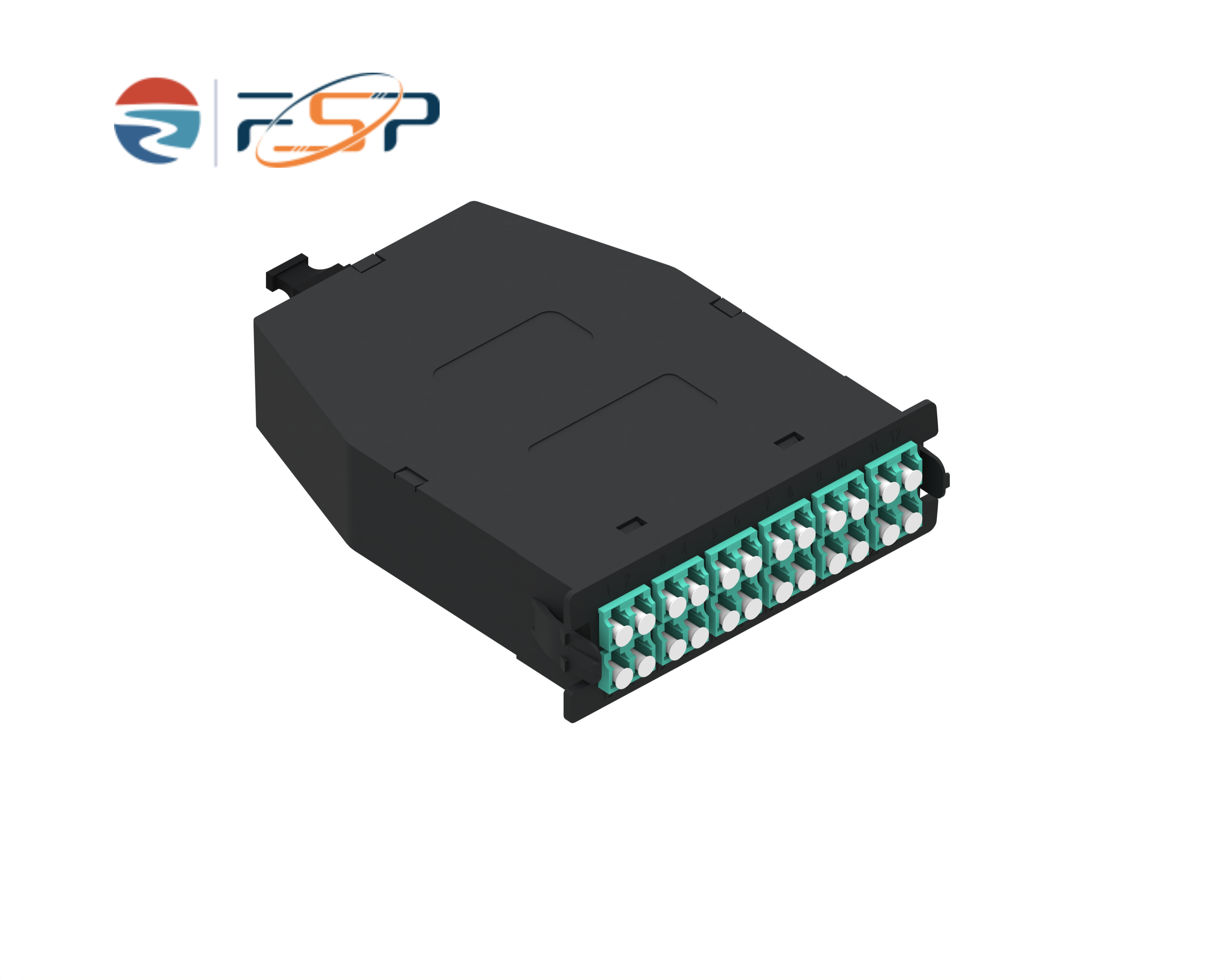

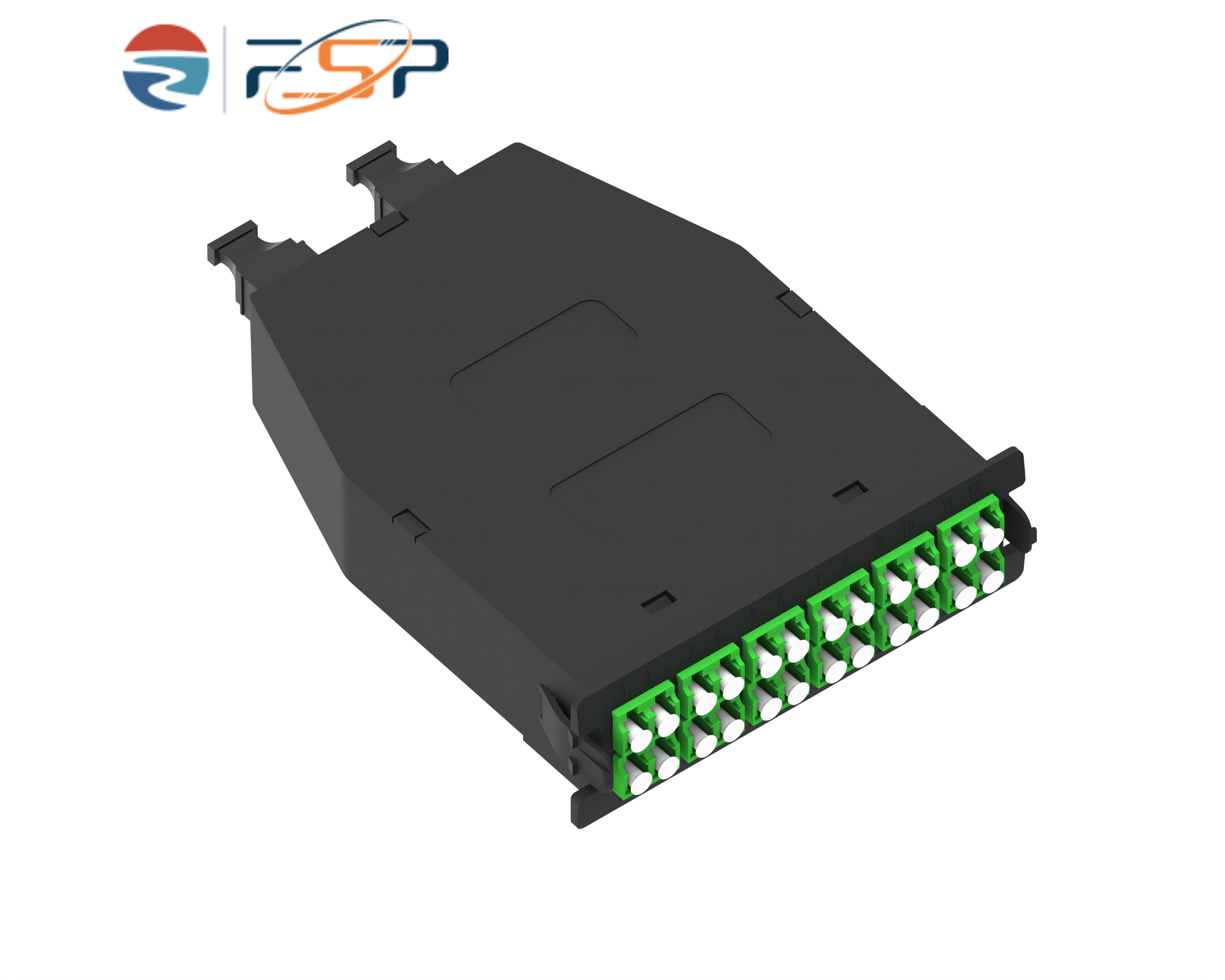

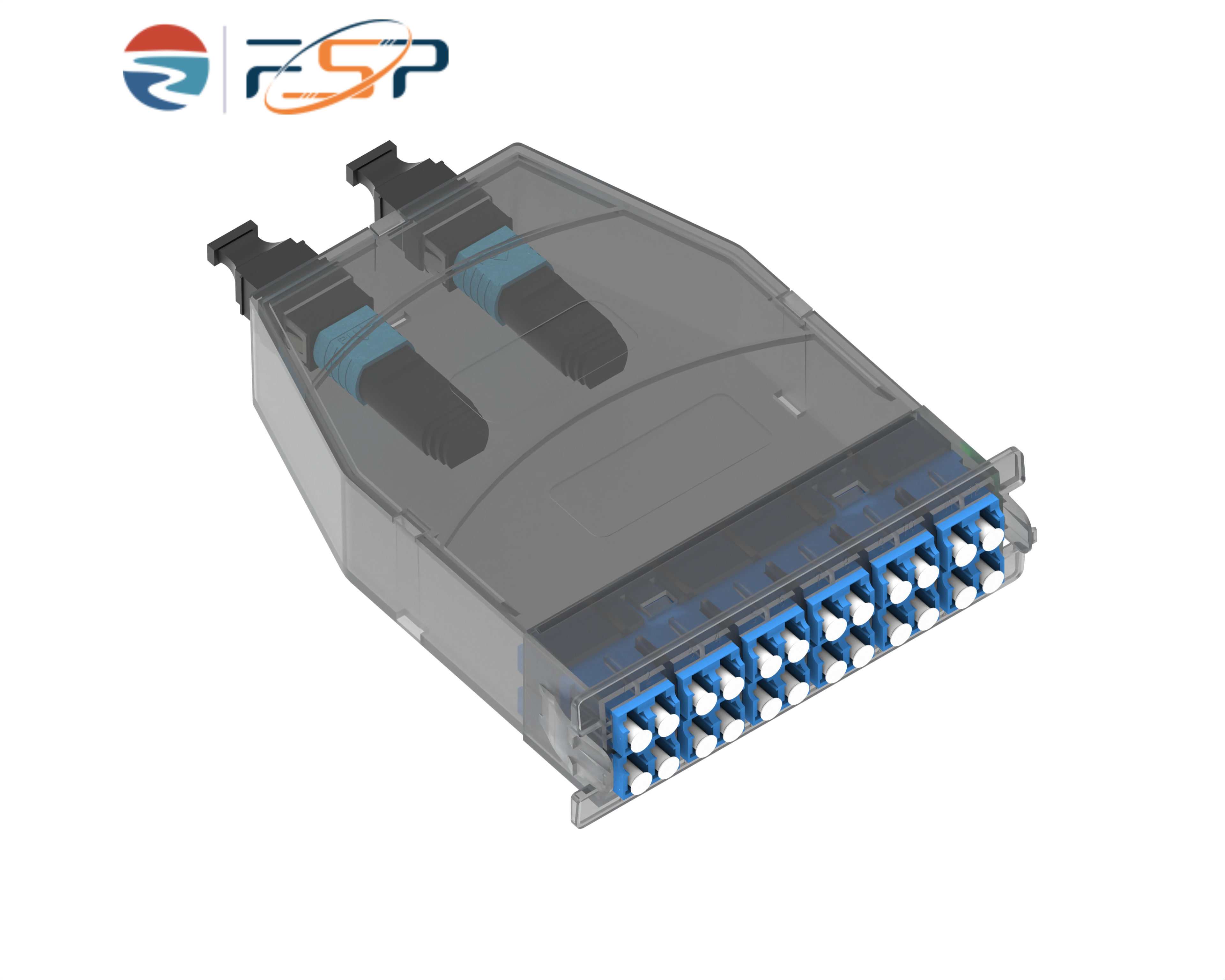

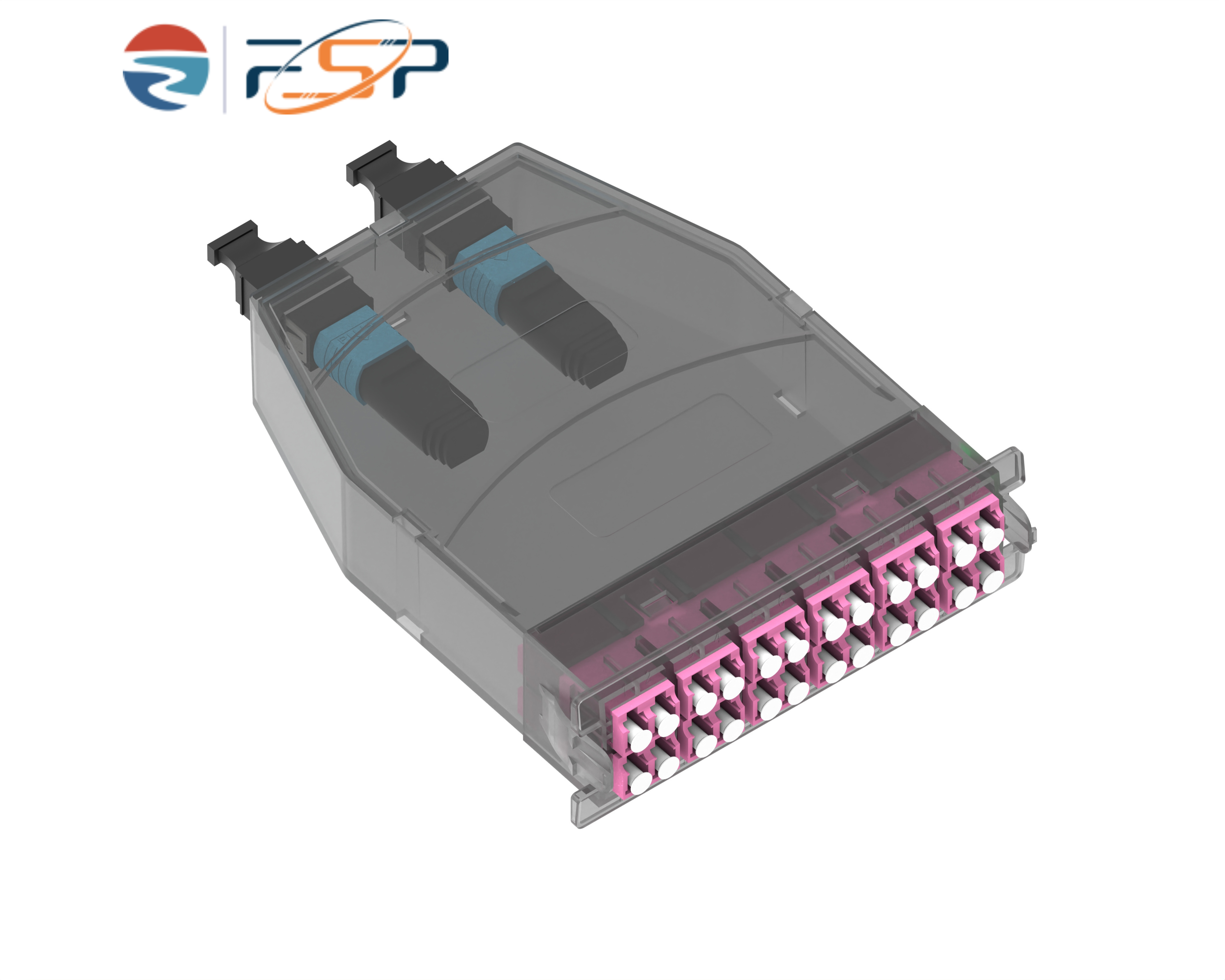

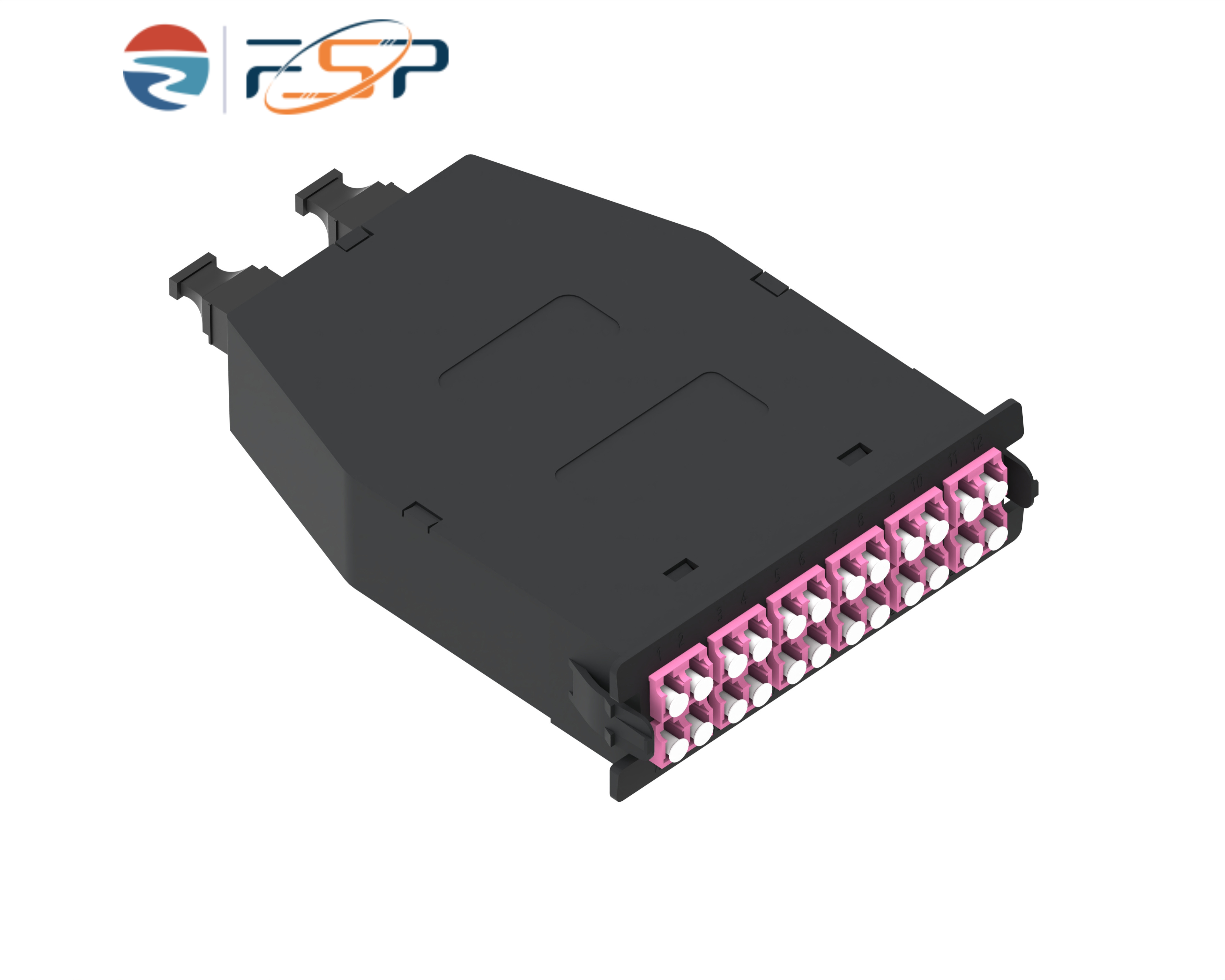

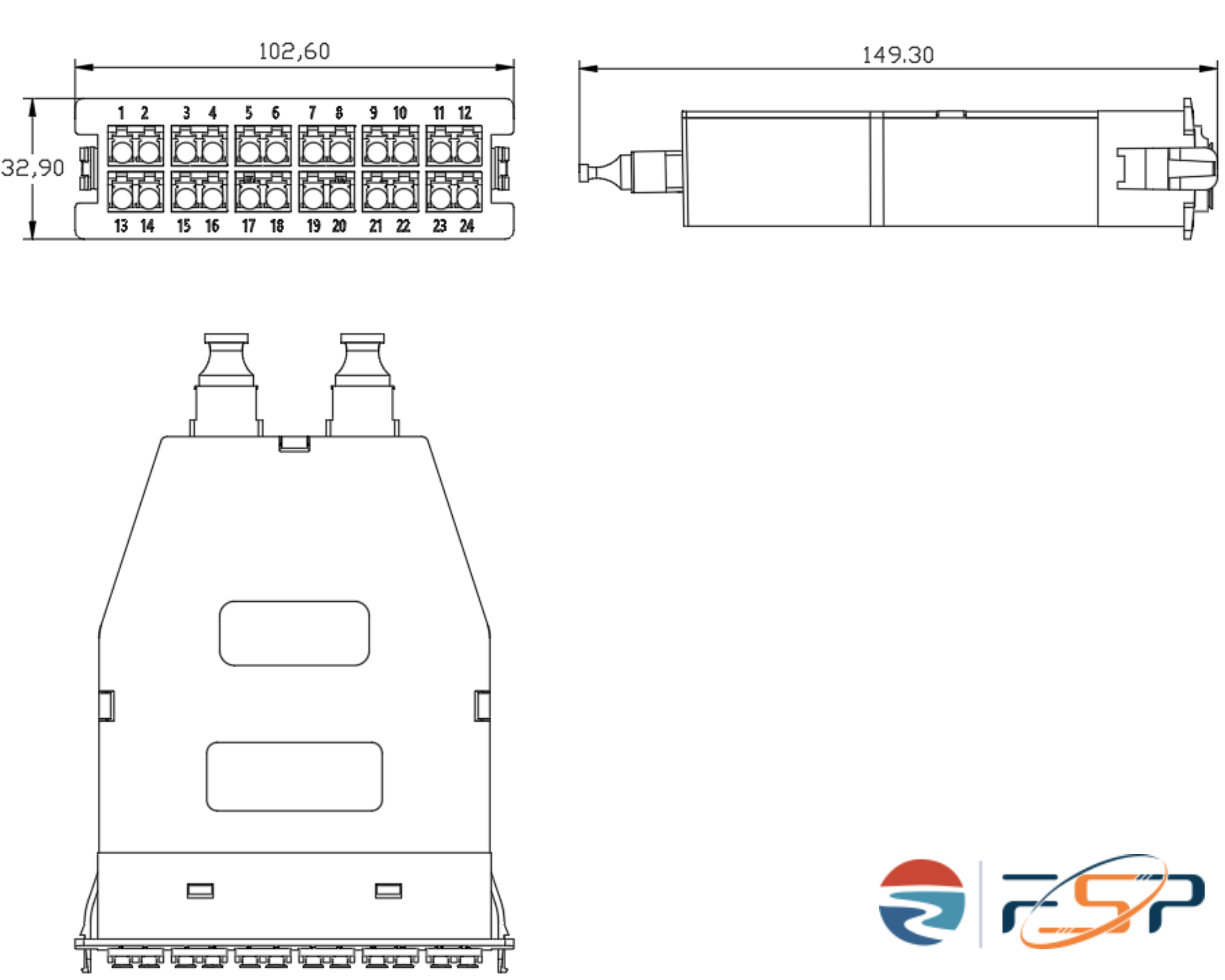

3.1 FSP-MCA-4-1
 |  |  |  |
 |  |  | |
| MTP/MPO Cassette | ||
| MODEL | FSP-MCA-4-1 | |
| Fiber Count | 24 Fibers | |

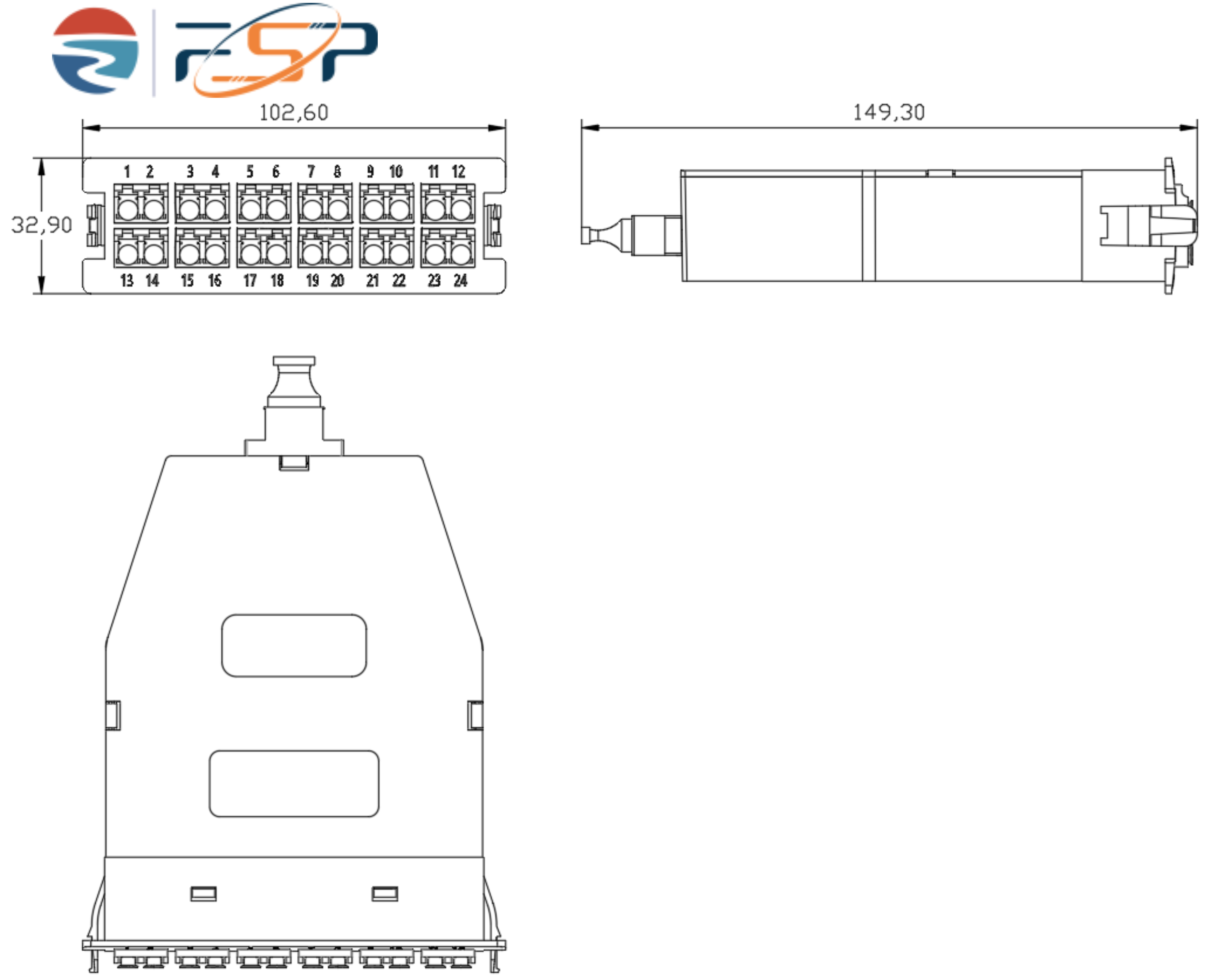

| Size: H×W×D (mm) | 32.9x102.6x149.3 | |
| Front Ports | 12 x Duplex LC | |
| Rear Ports | 2x MTP/MPO (12F) | |
| Types of Adapter | Duplex LC Connector | |
| Material | Flame Retardant PC+ABS (UL94 V-0 rated) | |
| Color | Jet Black RAL 9005/Black transparent | |
| Operating Temperature（°C） | -20~+70 | |
| LC Connector | ||
| Fiber Mode | Single Mode | Multimode |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 500 times mating | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |
Pic 1

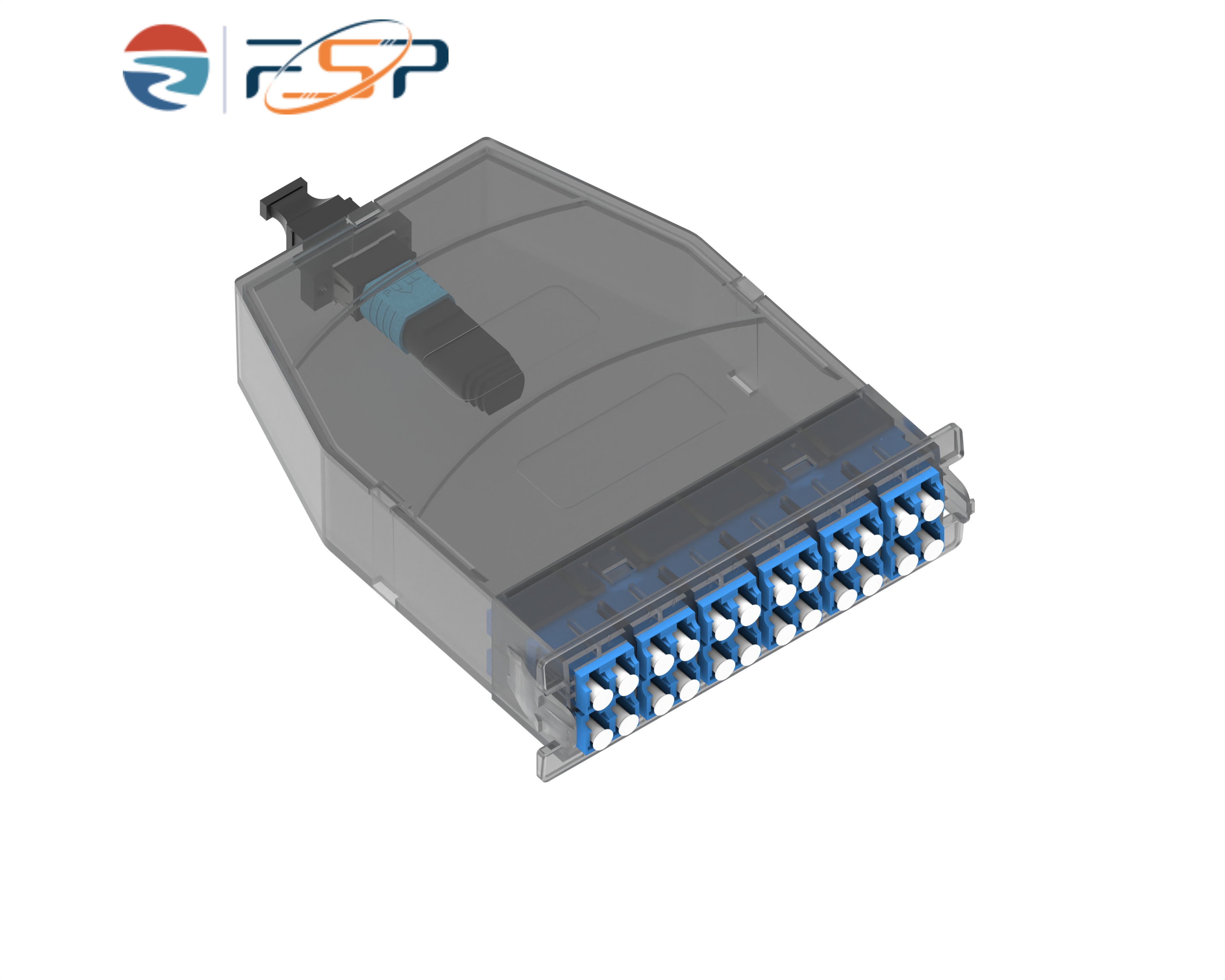

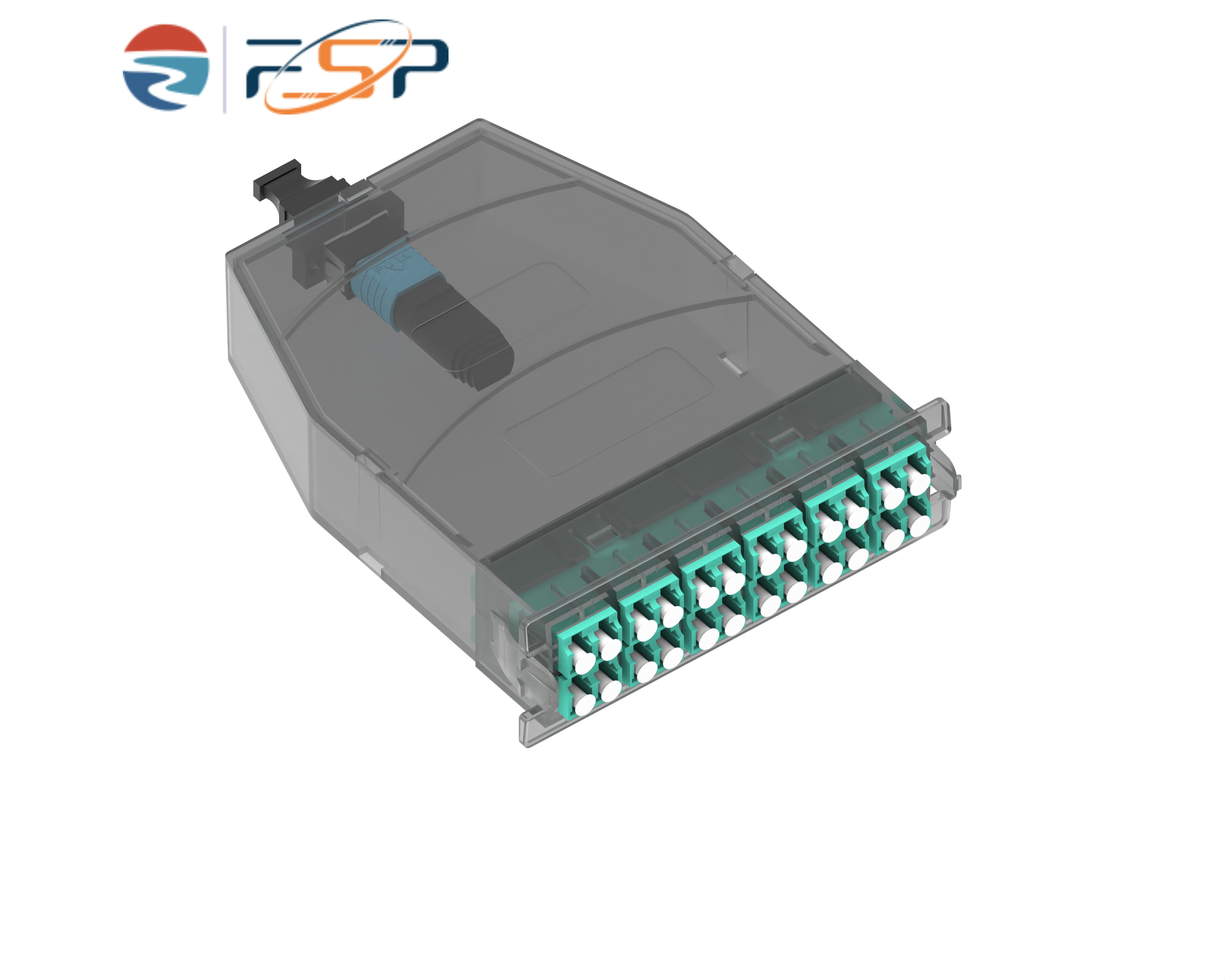

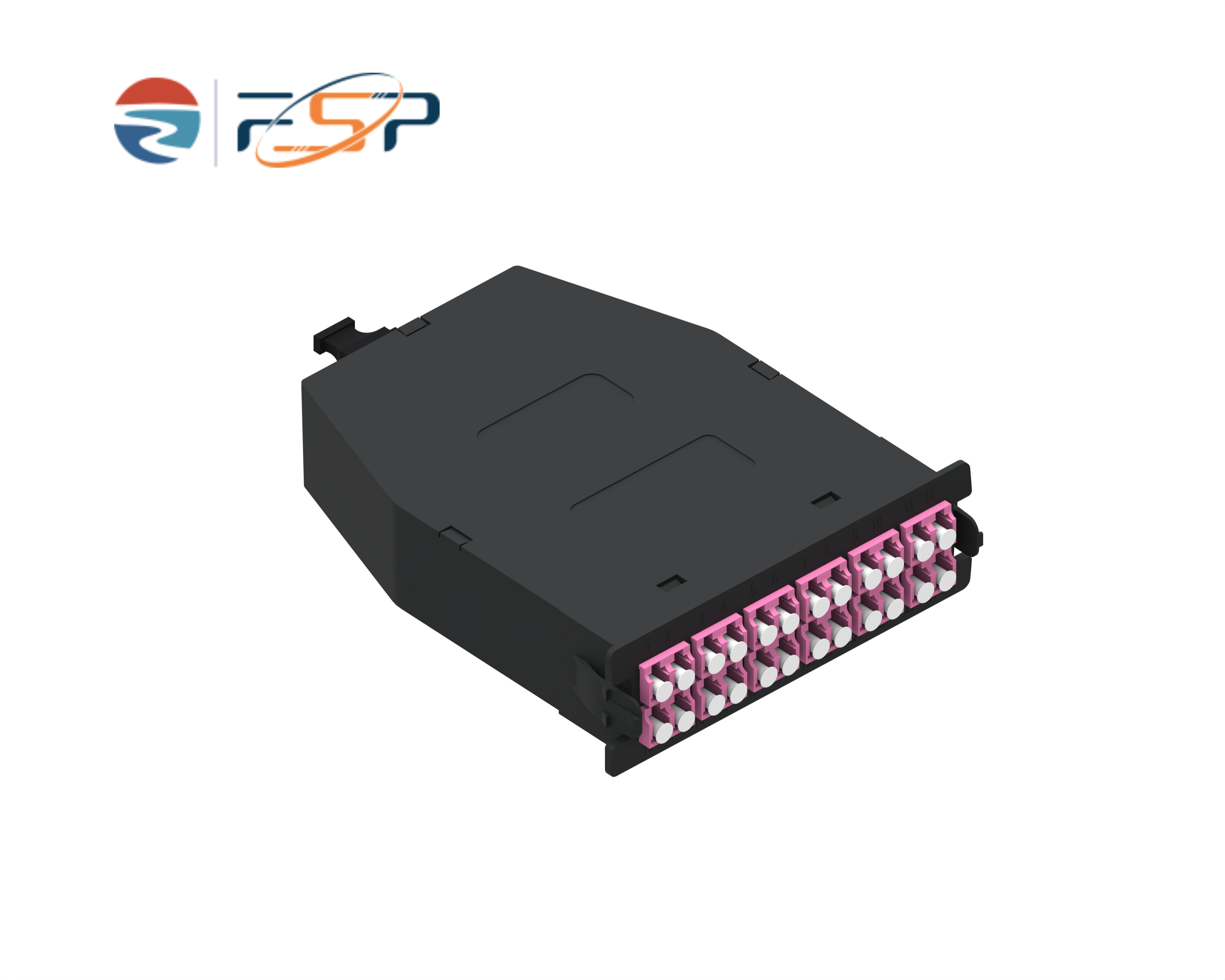

3.2 FSP-MCA-4-2
 |  |  |  |
 |  |  |  |
| MTP/MPO Cassette | ||
| MODEL | FSP-MCA-4-2 | |
| Fiber Count | 24 Fibers | |
| Size: H×W×D (mm) | 32.9x102.6x149.3 | |
| Front Ports | 12 x Duplex LC | |
| Rear Ports | 1x MTP/MPO (12F) | |
| Types of Adapter | Duplex LC Connector | |
| Material | Flame Retardant PC+ABS (UL94 V-0 rated) | |
| Color | Jet Black RAL 9005/Black transparent | |
| Operating Temperature（°C） | -20~+70 | |
| LC Connector | ||
| Fiber Mode | Single Mode | Multimode |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 500 times mating | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |
Pic 2

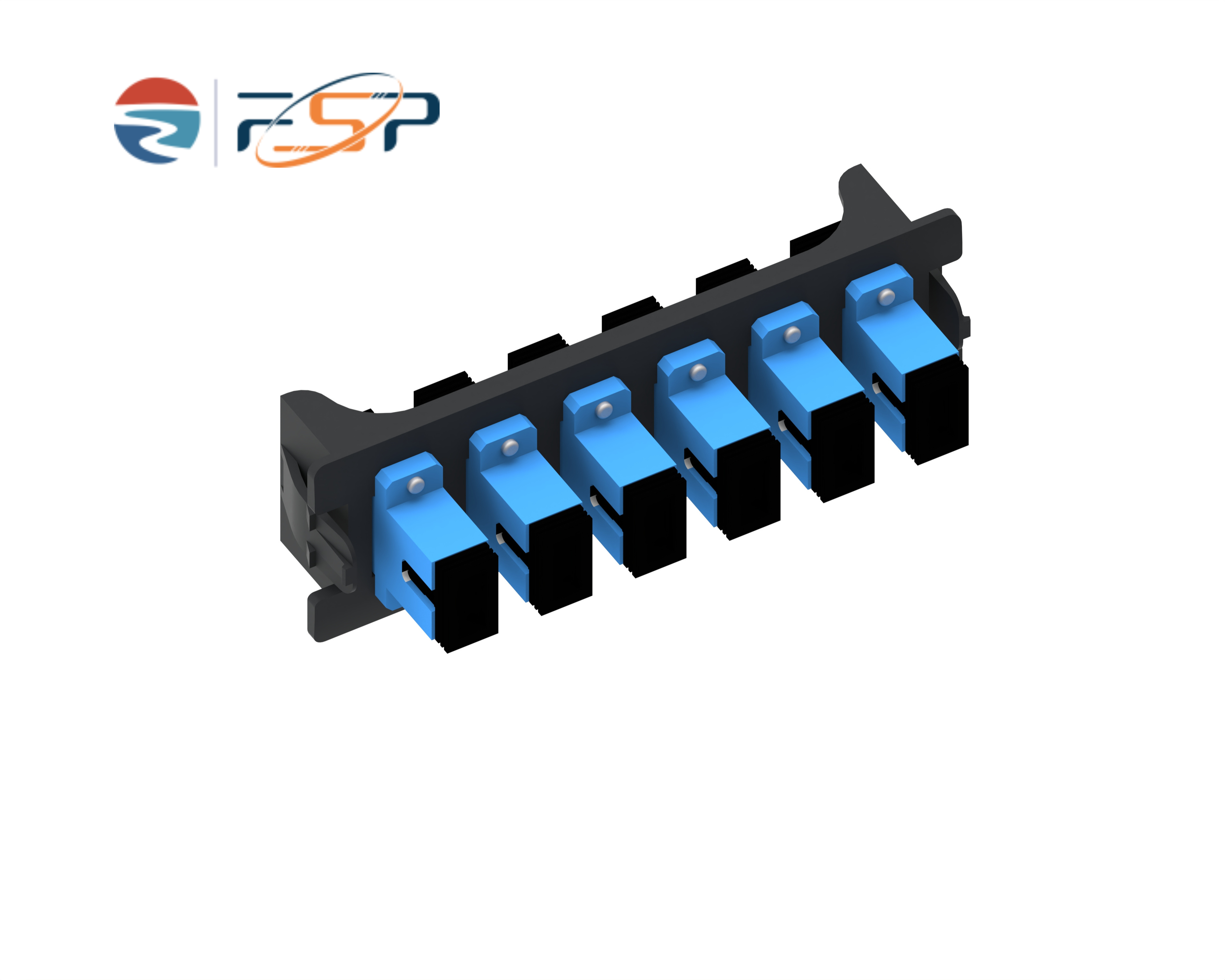

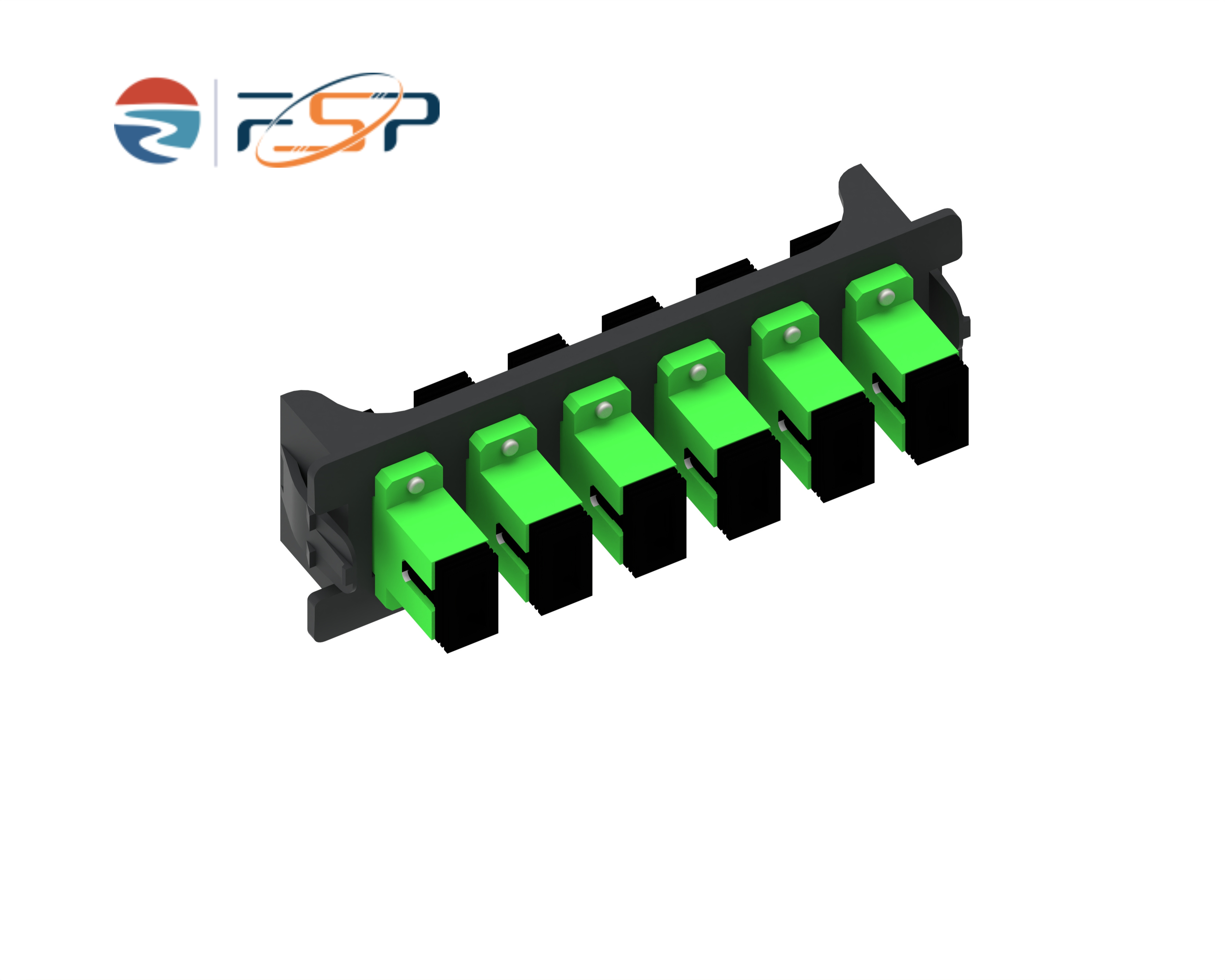

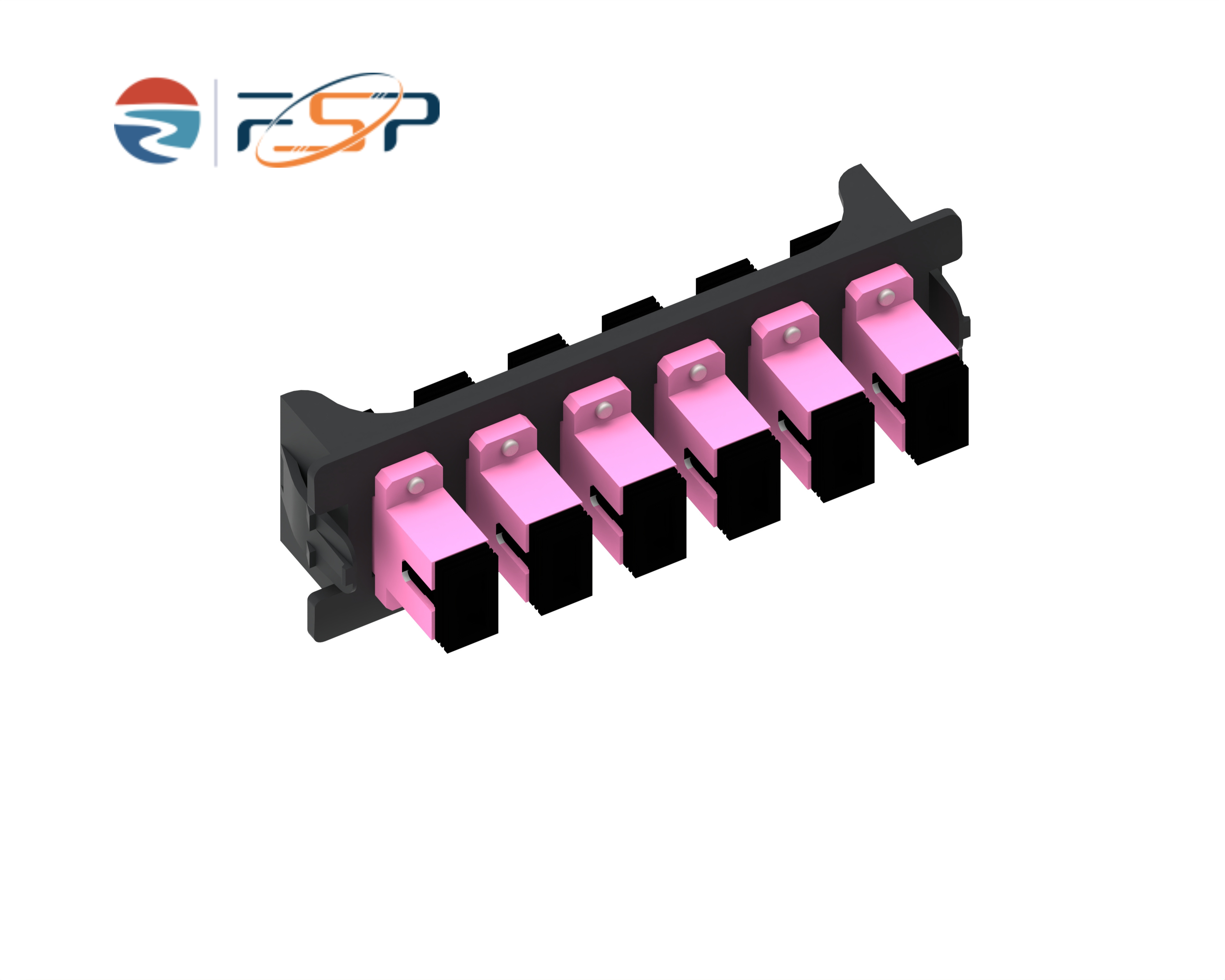

3.3 FSP-MCA-4-3
 |  |  |  |
| MODEL | FSP-MCA-4-3 | |
| Fiber Count | 6 Fibers | |
| Front Ports | 6 x Simplex SC | |
| Types of Adapter | Simplex SC Connector | |
| Material | Flame Retardant PC+ABS (UL94 V-0 rated) | |
| Color | Jet Black RAL 9005/Black transparent | |
| Operating Temperature（°C） | -20~+70 | |
| SC Connector | ||
| Fiber Mode | Single Mode | Multimode |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥50 | ≥20 |
| Durability (dB) | ≤0.2 500 times mating | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |

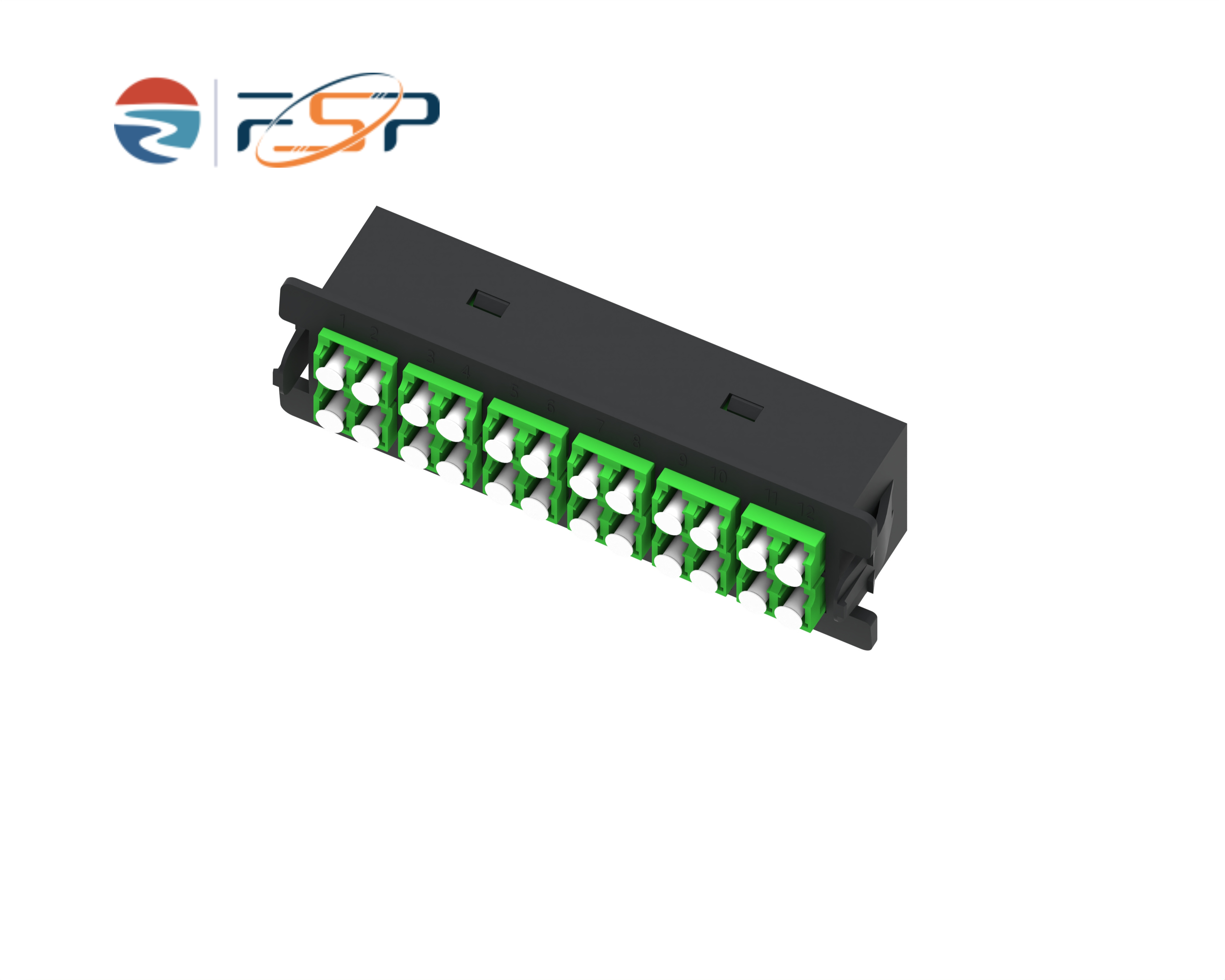

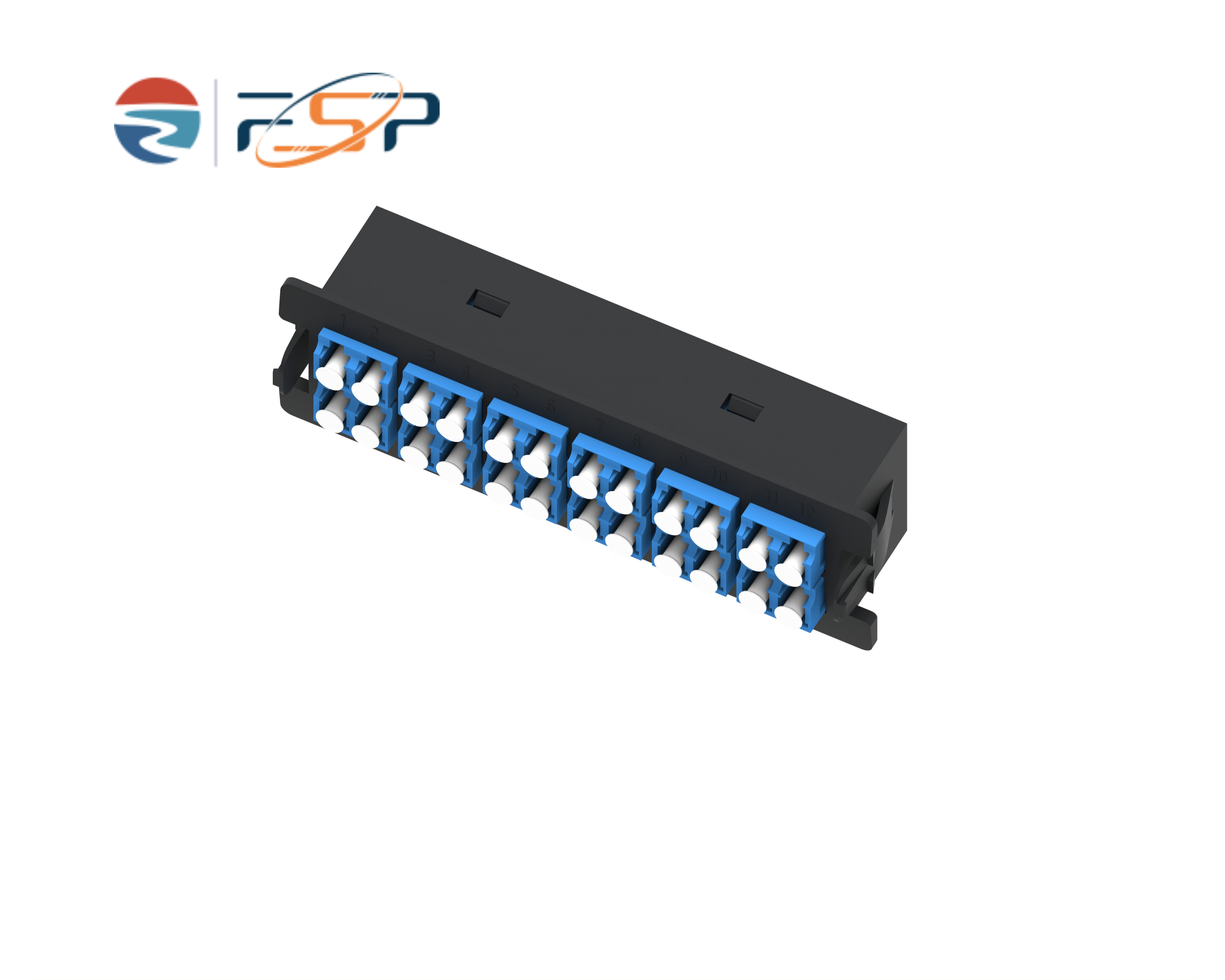

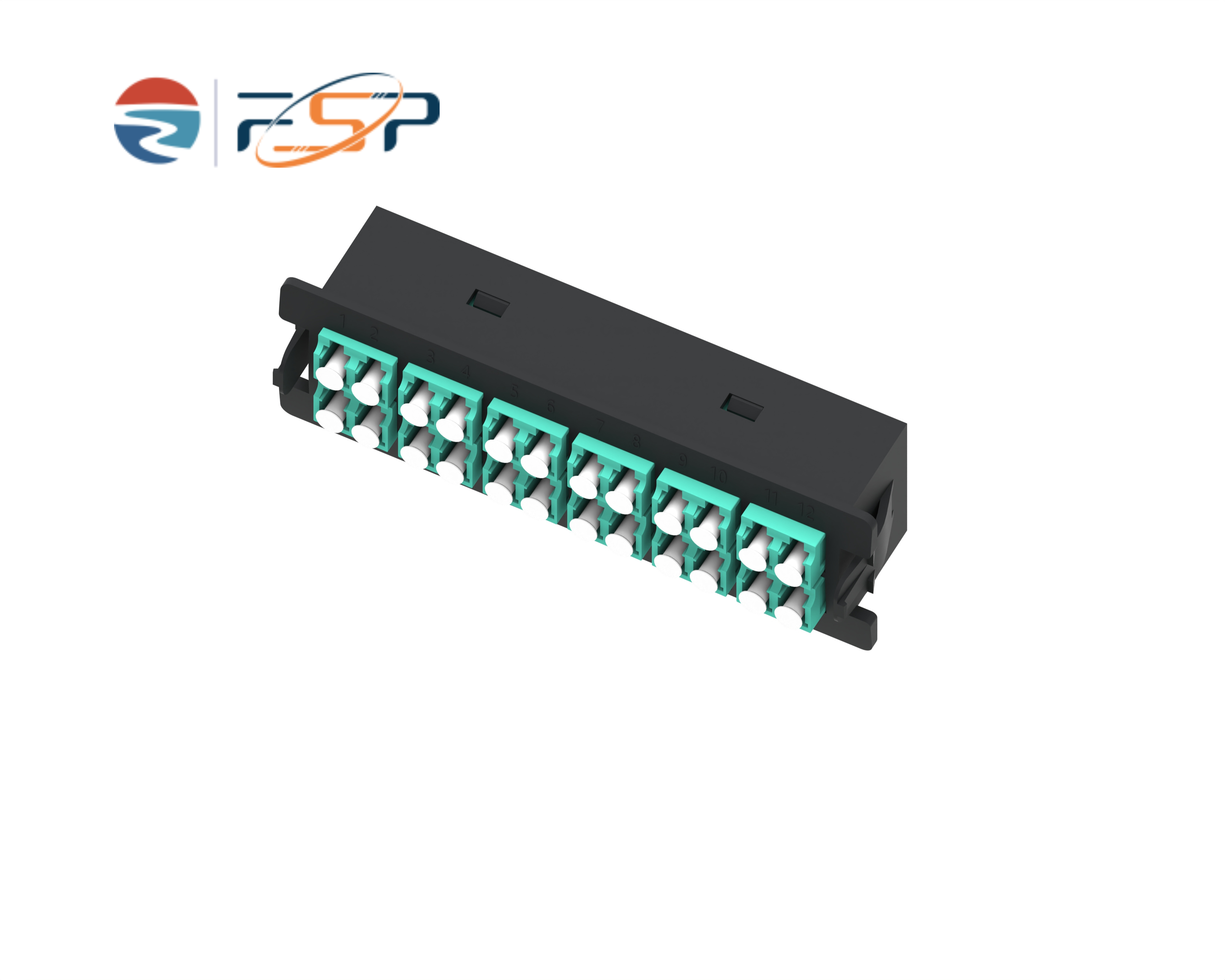

3.4 FSP-MCA-4-4
 |  |  |  |
| MODEL | FSP-MCA-4-4 | |
| Fiber Count | 24 Fibers | |
| Front Ports | 12x Duplex LC | |
| Types of Adapter | Duplex LC Connector | |
| Material | Flame Retardant PC+ABS (UL94 V-0 rated) | |
| Color | Jet Black RAL 9005/Black transparent | |
| Operating Temperature（°C） | -20~+70 | |
| LC Connector | ||
| Fiber Mode | Single Mode | Multimode |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 500 times mating | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |

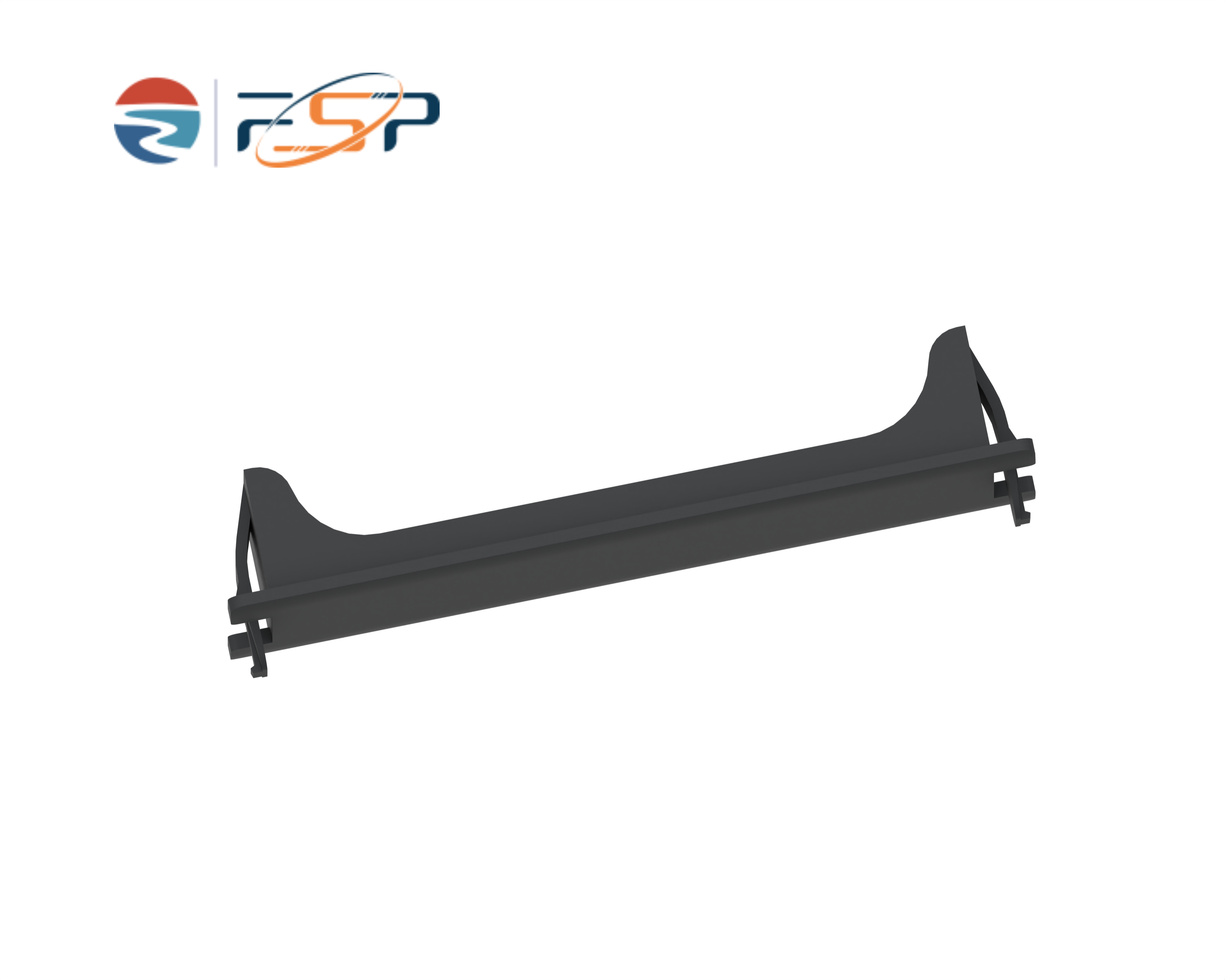

3.5 FSP-MCA-4-5
 | The FSP-MCA-4-5 is a blank filler panel designed to be installed in the unoccupied module slots of the FSP-PHD-4 fiber patch panel. |
Functions
1、Dust Prevention & Protection:
Seals empty slots to prevent dust from entering the patch panel interior and protects internal components and
fiber optic adapters from contamination or physical damage.
2、Aesthetic Finish
Provides a flush, clean front face for the patch panel, ensuring a neat and professional appearance in the
equipment rack.
3、Airflow Management
Helps maintain proper airflow and thermal management within the rack by blocking open gaps that could
disrupt cooling paths.
4、Ordering Information
| Part No | Name / Description | Standard Color |
| FSP-MCA-4-1 | 24F MPO Cassette, with 1 piece of 24-core MPO male connector to 24 LC connector Hydra Cable,12 pieces of duplex LC adaptors, 2 pieces of MPO Adaptor. | Jet Black RAL 9005 |
| FSP-MCA-4-1 | 24F MPO Cassette, with 1 piece of 24-core MPO male connector to 24 LC connector Hydra Cable,12 pieces of duplex LC adaptors, 2 pieces of MPO Adaptor. | Black transparent |
| FSP-MCA-4-2 | 24F MPO Cassette, with 1 piece of 24-core MPO male connector to 24 LC connector Hydra Cable,12 pieces of duplex LC adaptors, 1 piece of MPO Adaptor. | Jet Black RAL 9005 |
| FSP-MCA-4-2 | 24F MPO Cassette, with 1 piece of 24-core MPO male connector to 24 LC connector Hydra Cable,12 pieces of duplex LC adaptors, 1 piece of MPO Adaptor. | Black transparent |
| FSP-MCA-4-3 | 6F MPO Cassette, with 1 piece of 6-core MPO male connector to 6 SC connector Hydra Cable,6 pieces of Simplex SC adaptors. | Jet Black RAL 9005 |
| FSP-MCA-4-3 | 6F MPO Cassette, with 1 piece of 6-core MPO male connector to 6 SC connector Hydra Cable,6 pieces of Simplex SC adaptors. | Black transparent |
| FSP-MCA-4-4 | 24F MPO Cassette, with 1 piece of 24-core MPO male connector to 24 LC connector Hydra Cable,12 pieces of duplex LC adaptors. | Jet Black RAL 9005 |
| FSP-MCA-4-4 | 24F MPO Cassette, with 1 piece of 24-core MPO male connector to 24 LC connector Hydra Cable,12 pieces of duplex LC adaptors. | Black transparent |
| FSP-MCA-4-5 | The FSP-MCA-4-5 is a blank filler panel | Jet Black RAL 9005 |
| FSP-MCA-4-5 | The FSP-MCA-4-5 is a blank filler panel | Black transparent |
