FSP-MPO HYDRA CABLE ASSEMBLIES
1、Description：

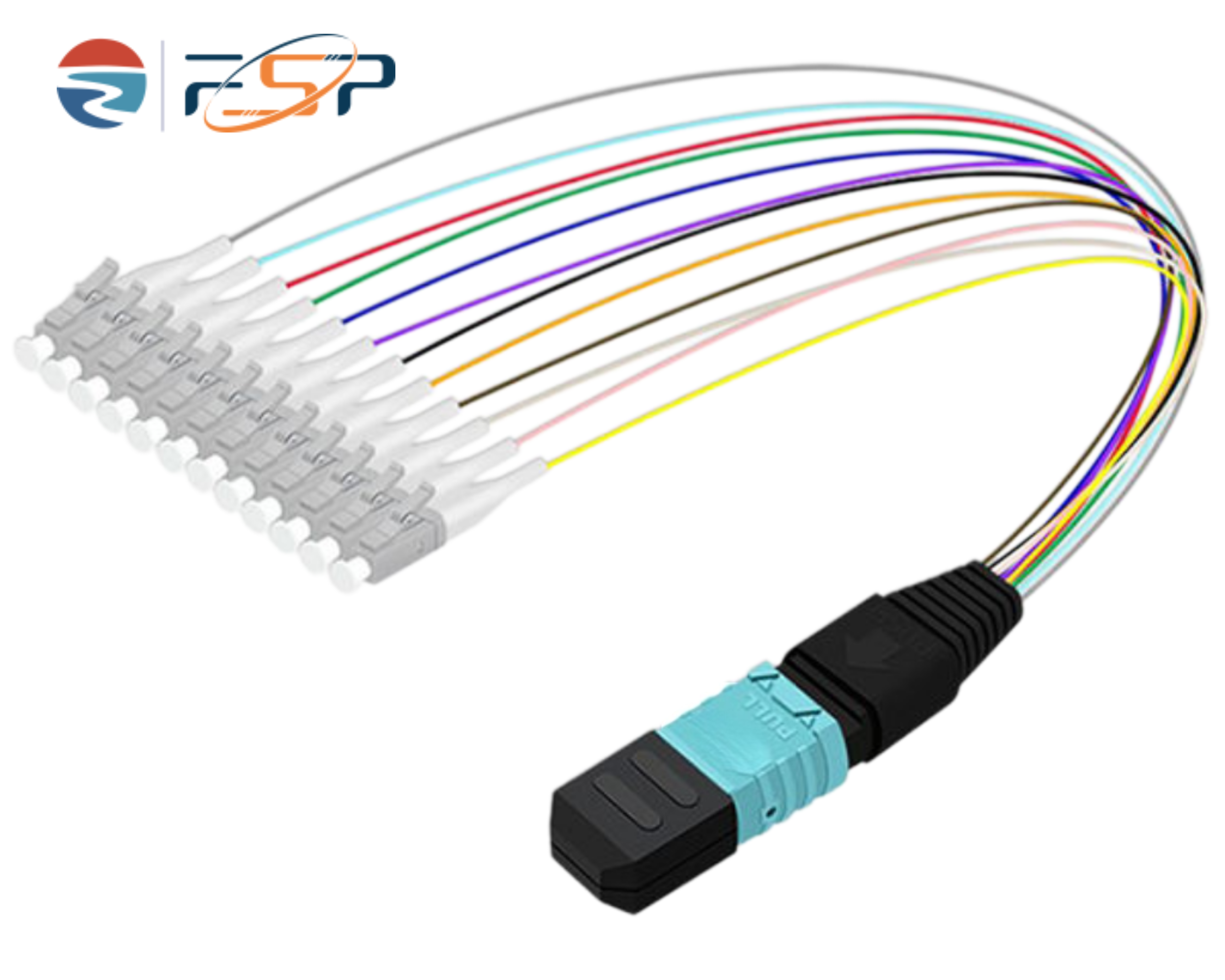

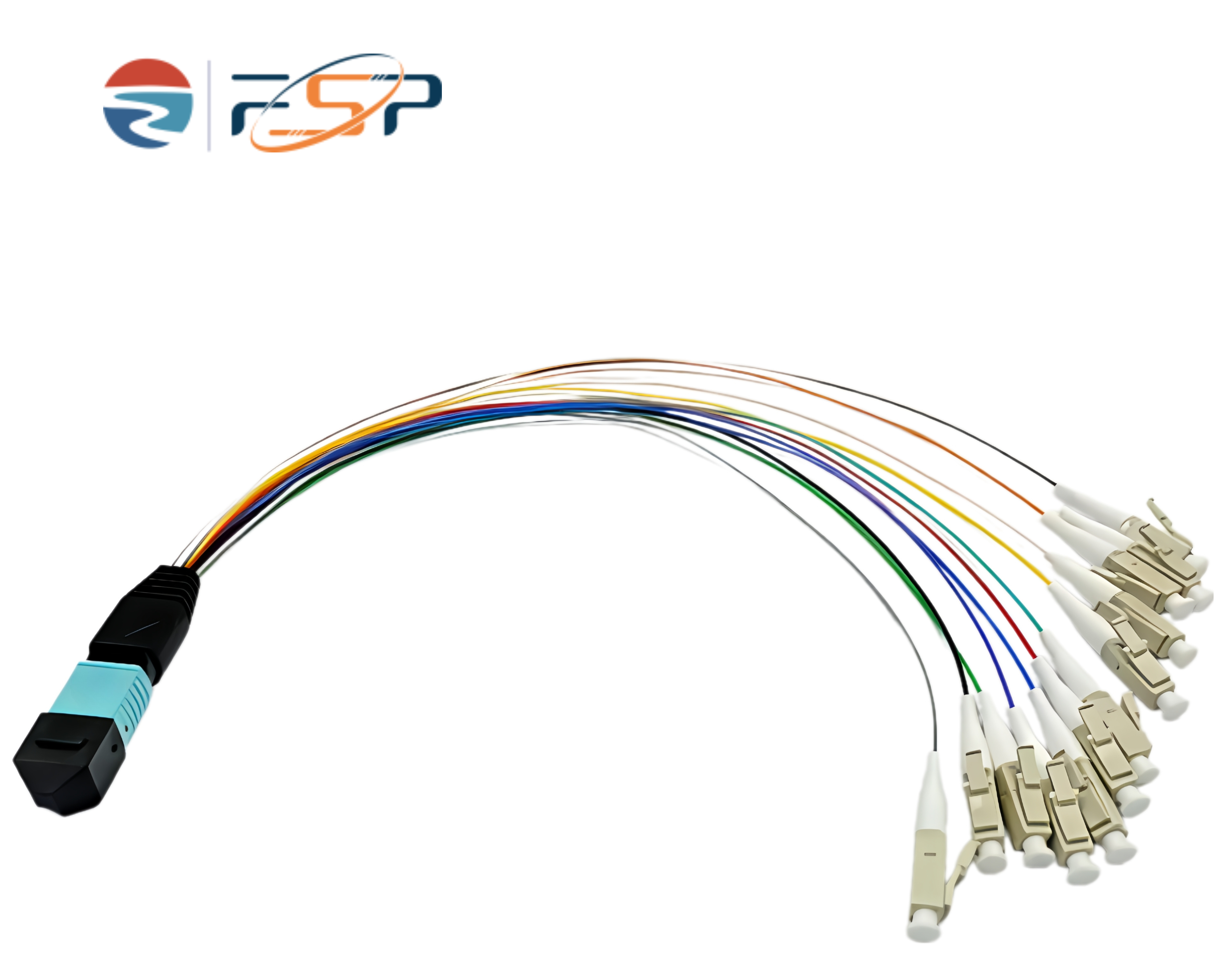

FSP MPO hydra cable assemblies are with a single 12/24 core MPO connector in one end and 12/24 LC connectors for another end. This patch cord needs to be installed inside of the module cassette, connecting the backbone cable with the equipment, which can be modularized and plug play. Compared with traditional splicing, it’s dramatically improved the work efficiency and brings convenience.
2、Features：

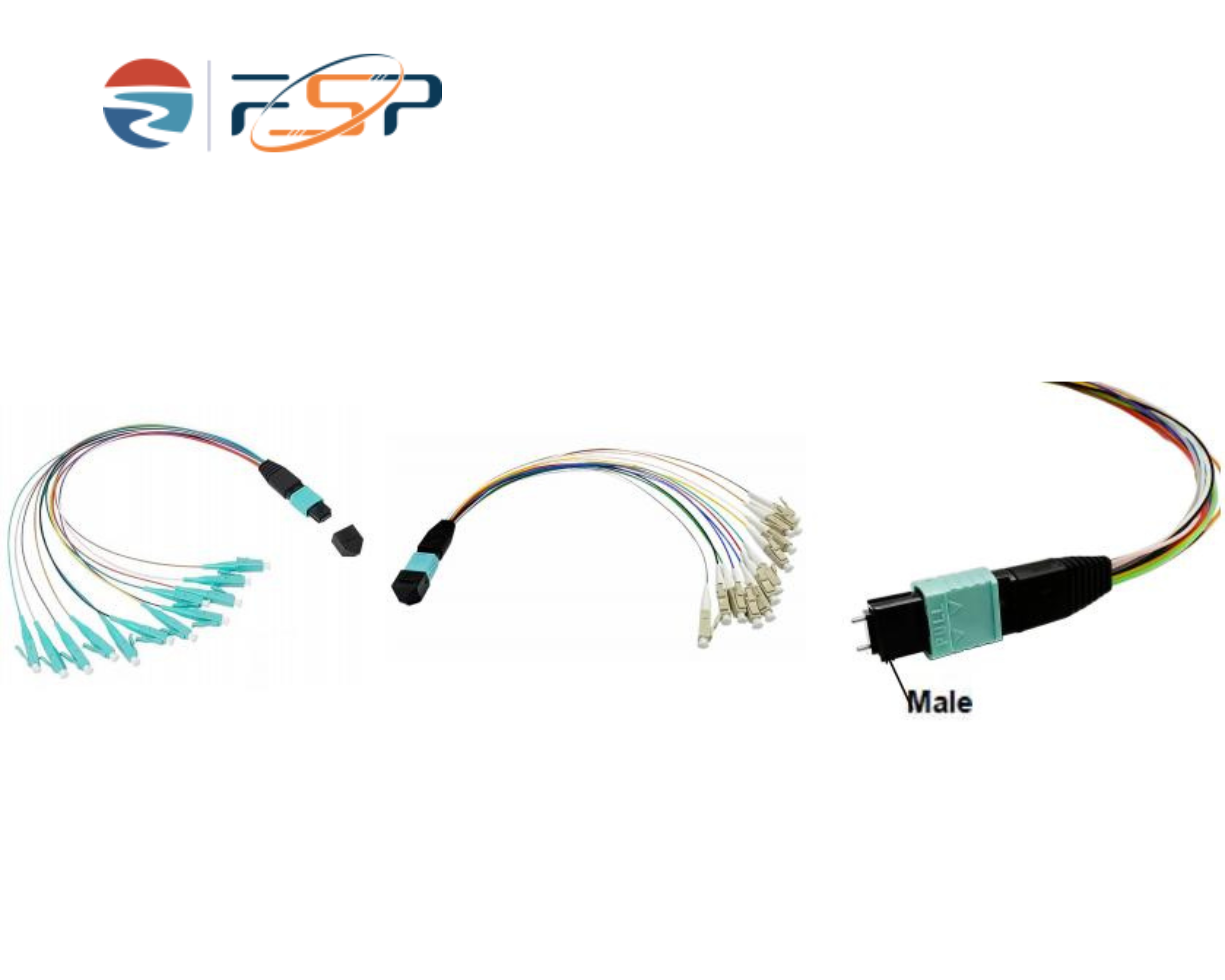

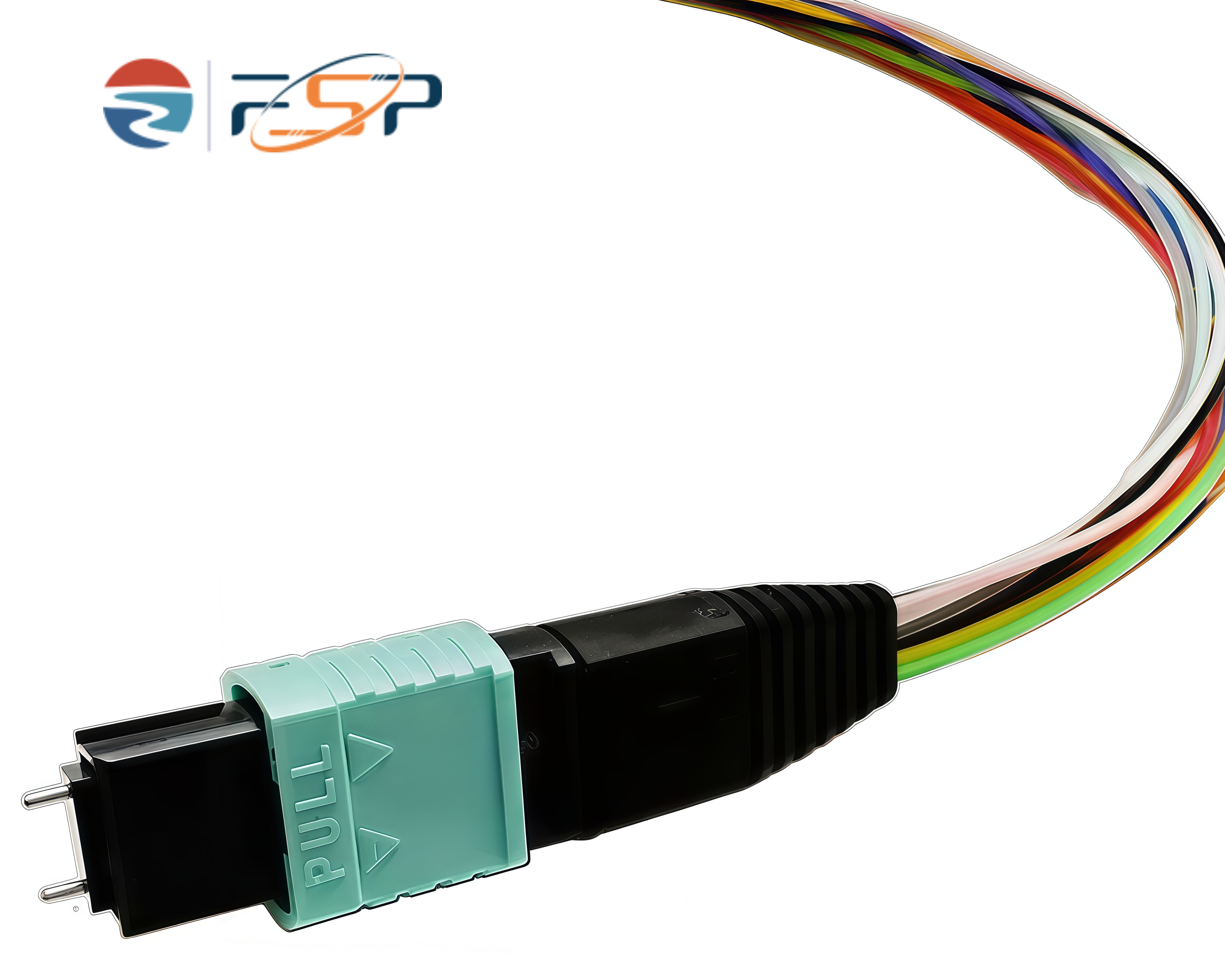

1) A male MPO connector (with guide pin) access to the trunk cable by connecting with MPO adaptors in the cassette, the fanout end connect with LC Connector connect with the patch panel in the modules to connect with the equipment.
2) Customized cable length to compatible with the module, easy for cable coiling.
3) Use dustproof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage.
4) Optional multimode OM3, OM4, OM5, single mode G 652D, G 657A2 fiber requirement
3、Connector Specifications：
| MTP/MPO Connect | ||
| Fiber mode | Single Mode | Multimode |
| Insertion Loss (dB) | ≤0.70 (Standard) ≤0.35 (Elite) | ≤0.70 (Standard) ≤0.35 (Elite) |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 (500 times mating) | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |
| LC Connect | ||
| Fiber mode | Single Mode | Multimode |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 (500 times mating) | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |
4、MTP/MPO Connector Geometry Parameters
| Item | X-axis | Y-axis | ||
| Min | Max | Min | Max | |
| Polishing Angle | 500 | - | 50 | - |
| Fiber Height (nm) | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
| Max Fiber Height Error (nm) | 600 | |||
| Adjacent Fiber Height Error (nm) | -300~+300 | |||
| Central Concave (nm) | 300 | |||
5、Fiber Specifications
| Fiber Type | Multimode | Single Mode | ||||
| OM1 | OM2 | OM3 | OM4 | OM5 | G.657 | |
| Core Diameter (um) | 62.5/125 | 50/125 | 50/125 | 50/125 | 50/125 | 9/125 |
| Wavelengths (nm) | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 850/1300 | 1310/1550 |
| Max. Attenuation (dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 2.3/0.6 | 0.36/0.25 |
| Min. OFL Bandwidth (MHz·km) | 200/500 | 500/500 | 1500/500 | 3500/500 | 3500/500 | - |
| Min. Effective Modal Bandwidth (MHz·km) | - | 500 | 2000 | 4700 | 4700 | - |
The effective modal Bandwidth for multimode is for 850nm.
