1、Description：
FSP-CD-11 Fiber Optic Splice Closure is mechanical sealing closure intended for low fiber count cable splice. It is designed for use with different cable construction in any environment (duct, aerial, buried and man-hole) and for numerous splice applications as mid-span, branch and direct splice. 12 cores splice trays are available for different cable. Suitable accessories are designed for use with mechanical sealing.
2、Specification：
1) The casing of enclosure is made of PP,which is a kind of high-strength engineering plastic.
2) Reliable cable introducing, fixing, protection, grounding devices. Easy for re-entry and re-open.
3) The base has a variety of ports for different type of cable,the oval port is used for uncute cable.
4) High-strength modified polypropylene material ,Protection grade: IP68.
3、Configuration Table：
|
Model |
FSP-CD-11 |
|
Environment |
Aerial, direct buried, pipelined, wall mounting, manhole |
|
Splice Capacity |
12 Cores |
|
Splice Trays |
1Pcs |
|
Cable entry ports |
2 Ports (Max Φ15mm <Uncut>) |
|
Drop Cable entry ports |
8 Ports (SC) |
|
Splitter Type |
Mini PLC , 1:8 , SC |
|
Protection Level |
IP68 |
|
Color |
Black |
|
Body Material |
PP |
|
Dimension |
H × D = 185× Φ180 mm |

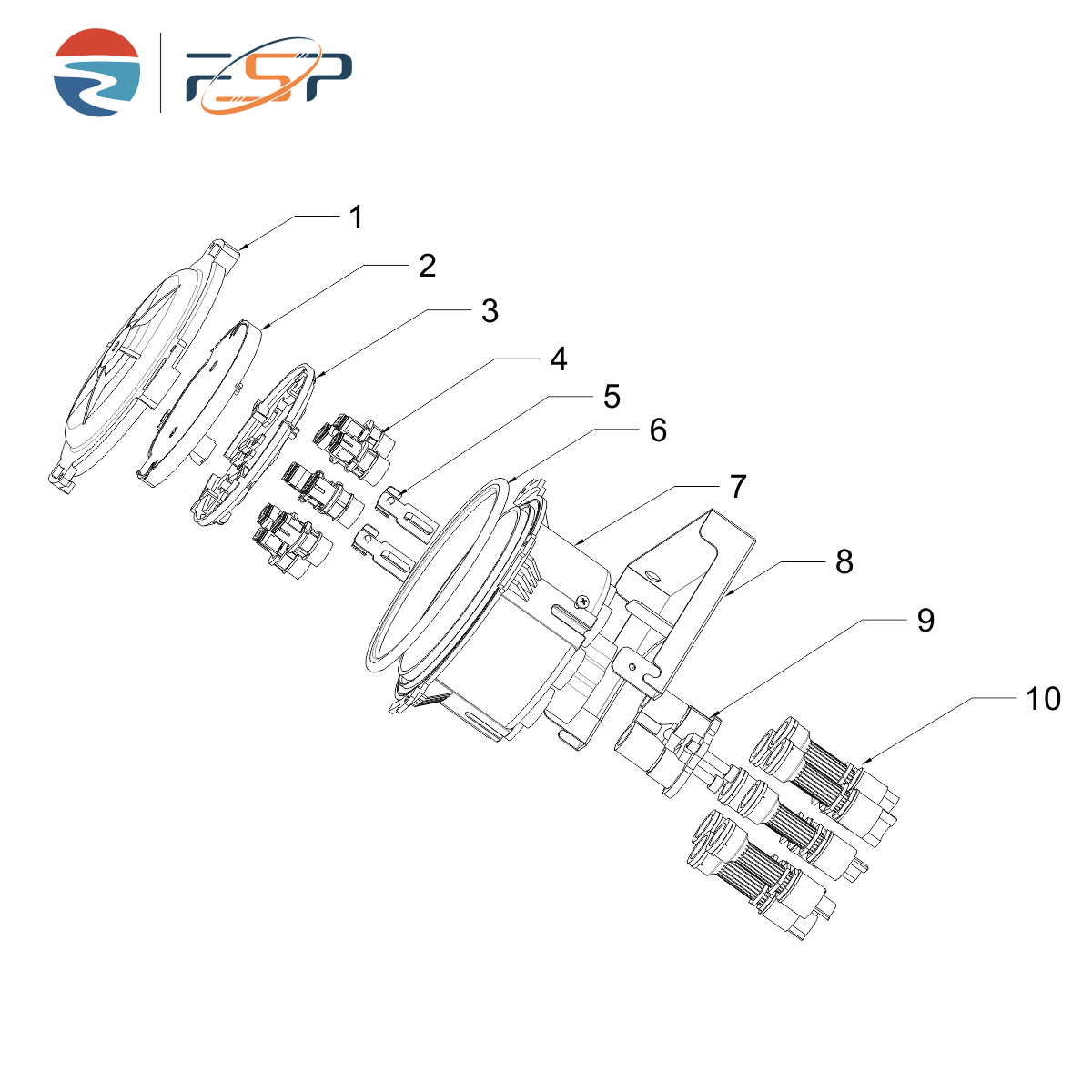

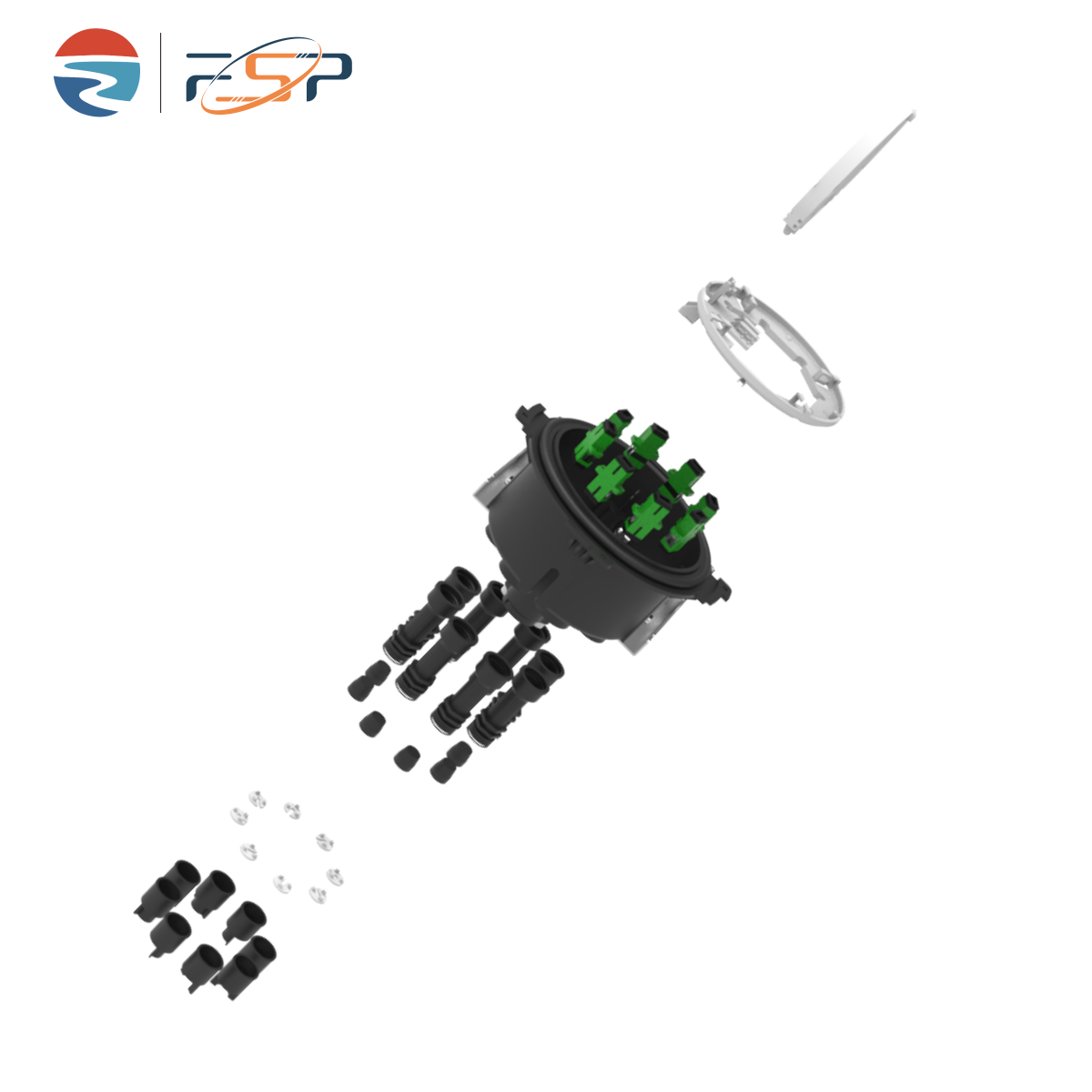

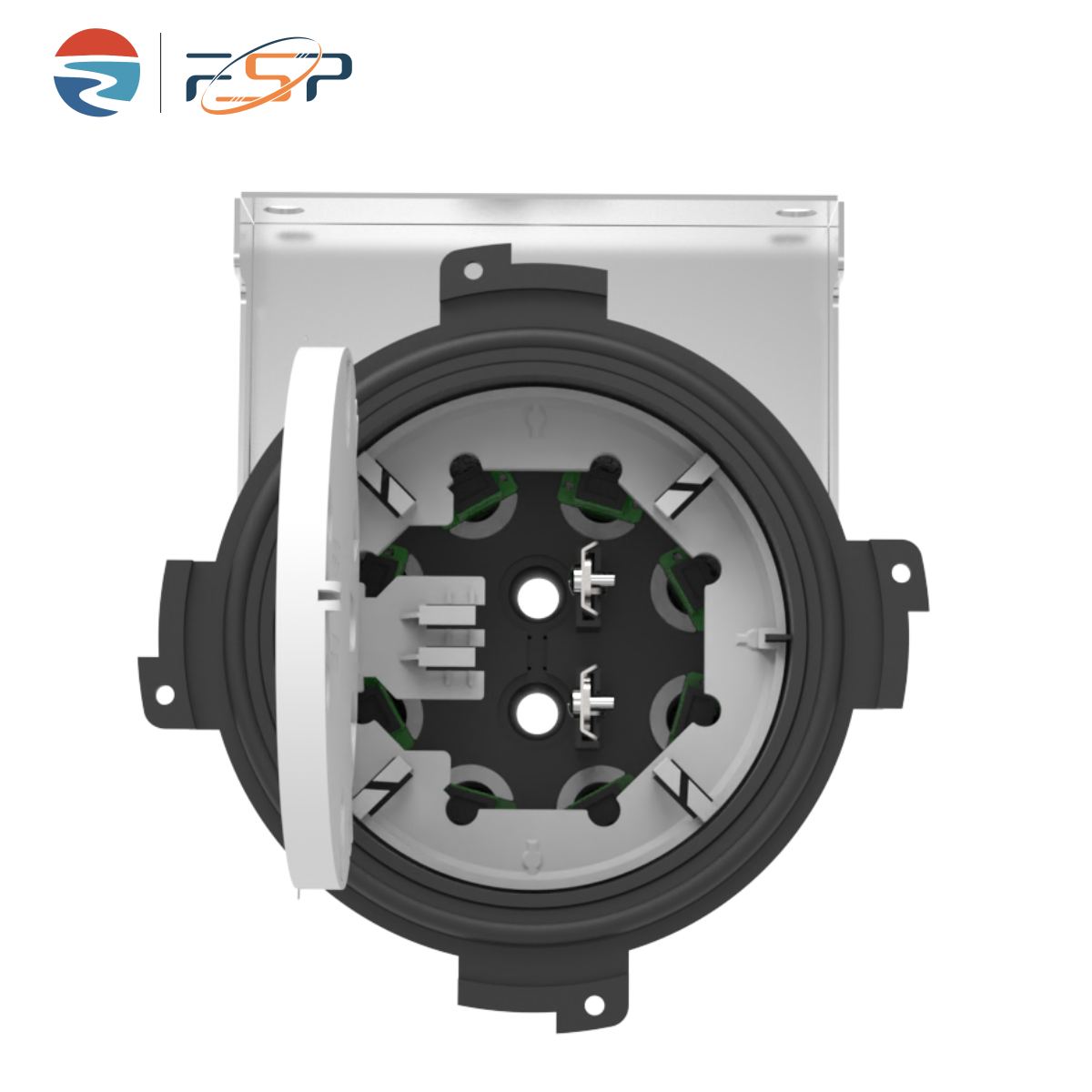

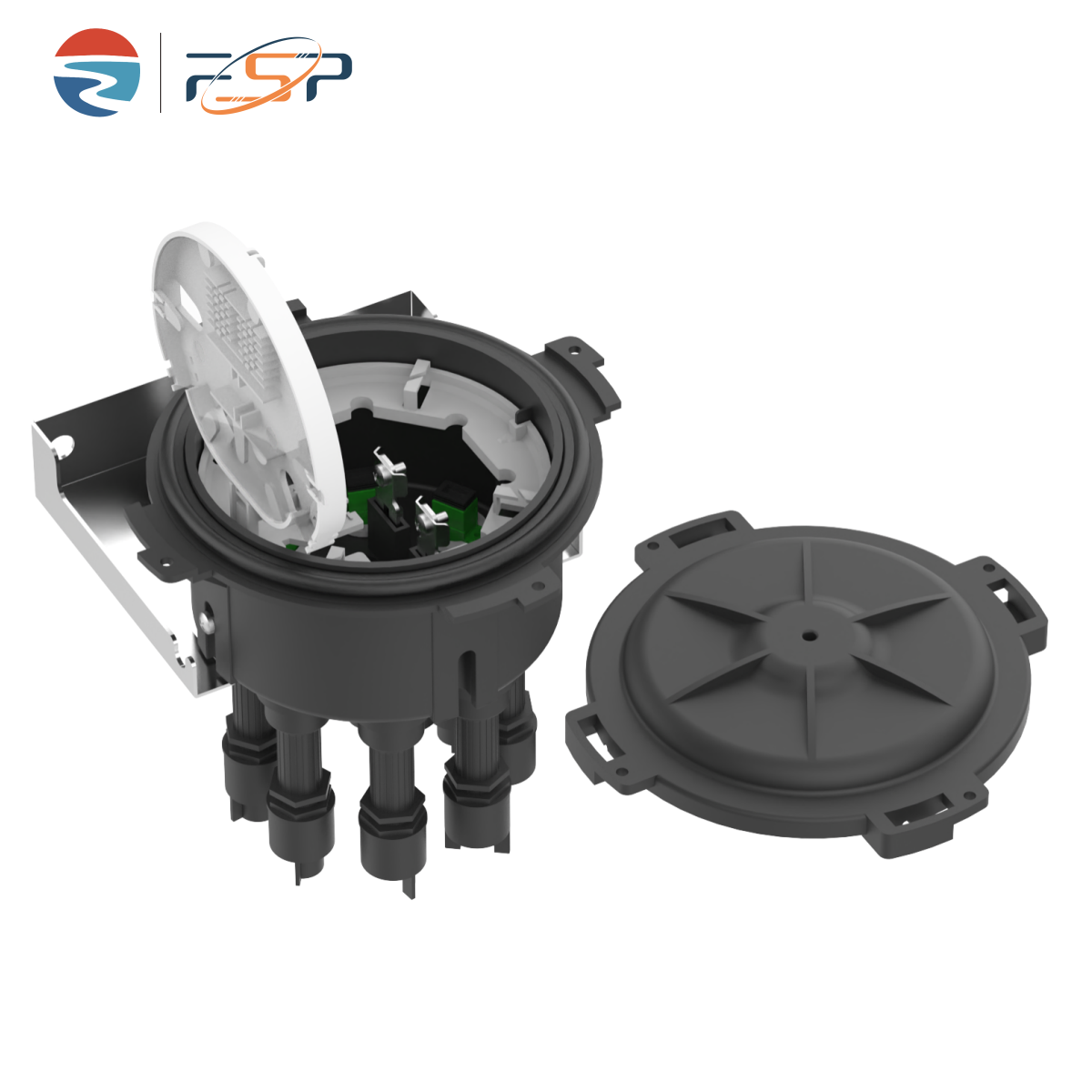

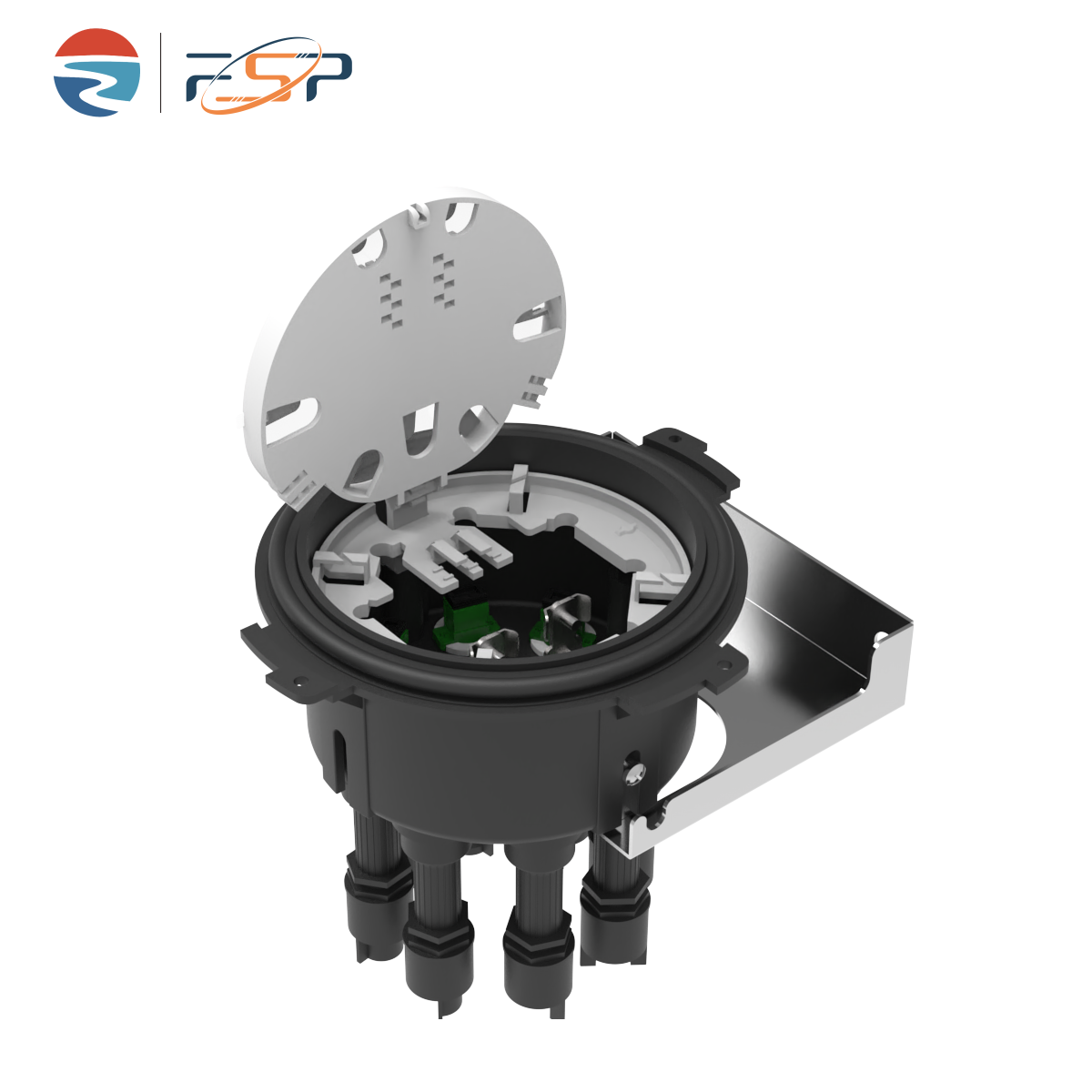

4、Product structure
|
No. |
Name |
Unit |
Qty |
Remark |
|
1 |
Cover |
Pc |
1 |
|
|
2 |
Splice Tray |
Set |
1 |
12 cores,installable 1 pc adaptor(SC) |
|
3 |
Cable Storage |
Pc |
1 |
Installable mini PLC |
|
4 |
Adaptor Module |
Set |
8 |
SC |
|
5 |
Cable Fixing |
Set |
2 |
|
|
6 |
Sealing Ring |
Pc |
1 |
|
|
7 |
Body |
Pc |
1 |
|
|
8 |
Installation Kit |
Set |
1 |
|
|
9 |
Cable Sealing |
Set |
1 |
Uncut |
|
10 |
Drop Cable Shell |
Set |
8 |
Cable section size:2×3 mm |
