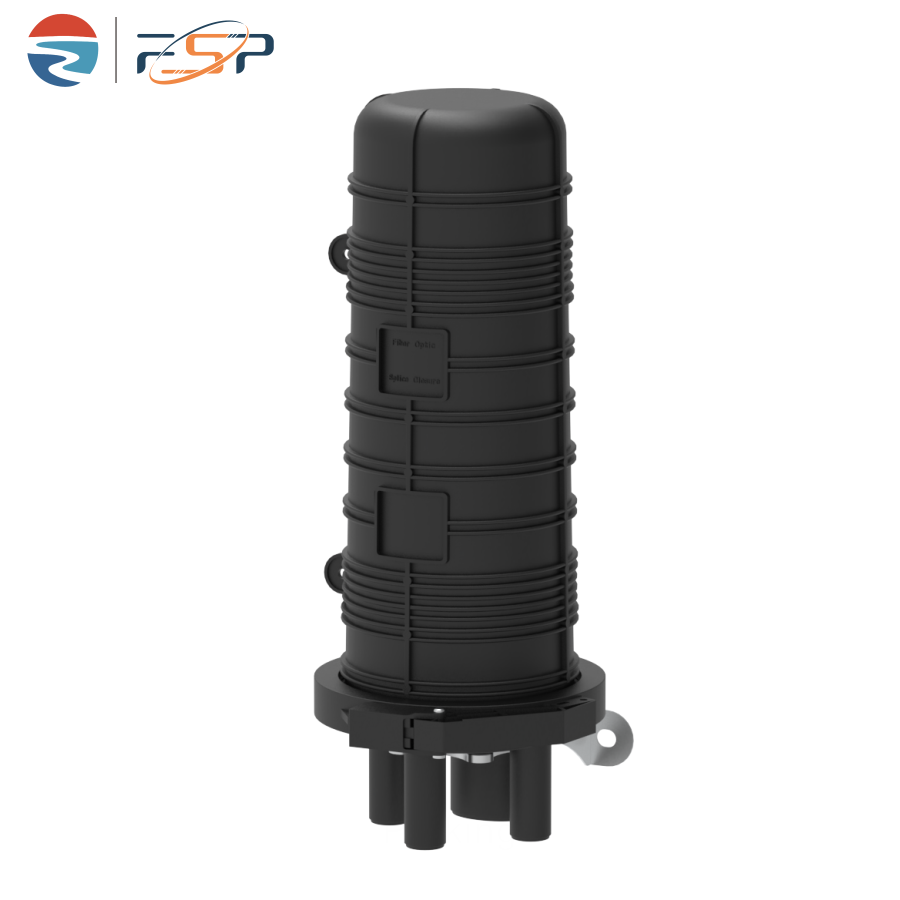

1、Description：
FSP-CD-01H Fiber Optic Splice Closure is heat shrink sealing closure intended for up to 96 cores cable splice. It is designed for use with different cable construction in any environment (duct, aerial, buried and man-hole) and for numerous splice applications as mid-span, branch and direct splice. 24 cores splice trays are available for different cable.
2、Specification：
1) The casing of enclosure is made of PP,which is a kind of high-strength engineering plastic.
2) Reliable cable introducing, fixing, protection, grounding devices. Easy for re-entry and re-open.
3) The base has a variety of ports for different type of cable,the oval port is used for uncute cable.
4) High-strength modified polypropylene material ,Protection grade: IP68.
3、Configuration Table：
|
Model |
FSP-CD-01H |
|
Environment |
Aerial, direct buried, pipelined, wall mounting, manhole |
|
Splice Capacity |
96 Cores |
|
Splice Trays |
12 Pcs |
|
Cable entry ports |
5 Ports (Max Φ20mm, 2 Ports For Uncut Access) |
|
Protection Level |
IP68 |
|
Color |
Black |
|
Body Material |
PP |
|
Dimension |
H × D = 425 × Φ170 mm |

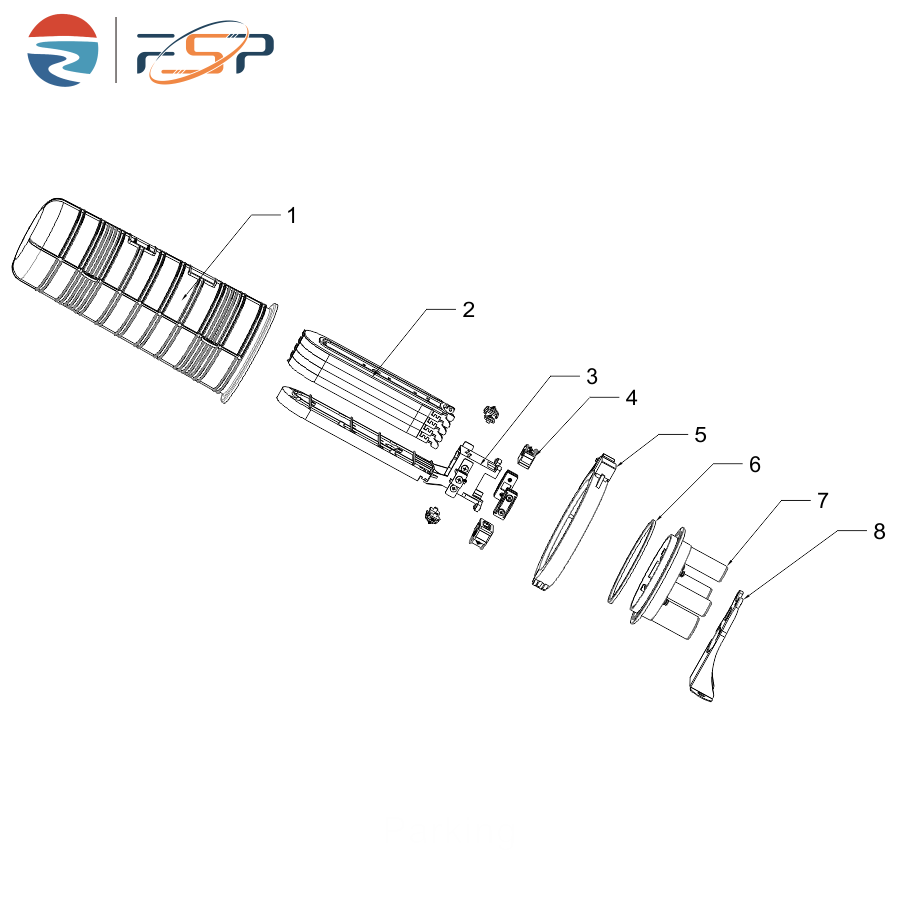

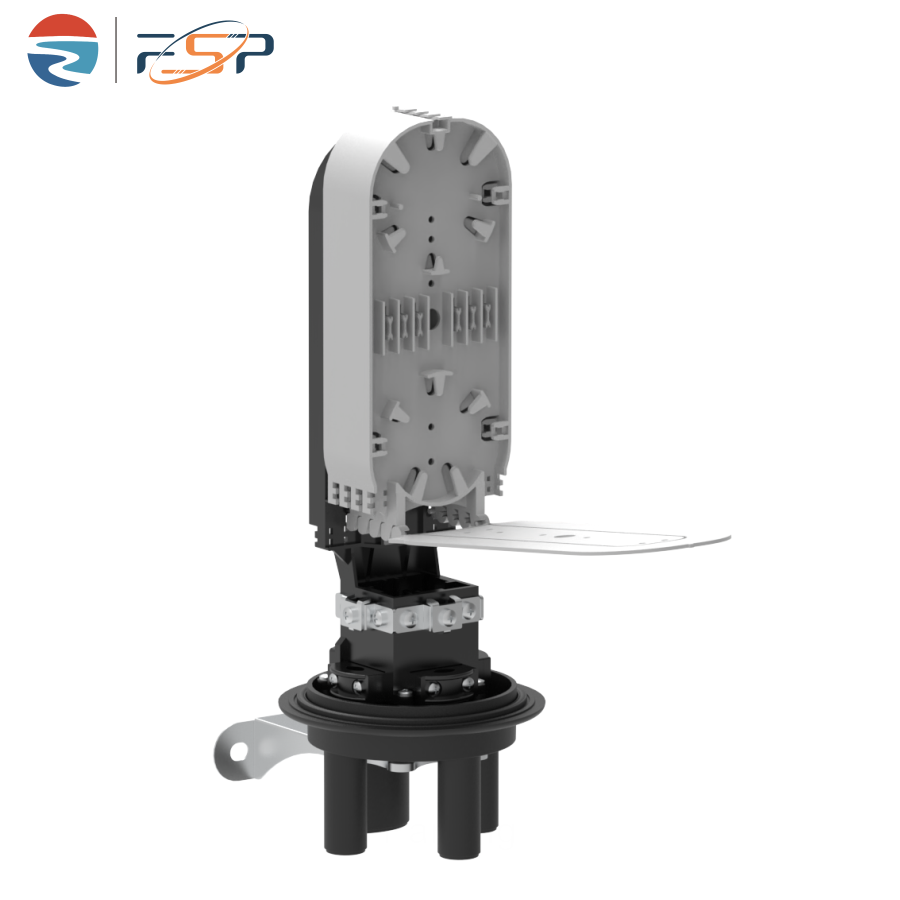

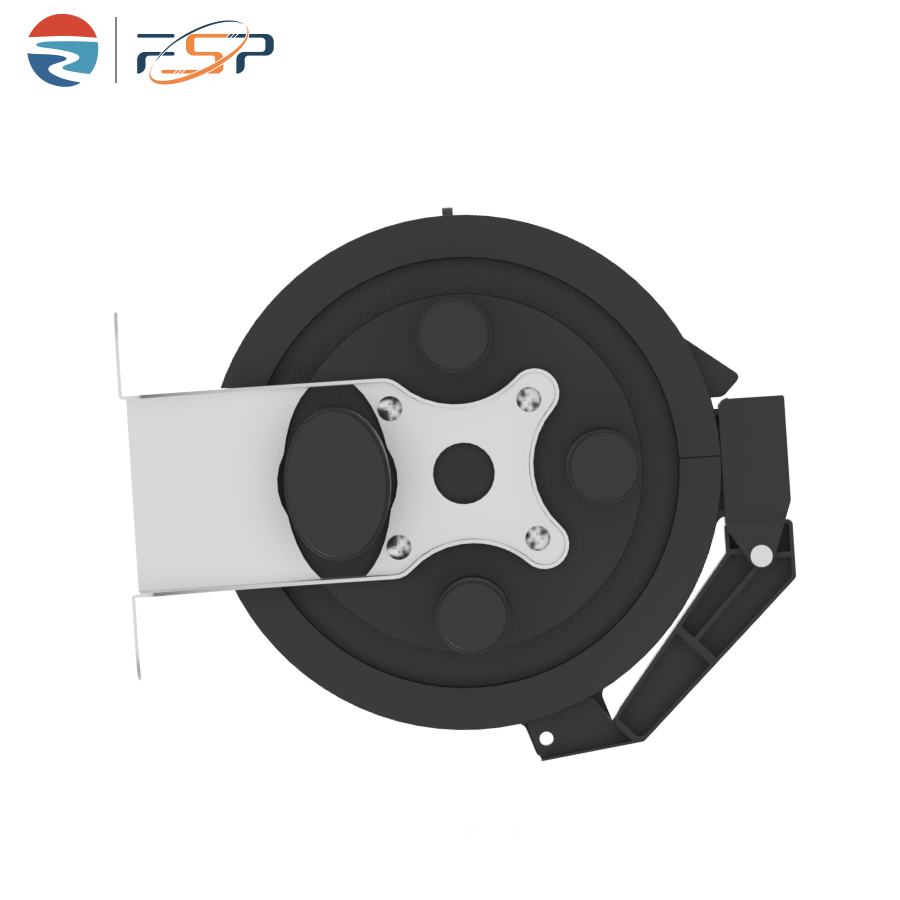

4、Product structure
|
No. |
Name |
Unit |
Qty |
Remark |
|
1 |
Cover |
Pc |
1 |
|
|
2 |
Splice Tray |
Set |
12 |
32 Cores / Tray |
|
3 |
Cable Storage & Bracket |
Pc |
1 |
|
|
4 |
Cable Fixing |
Set |
1 |
5 Ports |
|
5 |
Clamp |
Set |
1 |
|
|
6 |
Sealing Ring |
Pc |
1 |
|
|
7 |
Base |
Pc |
1 |
|
|
8 |
Installation Kit |
Set |
1 |
