Feature:
l Both linnear (mW) and non-linear (dBm)
l User calibration
l Wavelength memory function
Specification:
|
Model |
MAY10A |
MAY10B |
|
|
Measuring Range |
-70 to +10dBm |
-50 to +26dBm |
|
|
Calibrated Wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
||
|
Detector Type |
InGaAs |
||
|
Resolution |
Linear display: 0.1%, logarithmic display:0.01dBm |
||
|
Linearity |
±5% |
||
|
Automatic Shutoff Time |
10min |
||
|
Continuous Working Time |
12h |
||
|
Connector |
Interchangeable FC, SC, ST |
||
|
Tone Detection |
270, 330, 1k, 2kHz |
||
|
Power supply |
3*AA dry batteries or Rechargeable Lithium battery (1500mAh) |
||
|
Backlight |
Yes |
||
|
Dimension |
186*100*50mm |
||
|
Net Weight |
140g |
||
|
Operating Temperature |
-10 to +50℃ |
||
|
Storage Temperature |
-40 to +70℃ |
||
|
Relative Humidity |
0~95% (non-condensing) |
||

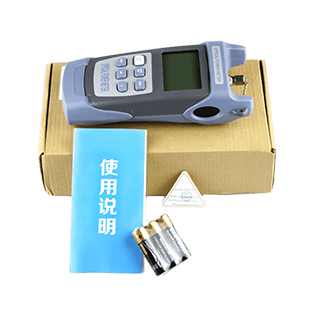

Standard Accessory:
|
Item |
Name |
Quantity |
|
1 |

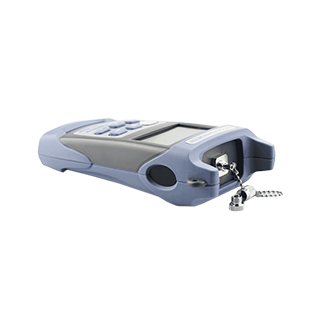

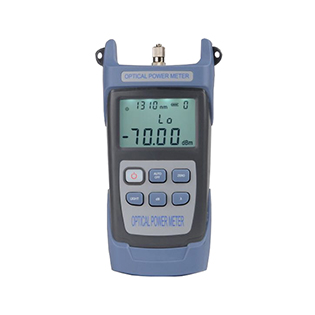

Optical Power Meter |
1pc |
|
2 |
User Manual |
1pc |
|
3 |
AA Dry Batteries |
3pcs (for dry battery model) |
|
4 |
1500mAh Lithium Battery |
1pc (for Lithium battery model) |
|
5 |
Data Line |
1pc (for Lithium Battery model) |
|
6 |

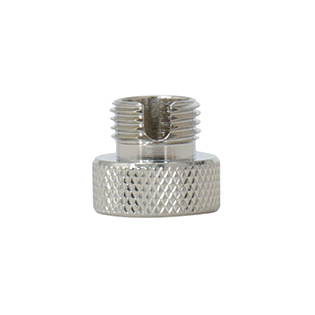

FC Adapter |
1pc |
|
7 |

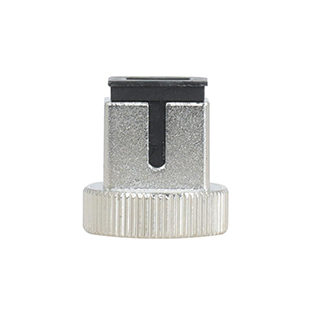

SC Adapter |
1pc |
Optional Accessory:
|
Item |
Name |
Quantity |
|
1 |

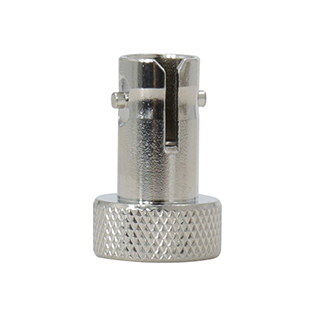

ST Adapter |
1pc |
|
2 |

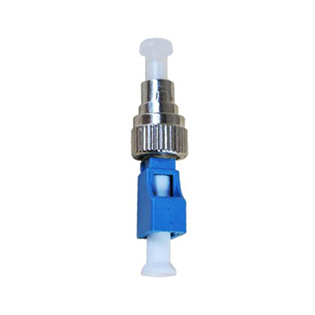

Male FC to female LC adapter for LC connector |
1pc |
|
3 |
AC/DC Power Adapter |
1pc (for Lithium Battery model) |
Ordering Information:
Model: MAY10X-X
|
Model |
X: OPM Range |
X: Battery |
|
MAY10 |
A: -70~+10dBm |
D: Dry Battery |
|
B: -50~+26dBm |
L: Lithium Battery |
