Feature:
l Simultaneous linnear (mW) and non-linear (dBm) display
l Automatic frequency identification
l Threshold setting
l Support 1,000 data storage
l Support USB connection with PC for data transfer
l Support Backlight Level 4
l Support user self-calibration
l Support FC/SC/ST interfaces
l Support USB Power Supply
Specification:
|
Model |
MAY20A |
MAY20B |
|
Measuring Range |
-70 to +10dBm |
-50 to +26dBm |
|
Calibrated Wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
|
Detector Type |
InGaAs |
|
|
Resolution |
Linear display: 0.1%, logarithmic display:0.01dBm |
|
|
Linearity |
±5% |
|
|
Automatic Shutoff Time |
10min |
|
|
Continuous Working Time |
12h |
|
|
Data Storage |
1,000 |
|
|
Connector |
Interchangeable FC, SC, ST |
|
|
Tone Detection |
270, 330, 1k, 2kHz |
|
|
Power supply |
Rechargeable Lithium battery (2400mAh) |
|
|
Backlight |
Yes |
|
|
USB Interface |
Yes |
|
|
Dimension |
186*100*50mm |
|
|
Net Weight |
240g |
|
|
Operating Temperature |
-10 to +50℃ |
|
|
Storage Temperature |
-40 to +70℃ |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
Visual Fault Locator:
|
Wavelength |
650±30nm |
|
Output Power |
10 or 30mW for option |
|
Modulation Frequency |
CW/1Hz/2Hz |
|
Connector |
Universal 2.5mm adapter (FC/SC/ST) |
Standard Accessory:
|
Item |
Name |
Quantity |
|
1 |

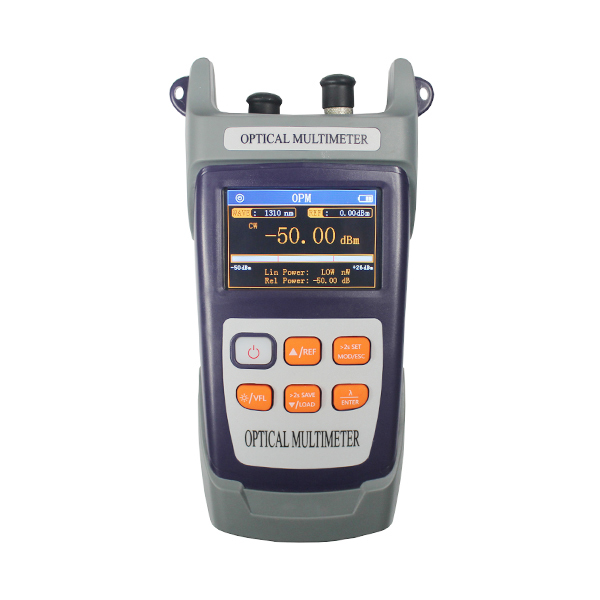

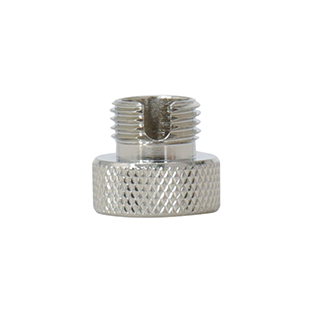

Optical Power Meter with FC Adapter |
1pc |
|
2 |
User Manual |
1pc |
|
3 |
2400mAh Lithium Battery |
1pc |
|
4 |
Data Line |
1pc |
|
5 |

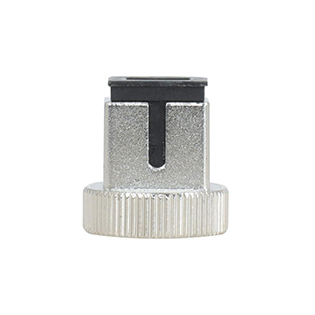

SC Adapter for OPM port |
1pc |
|
6 |
CD with software |
1pc |
|
7 |
Soft Bag |
1pc |
Optional Accessory:
|
Item |
Name |
Quantity |
|
1 |

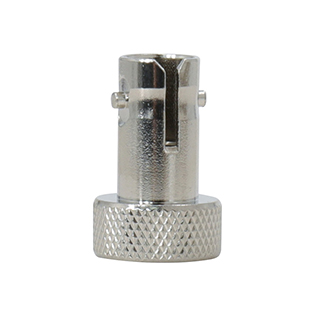

ST Adapter for OPM port |
1pc |
|
2 |

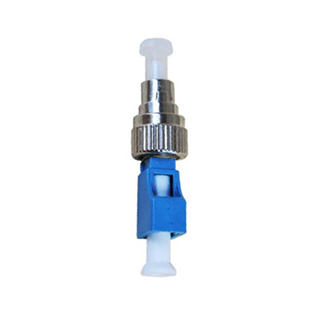

Male FC to female LC adapter for LC connector for OPM port and VFL port |
1pc |
|
3 |
AC/DC Power Adapter |
1pc |
Ordering Information:
Model: MAY20X-X
|
Model |
X: OPM Range |
X: VFL |
|
MAY20 |
A: -70~+10dBm |
10: 10mW |
|
B: -50~+26dBm |
30: 30mW |
